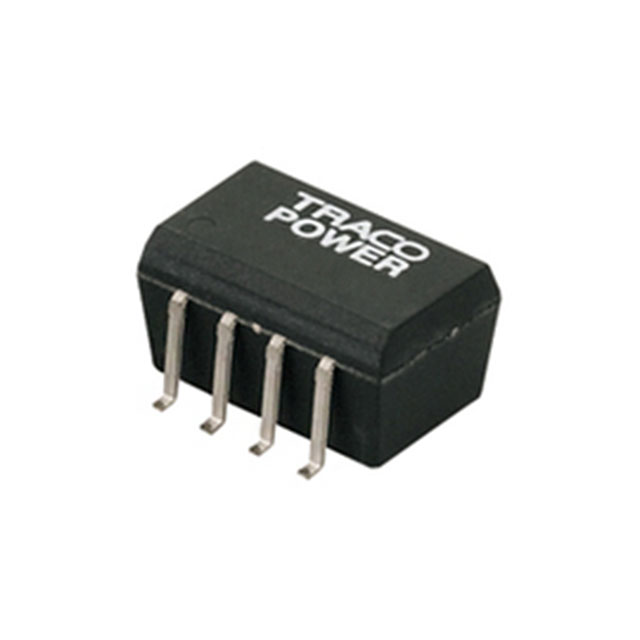

TSM Series

Catalog

ISOLATED DC/DC CONVERTERS - SMD PRODUCT TYPE: DC/DC; PACKAGE STYLE: SMD; OUTPUT POWER (W): 1; INPUT VOLTAGE: 24 VDC +/-10%; OUTPUT 1 (VDC): 15; OUTPUT 2 (VDC): -15; OUTPUT 3 (VDC): N/A

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Efficiency	Type	Power (Watts)	Voltage - Input (Max) [Max]	Voltage - Output 2	Mounting Type	Package / Case	Voltage - Output 1	Applications	Features	Voltage - Isolation	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Number of Outputs	Current - Output (Max)	Current - Output (Max)	Current - Output (Max)
Traco Power TSM 2415D	85 °C	-40 C	21.6 V	30 mA	80 %	Isolated Module	0.9 W	26.4 V	-15 V	Surface Mount	18-SMD Module 10 Leads	15 V	ITE (Commercial)	SCP	1000 V	15.2 mm	0.6 "	0.31 in	8.1 mm	0.32 "	8 mm	2
Traco Power TSM 2405D	85 °C	-40 C	21.6 V		75 %	Isolated Module		26.4 V	-5 V	Surface Mount	18-SMD Module 10 Leads	5 V	ITE (Commercial)	SCP	1000 V	15.2 mm	0.6 "	0.31 in	8.1 mm	0.32 "	8 mm	2	100 mA	100 mA
Traco Power TSM 0512D	85 °C	-40 C	4.5 V		79 %	Isolated Module	960 mW	5.5 V	-12 V	Surface Mount	18-SMD Module 10 Leads	12 V	ITE (Commercial)	SCP	1000 V	15.2 mm	0.6 "	0.31 in	7.1 mm	0.28 "	8 mm	2			40 mA
Traco Power TSM 0505S	85 °C	-40 C	4.5 V	200 mA	80 %	Isolated Module		5.5 V		Surface Mount	14-SMD Module 8 Leads	5 V	ITE (Commercial)	SCP	1000 V	12.7 mm	0.5 "	0.31 in	8.1 mm	0.32 "	8 mm	1
