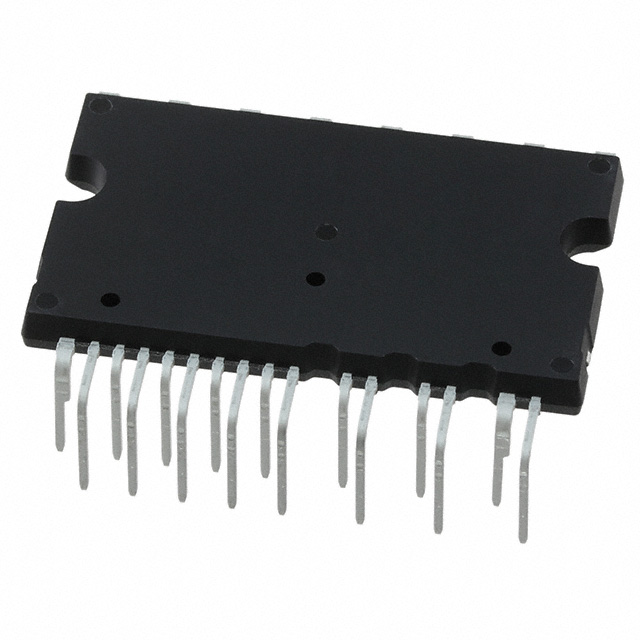

600 V, 30 A CIPOS™ MINI 3 PHASE OPEN EMITTER INTELLIGENT POWER MODULE (IPM) WITH TRENCHSTOP™ IGBT AND BUILT IN NTC IN MDIP-24 DCB PACKAGE.
| Part | Voltage | Type | Mounting Type | Current | Package / Case | Package / Case | Configuration | Voltage - Isolation | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Motor Type - AC, DC | Technology | Function | Current - Output | Output Configuration | Voltage - Load [Max] | Voltage - Load [Min] | Supplier Device Package | Motor Type - Stepper | Voltage - Supply [Min] | Voltage - Supply [Max] | Interface | Grade | Qualification | Program Memory Type [custom] | Program Memory Type [custom] | Number of I/O | RAM Size | Core Processor |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 600 V | IGBT | Through Hole | 30 A | 1.028 " 26.1 mm | 24-PowerDIP Module | 3 Phase | 2000 Vrms | ||||||||||||||||||||||
 INFINEON | Through Hole | 1.028 " 26.1 mm | 24-PowerDIP Module | 125 °C | -40 C | Appliance | Brushless DC (BLDC) | IGBT | Driver - Fully Integrated Control and Power Stage | 12 A | Half Bridge (3) | 450 V | 0 V | 24-DIP | Multiphase | 13 V | 17.5 V | |||||||||||||
 INFINEON | 150 °C | -40 °C | Brushed DC Brushless DC (BLDC) | Power MOSFET | Controller - Commutation Direction Management | Pre-Driver - Half Bridge (3) | 6 V | 45 V | Parallel | Automotive | ||||||||||||||||||||
 INFINEON | 600 V | IGBT | Through Hole | 20 A | 1.028 " 26.1 mm | 24-PowerDIP Module | 3 Phase | 2000 Vrms | ||||||||||||||||||||||
 INFINEON | 600 V | IGBT | Through Hole | 10 A | 1.028 " 26.1 mm | 24-PowerDIP Module | 3 Phase | 2000 Vrms | ||||||||||||||||||||||
 INFINEON | 600 V | IGBT | Through Hole | 4 A | 1.028 " 26.1 mm | 24-PowerDIP Module | 3 Phase | 2000 Vrms | ||||||||||||||||||||||
INFINEON | 600 V | IGBT | Through Hole | 30 A | 1.028 " 26.1 mm | 24-PowerDIP Module | 3 Phase | 2000 Vrms | ||||||||||||||||||||||
 INFINEON | Surface Mount | 48-VFQFN Exposed Pad | 150 °C | -40 C | PG-VQFN-48-31 | 5.5 V | 28 V | LIN SSI UART | Automotive | AEC-Q100 | FLASH | 128 kB | 10 | 6 K | ARM® Cortex®-M3 | |||||||||||||||
 INFINEON | Surface Mount | 48-VQFN Exposed Pad | 150 °C | -40 °C | Brushed DC Brushless DC (BLDC) | Power MOSFET | Controller - Commutation Direction Management | Pre-Driver - Half Bridge (3) | PG-VQFN-48-72 | 6 V | 45 V | PWM | Automotive | |||||||||||||||||
 INFINEON | 600 V | IGBT | Through Hole | 20 A | 1.028 " 26.1 mm | 24-PowerDIP Module | 3 Phase | 2000 Vrms |
