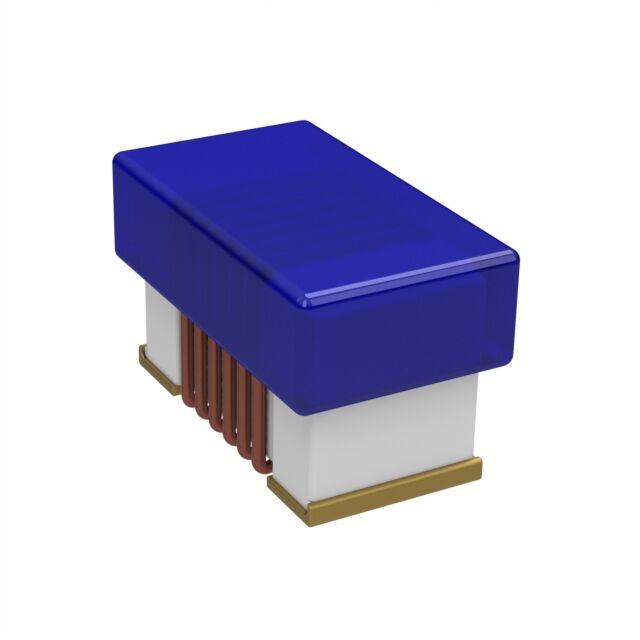

IWC1008 Series

RF Inductors - SMD 1008 68nH 2% 1000mA

Manufacturer: Laird Technologies EMI

Catalog

RF Inductors - SMD 1008 68nH 2% 1000mA

Catalog

RF Inductors - SMD 1008 68nH 2% 1000mA

Part	Operating Temperature [Max]	Operating Temperature [Min]	Material - Core	Inductance Frequency - Test	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Shielding	Inductance	Package / Case	Package / Case	Height - Seated (Max)	Height - Seated (Max) [Max]	Supplier Device Package	DC Resistance (DCR) [Max]	Type	Mounting Type	Tolerance	Q @ Freq	Current Rating (Amps)	Frequency - Self Resonant	Q @ Freq [custom]	Q @ Freq [custom]	DC Resistance (DCR)
Laird Technologies EMI IWC1008J82NR-3G	125 °C	-40 C	Ceramic	50 MHz	2.92 mm	2.7 mm	0.106 in	0.115 "	Unshielded	82 nH	2520 Metric	1008	2.23 mm	0.088 in	1008	220 mOhm	Wirewound	Surface Mount	2 %	60 350 MHz	1 A	1 GHz
Laird Technologies EMI IWC1008DR33R-3G	125 °C	-40 C	Ceramic	25 MHz	2.92 mm	2.7 mm	0.106 in	0.115 "	Unshielded	330 nH	2520 Metric	1008	2.23 mm	0.088 in	1008	1.05 Ohm	Wirewound	Surface Mount	2 %	45 100 MHz	0.45 A	570 MHz
Laird Technologies EMI IWC1008FR10R-3G	125 °C	-40 C	Ceramic	25 MHz	2.92 mm	2.7 mm	0.106 in	0.115 "	Unshielded	100 nH	2520 Metric	1008	2.23 mm	0.088 in	1008	560 mOhm	Wirewound	Surface Mount	2 %	60 350 MHz	650 mA	1 GHz
Laird Technologies EMI IWC1008C1R0R-3G	125 °C	-40 C	Ceramic	25 MHz	2.92 mm	2.7 mm	0.106 in	0.115 "	Unshielded	1 µH	2520 Metric	1008	2.23 mm	0.088 in	1008	1.75 Ohm	Wirewound	Surface Mount	2 %		0.37 A	290 MHz	35	50 MHz
Laird Technologies EMI IWC1008J27NR-3G	125 °C	-40 C	Ceramic	50 MHz	2.92 mm	2.7 mm	0.106 in	0.115 "	Unshielded	27 nH	2520 Metric	1008	2.23 mm	0.088 in	1008		Wirewound	Surface Mount	2 %	55 350 MHz	1 A	1.6 GHz			130 mOhm
Laird Technologies EMI IWC1008J22NR-3G	125 °C	-40 C	Ceramic	50 MHz	2.92 mm	2.7 mm	0.106 in	0.115 "	Unshielded	22 nH	2520 Metric	1008	2.23 mm	0.088 in	1008	120 mOhm	Wirewound	Surface Mount	2 %	55 350 MHz	1 A	2.4 GHz
Laird Technologies EMI IWC1008J18NR-3G	125 °C	-40 C	Ceramic	50 MHz	2.92 mm	2.7 mm	0.106 in	0.115 "	Unshielded	18 nH	2520 Metric	1008	2.23 mm	0.088 in	1008		Wirewound	Surface Mount	2 %	50	1 A	2.5 GHz			110 mOhm
Laird Technologies EMI IWC1008FR12R-3G	125 °C	-40 C	Ceramic	25 MHz	2.92 mm	2.7 mm	0.106 in	0.115 "	Unshielded	120 nH	2520 Metric	1008	2.23 mm	0.088 in	1008	630 mOhm	Wirewound	Surface Mount	2 %	60 350 MHz	650 mA	950 MHz
Laird Technologies EMI IWC1008J68NR-3G	125 °C	-40 C	Ceramic	50 MHz	2.92 mm	2.7 mm	0.106 in	0.115 "	Unshielded	68 nH	2520 Metric	1008	2.23 mm	0.088 in	1008		Wirewound	Surface Mount	2 %	65 350 MHz	1 A	1.3 GHz			200 mOhm
Laird Technologies EMI IWC1008DR82R-3G	125 °C	-40 C	Ceramic	25 MHz	2.92 mm	2.7 mm	0.106 in	0.115 "	Unshielded	820 nH	2520 Metric	1008	2.23 mm	0.088 in	1008	1.61 Ohm	Wirewound	Surface Mount	2 %	45 100 MHz	400 mA	350 MHz
