A3B-6PA Series

Catalog

CONN HEADER VERT 6POS 2MM

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Mated Stacking Heights [z]	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Contact Shape	Number of Rows [custom]	Material Flammability Rating	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Length - Mating	Contact Length - Mating	Insulation Color	Contact Finish - Mating	Contact Type	Connector Type	Style	Mounting Type	Number of Positions	Fastening Type	Overall Contact Length	Overall Contact Length	Pitch - Mating	Pitch - Mating	Row Spacing - Mating	Row Spacing - Mating	Insulation Height	Insulation Height	Voltage Rating	Contact Material	Insulation Material	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height [z]	Insulation Height [z]
Hirose Electric Co Ltd A3B-6PA-2DSA	78.7 µin	2 µm	6 mm 8.8 mm	Tin	2.6 mm	0.102 in	Flash	Square	2	UL94 V-0	All	-55 C	85 °C	Solder	3.5 mm	0.138 in	Black	Gold	Male Pin	Header	Board to Board Cable	Through Hole	6	Push-Pull	7.9 mm	0.311 in	0.079 "	2 mm	2 mm	0.079 in	1.8 mm	0.071 in	200 VAC	Brass	Nylon Polyamide (PA)	Unshrouded
Hirose Electric Co Ltd A3B-6PA-2DSA(71)	78.7 µin	2 µm	6 mm 8.8 mm	Tin	2.6 mm	0.102 in	Flash	Square	2	UL94 V-0	All	-55 C	85 °C	Solder	3.5 mm	0.138 in	Black	Gold	Male Pin	Header	Board to Board Cable	Through Hole	6	Push-Pull	7.9 mm	0.311 in	0.079 "	2 mm	2 mm	0.079 in	1.8 mm	0.071 in	200 VAC	Brass	Nylon Polyamide (PA)	Unshrouded
Hirose Electric Co Ltd A3B-6PA-2DS(72)				Tin	2.6 mm	0.102 in		Square	2	UL94 V-0	All	-55 C	85 °C	Kinked Pin Solder	3.5 mm	0.138 in	Black	Gold	Male Pin	Header	Board to Board Cable	Right Angle Through Hole	6	Push-Pull			0.079 "	2 mm	2 mm	0.079 in			200 VAC	Brass	Nylon Polyamide (PA)	Unshrouded	8 µin	0.203 µm	4 mm	0.157 in
Hirose Electric Co Ltd A3B-6PA-2DS(51)					2.6 mm	0.102 in		Square	2	UL94 V-0	All	-55 C	85 °C	Kinked Pin Solder	3.5 mm	0.138 in	Black	Gold	Male Pin	Header	Board to Board Cable	Right Angle Through Hole	6	Push-Pull			0.079 "	2 mm	2 mm	0.079 in			200 VAC	Brass	Nylon Polyamide (PA)	Unshrouded			4 mm	0.157 in
Hirose Electric Co Ltd A3B-6PA-2DS(71)				Tin	2.6 mm	0.102 in	Flash	Square	2	UL94 V-0	All	-55 C	85 °C	Kinked Pin Solder	3.5 mm	0.138 in	Black	Gold	Male Pin	Header	Board to Board Cable	Right Angle Through Hole	6	Push-Pull			0.079 "	2 mm	2 mm	0.079 in			200 VAC	Brass	Nylon Polyamide (PA)	Unshrouded			4 mm	0.157 in

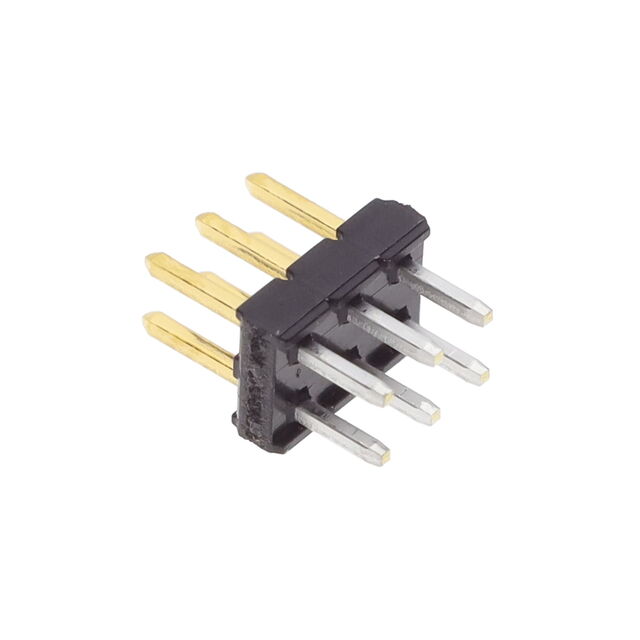

Hirose Electric Co Ltd A3B-6PA-2DSA(51)					2.6 mm	0.102 in		Square	2	UL94 V-0	All	-55 C	85 °C	Solder	3.5 mm	0.138 in	Black	Gold	Male Pin	Header	Board to Board Cable	Through Hole	6	Push-Pull	7.9 mm	0.311 in	0.079 "	2 mm	2 mm	0.079 in	1.8 mm	0.071 in	200 VAC	Brass	Nylon Polyamide (PA)	Unshrouded
