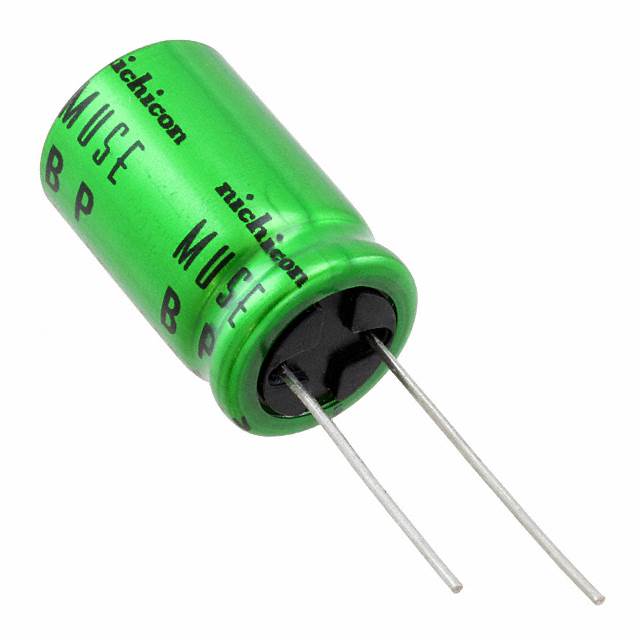

UES Series

Manufacturer: Nichicon

Catalog

ELECTROLYTIC CAPACITOR, BI-POLAR, 100 ΜF, 10 V, ± 20%, 10000 HOURS @ 105°C, BI-POLAR [NON-POLAR]

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Min]	Lifetime @ Temp.	Capacitance	Polarization	Package / Case	Applications	Mounting Type	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Nichicon UES1A101MPM	0.394 in	10 mm	10 V	85 °C	-40 C	1000 Hrs	100 µF	Bi-Polar	Can Radial	Audio	Through Hole	0.197 "	5 mm	14 mm	0.551 in	20 %
Nichicon UES1V101MPM1TD	0.394 in	10 mm	35 V	85 °C	-40 C	1000 Hrs	100 µF	Bi-Polar	Can Radial	Audio	Through Hole	0.197 "	5 mm	21.5 mm	0.846 "	20 %
Nichicon UES1C221MPM	0.394 in	10 mm	16 V	85 °C	-40 C	1000 Hrs	220 µF	Bi-Polar	Can Radial	Audio	Through Hole	0.197 "	5 mm	21.5 mm	0.846 "	20 %
Nichicon UES1E331MHM	0.492 in	12.5 mm	25 VDC	85 °C	-40 C	1000 Hrs	330 µF	Bi-Polar	Can Radial	Audio	Through Hole	0.197 "	5 mm			20 %	26.5 mm	1.043 in
Nichicon UES1A102MHM1TN	0.63 in	16 mm	10 V	85 °C	-40 C	1000 Hrs	1000 µF	Bi-Polar	Can Radial	Audio	Through Hole	0.295 in	7.5 mm			20 %	26.5 mm	1.043 in
Nichicon UES1V330MPM	0.394 in	10 mm	35 V	85 °C	-40 C	1000 Hrs	33 ÁF	Bi-Polar	Can Radial	Audio	Through Hole	0.197 "	5 mm	14 mm	0.551 in	20 %
