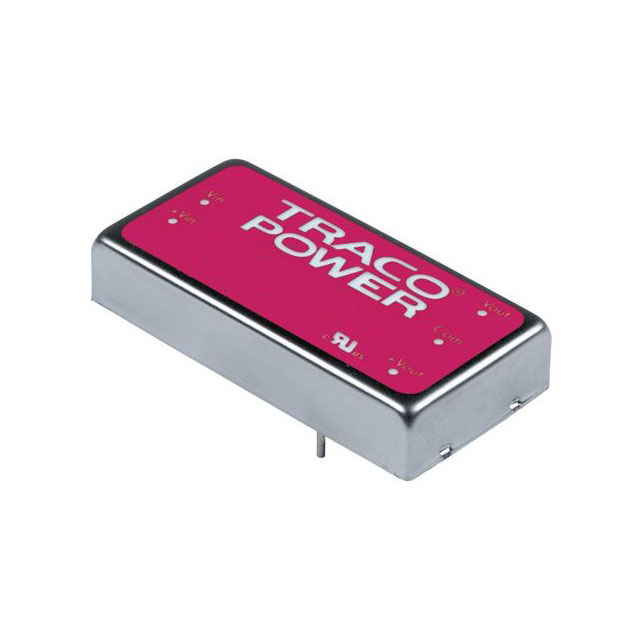

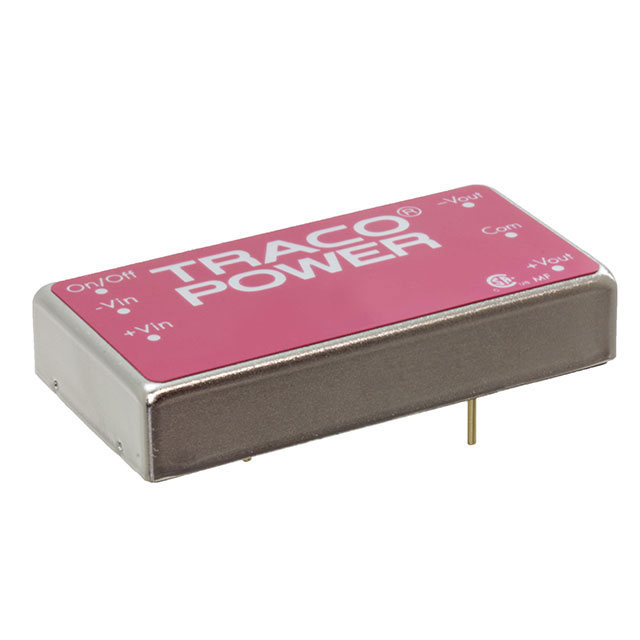

TEN 15 Series

Catalog

DC DC CONVERTER 3.3V 10W

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Package / Case	Efficiency	Voltage - Isolation	Voltage - Input (Max) [Max]	Features	Type	Applications	Size / Dimension	Mounting Type	Current - Output (Max) [Max]	Power (Watts)	Voltage - Output 1	Voltage - Input (Min) [Min]	Current - Output (Max)	Voltage - Output 2
Traco Power TEN 15-2410WI	-40 °C	85 °C	1	6-DIP Module 5 Leads	78 %	1.5 kV	36 V	Remote On/Off SCP	Isolated Module	ITE (Commercial)	0.4 in 10.2 mm 25.4 mm 50.8 mm	Through Hole	3 A	10 W	3.3 V	9 V
Traco Power TEN 15-4811	-40 °C	85 °C	1	5-DIP Module 4 Leads	83 %	1.6 kV	75 V	OCP OVP SCP	Isolated Module	ITE (Commercial)	0.4 in 10.2 mm 25.4 mm 50.8 mm	Through Hole	3 A	15 W	5 V	36 V
Traco Power TEN 15-4823	-40 °C	85 °C	2	5-DIP Module	87 %	1.6 kV	75 V	OCP OVP SCP	Isolated Module	ITE (Commercial)	0.4 in 10.2 mm 25.4 mm 50.8 mm	Through Hole		15 W	15 V	36 V	500 mA	-15 V
Traco Power TEN 15-4810WI	-40 °C	85 °C	1	6-DIP Module 5 Leads	78 %	1.5 kV	75 V	Remote On/Off SCP	Isolated Module	ITE (Commercial)	0.4 in 10.2 mm 25.4 mm 50.8 mm	Through Hole	3 A	10 W	3.3 V	18 V
Traco Power TEN 15-1210	-40 °C	85 °C	1	5-DIP Module 4 Leads	79 %	1.6 kV	18 V	OCP OVP SCP	Isolated Module	ITE (Commercial)	0.4 in 10.2 mm 25.4 mm 50.8 mm	Through Hole	4 A	13 W	3.3 V	9 V
Traco Power TEN 15-2413	-40 °C	85 °C	1	5-DIP Module 4 Leads	85 %	1.6 kV	36 V	OCP OVP SCP	Isolated Module	ITE (Commercial)	0.4 in 10.2 mm 25.4 mm 50.8 mm	Through Hole	1 A	15 W	15 V	18 V
