FDMC8327L Series

N-Channel PowerTrench® MOSFET 40V, 14A, 9.7mΩ

Catalog

N-Channel PowerTrench® MOSFET 40V, 14A, 9.7mΩ

Part	FET Type	Mounting Type	Rds On (Max) @ Id, Vgs	Drain to Source Voltage (Vdss)	Power Dissipation (Max)	Technology	Vgs(th) (Max) @ Id	Current - Continuous Drain (Id) @ 25°C	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Vgs (Max)	Gate Charge (Qg) (Max) @ Vgs [Max]	Drive Voltage (Max Rds On, Min Rds On)	Supplier Device Package	Input Capacitance (Ciss) (Max) @ Vds

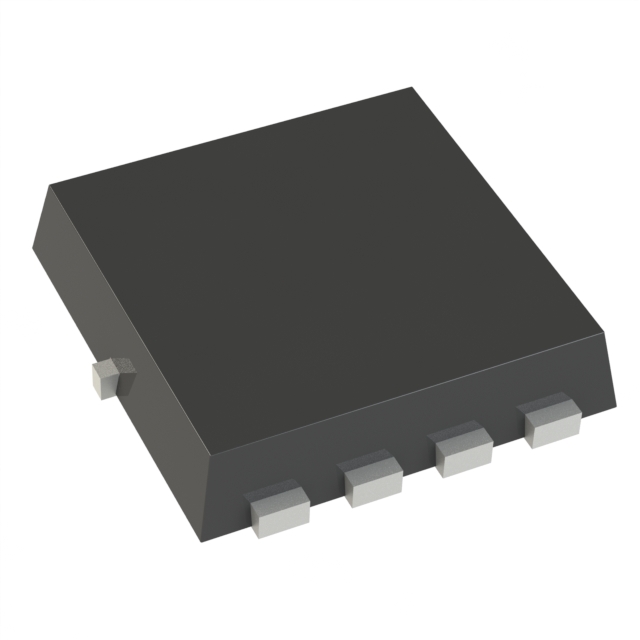

ON Semiconductor FDMC8327L-L701	N-Channel	Surface Mount	9.7 mOhm	40 V	2.3 W 30 W	MOSFET (Metal Oxide)	3 V	12 A 14 A	-55 °C	150 °C	8-PowerWDFN	20 V	26 nC	4.5 V 10 V	8-MLP (3.3x3.3)	1850 pF
ON Semiconductor FDMC8327L	N-Channel	Surface Mount	9.7 mOhm	40 V	2.3 W 30 W	MOSFET (Metal Oxide)	3 V	12 A 14 A	-55 °C	150 °C	8-PowerWDFN	20 V	26 nC	4.5 V 10 V	8-MLP (3.3x3.3)	1850 pF
ON Semiconductor FDMC8327L	N-Channel	Surface Mount	9.7 mOhm	40 V	2.3 W 30 W	MOSFET (Metal Oxide)	3 V	12 A 14 A	-55 °C	150 °C	8-PowerWDFN	20 V	26 nC	4.5 V 10 V	8-MLP (3.3x3.3)	1850 pF

Catalog

N-Channel PowerTrench® MOSFET 40V, 14A, 9.7mΩ

Key Features

• Max rDS(on)= 9.7 mΩ at VGS= 10 V, ID= 12 A

• Max rDS(on)= 12.5 mΩ at VGS= 4.5 V, ID= 10 A

• Low Profile - 0.8mm max in Power 33

• 100% UIL test

• RoHS Compliant

Description

This N-Channel MOSFET is produced using an advanced Power Trench®process that has been especially tailored to minimize the on-state resistance and yet maintain superior switching performance.
