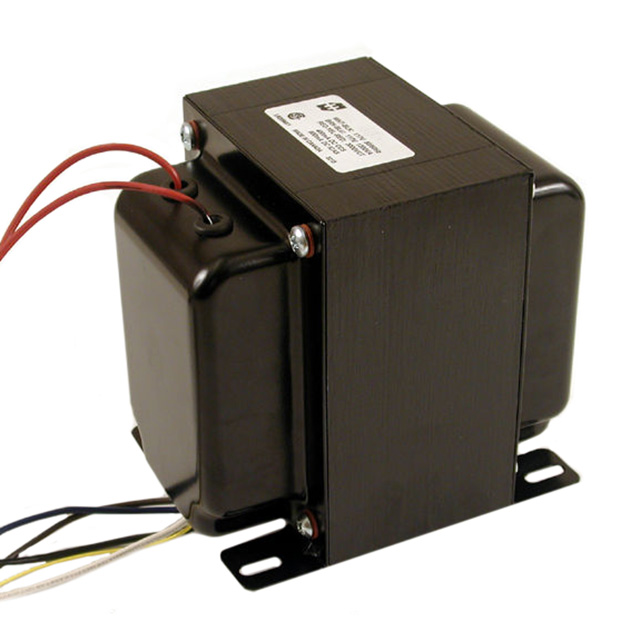

700 Series
Manufacturer: Hammond Manufacturing
Beta
⌘K
POWER TRANSFORMERS TRANSFORMER, HIGH VOLTAGE, 370VA, 117/234 VAC TO 1,250V C.T. @ 300MA.
| Part | Center Tap | Primary Winding(s) | Weight | Weight | Type | Voltage - Secondary (Full Load) | Power - Max [Max] | Termination Style | Secondary Winding(s) | Size / Dimension [x] | Size / Dimension [y] | Height - Seated (Max) [Max] [z] | Current - Output (Max) [Max] | Mounting Type | Voltage - Primary |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hammond Manufacturing | Single | 12 lbs | 5.4 kg | Laminated Core | 1250 V | 370 VA | Wire Leads | Single | 136.65 mm | 3.75 " | 114.3 mm | 0.3 A | Chassis Mount | 117 V 234 V |
