SMA Series
RF Connectors / Coaxial Connectors SMA PANEL FEED THRU JACK RECPT
Manufacturer: Hirose Electric Co Ltd
Catalog
RF Connectors / Coaxial Connectors SMA PANEL FEED THRU JACK RECPT
Beta
⌘K
RF Connectors / Coaxial Connectors SMA PANEL FEED THRU JACK RECPT
RF Connectors / Coaxial Connectors SMA PANEL FEED THRU JACK RECPT
RF Connectors / Coaxial Connectors SMA PANEL FEED THRU JACK RECPT
| Part | 1st Connector Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | 2nd Connector | 2nd Contact Gender | Length | Length | Frequency - Max [Max] | Overall Impedance | 2nd Connector Mounting Type | 1st Contact Gender | Color | 1st Connector |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

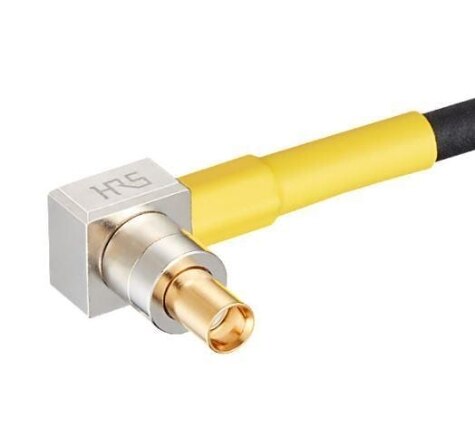

 Hirose Electric Co Ltd | Free Hanging (In-Line) Right Angle | 85 °C | -40 C | SMA Jack | Female | 3.937 in | 100 mm | 6000 MHz | 50 Ohms | Free Hanging (In-Line) | Male | Yellow | KMS-560-LP Plug Right Angle |
