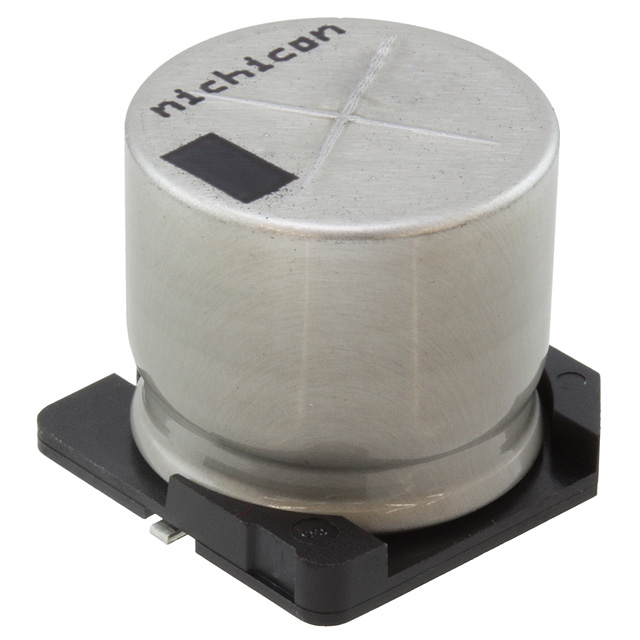

UUJ Series

Manufacturer: Nichicon

Catalog

ALUMINUM ELECTROLYTIC CAPACITOR AUTOMOTIVE AEC-Q200

Part	Package / Case	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Size / Dimension [diameter]	Size / Dimension [diameter]	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [x]	Polarization	Capacitance	Mounting Type	Voltage - Rated	Lifetime @ Temp.	Ripple Current @ High Frequency	Ratings	Ripple Current @ Low Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [z]
Nichicon UUJ1H471MNJ1MS	Radial Can - SMD	20 %	17.5 mm	0.689 in	-55 C	105 ░C	General Purpose	0.709 in	18 mm	0.752 "	19.1 mm	0.752 "	19.1 mm	Polar	470 µF	Surface Mount	50 VDC	5000 Hrs	825 mA	AEC-Q200
Nichicon UUJ2A221MNQ6MS	Radial Can - SMD	20 %			-55 C	105 ░C	General Purpose	0.63 in	16 mm	0.673 in	17.1 mm	0.673 in	17.1 mm	Polar	220 µF	Surface Mount	100 V	5000 Hrs	660 mA		440 mA	0.886 in	22.5 mm
Nichicon UUJ1V471MNQ6MS	Radial Can - SMD	20 %			-55 C	105 ░C	General Purpose	0.492 in	12.5 mm	0.535 in	13.6 mm	0.535 in	13.6 mm	Polar	470 µF	Surface Mount	35 V	5000 Hrs			490 mA			0.866 in	22 mm
Nichicon UUJ1H221MNJ1MS	Radial Can - SMD	20 %			-55 C	105 ░C	General Purpose	0.492 in	12.5 mm	0.535 in	13.6 mm	0.535 in	13.6 mm	Polar	220 µF	Surface Mount	50 VDC	5000 Hrs		AEC-Q200	320 mA		17 mm			0.669 "
Nichicon UUJ1C222MNJ1MS	Radial Can - SMD	20 %	17.5 mm	0.689 in	-55 C	105 ░C	General Purpose	0.709 in	18 mm	0.752 "	19.1 mm	0.752 "	19.1 mm	Polar	2200 µF	Surface Mount	16 V	5000 Hrs	1.0695 A	AEC-Q200	930 mA
Nichicon UUJ2A680MNQ3MS	Radial Can - SMD	20 %			-55 C	105 ░C	General Purpose	0.492 in	12.5 mm	0.535 in	13.6 mm	0.535 in	13.6 mm	Polar	68 µF	Surface Mount	100 V	5000 Hrs					17 mm			0.669 "
Nichicon UUJ1A332MNQ1MS	Radial Can - SMD	20 %	17.5 mm	0.689 in	-55 C	105 ░C	Automotive	0.709 in	18 mm	0.752 "	19.1 mm	0.752 "	19.1 mm		3.3 mF	Surface Mount	10 V	5000 Hrs	1.15 A	AEC-Q200	1 A
Nichicon UUJ1V222MRQ1MS	Radial Can - SMD	20 %			-55 C	105 ░C	General Purpose	0.787 "	20 mm	0.831 in	21.1 mm	0.831 in	21.1 mm	Polar	2200 µF	Surface Mount	35 V	5000 Hrs	1.3225 A		1.15 A	0.886 in	22.5 mm
Nichicon UUJ2W100MNJ1MS	Radial Can - SMD	20 %			-40 C	105 ░C	General Purpose	0.63 in	16 mm	0.673 in	17.1 mm	0.673 in	17.1 mm	Polar	10 µF	Surface Mount	450 V	5000 Hrs	136 mA	AEC-Q200	85 mA		17 mm			0.669 "
Nichicon UUJ2A680MNQ1MS	Radial Can - SMD	20 %			-55 C	105 ░C	General Purpose	0.492 in	12.5 mm	0.535 in	13.6 mm	0.535 in	13.6 mm	Polar	68 µF	Surface Mount	100 V	5000 Hrs	410 mA		205 mA		17 mm			0.669 "
