1N1190 Series

Rectifier Diode Switching 2-Pin 600V, 35A DO-5 Tray

Manufacturer: Microchip Technology

Catalog

Rectifier Diode Switching 2-Pin 600V, 35A DO-5 Tray

Description

AI

undefined

Catalog

Rectifier Diode Switching 2-Pin 600V, 35A DO-5 Tray

Part	Qualification	Speed - Fast Recovery (Maximum)	Speed - Fast Recovery (Minimum)	Grade	Package Name	Technology	Package / Case	Voltage - Forward (Vf) (Max)	Current - Average Rectified (Io)	Mounting Type	Operating Temperature - Junction (Max)	Operating Temperature - Junction (Min)	Voltage - DC Reverse (Vr) (Max)	Current - Reverse Leakage	Speed	Speed - Recovery Current	Speed - Recovery Time
Microchip Technology JANTX1N1190	297 MIL-PRF-19500	500 ns	200 mA	Military	DO-5	Standard	DO-203AB DO-5 Stud	1.4 V	35 A	Stud Mount	175 °C	-65 °C	600 V	10 µA
Microchip Technology 1N1190R			200 mA 500 ns		DO-203AB (DO-5)	Reverse Polarity Standard	DO-203AB DO-5 Stud	1.4 V	35 A	Stud Mount	175 °C	-65 °C	600 V	10 µA	Standard Recovery	200 mA 200 mA	500 ns
Microchip Technology 1N1190			200 mA 500 ns		DO-203AB (DO-5)	Standard	DO-203AB DO-5 Stud	1.4 V	35 A	Stud Mount	175 °C	-65 °C	600 V	10 µA	Standard Recovery	200 mA 200 mA	500 ns
Microchip Technology 1N1190AR			200 mA 500 ns		DO-203AB (DO-5)	Reverse Polarity Standard	DO-203AB DO-5 Stud	1.19 V	40 A	Stud Mount	200 °C	-65 °C	600 V	10 µA	Standard Recovery	200 mA 200 mA	500 ns
Microchip Technology JAN1N1190R	297 MIL-PRF-19500		200 mA 500 ns	Military	DO-5	Reverse Polarity Standard	DO-203AB DO-5 Stud	1.4 V	35 A	Chassis Stud Mount	175 °C	-65 °C	600 V	10 µA	Standard Recovery	200 mA 200 mA	500 ns
Microchip Technology JANTXV1N1190R	297 MIL-PRF-19500		200 mA 500 ns	Military	DO-5	Reverse Polarity Standard	DO-203AB DO-5 Stud	1.4 V	35 A	Chassis Stud Mount	175 °C	-65 °C	600 V	10 µA	Standard Recovery	200 mA 200 mA	500 ns
Microchip Technology 1N1190A			200 mA 500 ns		DO-203AB (DO-5)	Standard	DO-203AB DO-5 Stud	1.19 V	40 A	Stud Mount	200 °C	-65 °C	600 V	10 µA	Standard Recovery	200 mA 200 mA	500 ns
Microchip Technology JAN1N1190	297 MIL-PRF-19500		200 mA 500 ns	Military	DO-5	Standard	DO-203AB DO-5 Stud	1.4 V	35 A	Chassis Stud Mount	175 °C	-65 °C	600 V	10 µA	Standard Recovery	200 mA 200 mA	500 ns

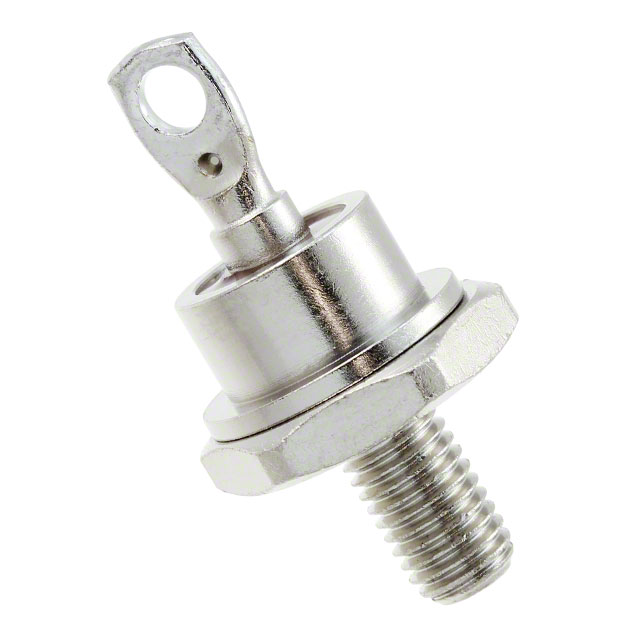

Microchip Technology JANTX1N1190R	297 MIL-PRF-19500	500 ns	200 mA	Military	DO-5	Reverse Polarity Standard	DO-203AB DO-5 Stud	1.4 V	35 A	Stud Mount	175 °C	-65 °C	600 V	10 µA
Microchip Technology JANTXV1N1190	297 MIL-PRF-19500		200 mA 500 ns	Military	DO-5	Standard	DO-203AB DO-5 Stud	1.4 V	35 A	Chassis Stud Mount	175 °C	-65 °C	600 V	10 µA	Standard Recovery	200 mA 200 mA	500 ns
