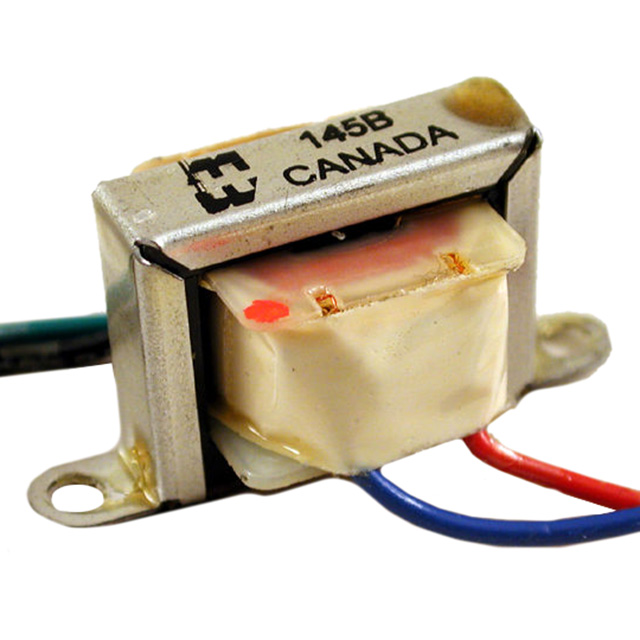

145 Series

Catalog

AUDIO TRANSFORMERS / SIGNAL TRANSFORMERS AUDIO TRANSFORMER, CHASSIS MOUNT, INPUT-OUTPUT, 600 CT:600 CT OHMS

Part	Weight [custom]	Weight [custom]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Frequency Range [Max]	Frequency Range [Min]	Termination Style	Frequency Response	DC Resistance (DCR) - Secondary	Transformer Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Impedance - Secondary (Ohms)	Mounting Type	Impedance - Primary (Ohms)	Power Level	DC Resistance (DCR) - Primary
Hammond Manufacturing 145E	0.088 lb	39.92 g	0.88 "	22.35 mm	1.63 in	41.4 mm	15 kHz	150 Hz	Wire Leads	1 dB	83 Ohm	Economical Open Type	0.81 in	20.57 mm	600CT	Chassis Mount	600CT	200 mW
Hammond Manufacturing 145D	0.088 lb	39.92 g	0.88 "	22.35 mm	1.63 in	41.4 mm	15 kHz	150 Hz	Wire Leads	1 dB	33 Ohm	Economical Open Type	0.81 in	20.57 mm	1k	Chassis Mount	200k	10 mW	3.6 kOhm
