RS6 Series
Manufacturer: Nichicon
Beta
⌘K

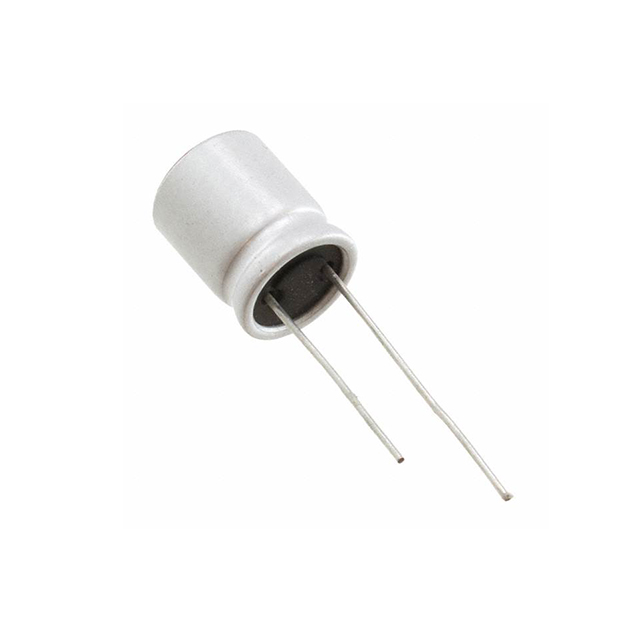

CONDUCTIVE POLYMER ALUMINIUM SOLID ELECTROLYTIC CAPACITORS
| Part | Applications | Size / Dimension [diameter] | Size / Dimension [diameter] | Package / Case | Lead Spacing | Lead Spacing | Lifetime @ Temp. | ESR (Equivalent Series Resistance) | Tolerance | Type | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Rated | Height - Seated (Max) | Height - Seated (Max) [Max] | Ripple Current @ High Frequency | Capacitance | Ripple Current @ Low Frequency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nichicon | General Purpose | 0.248 " | 6.3 mm | Can Radial | 2.5 mm | 0.098 in | 2000 Hrs | 15 mOhm | 20 % | Polymer | Through Hole | -55 C | 105 ░C | 6.3 VDC | 6 mm | 0.236 " | 3.2 A | 220 µF | 320 mA |
 Nichicon | General Purpose | 0.248 " | 6.3 mm | Can Radial | 2.5 mm | 0.098 in | 5000 Hrs | 13 mOhms | 20 % | Polymer | Through Hole | -55 C | 105 ░C | 2.5 V | 6 mm | 0.236 " | 3.6 A | 560 µF | 360 mA |
