A3-36DA Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K

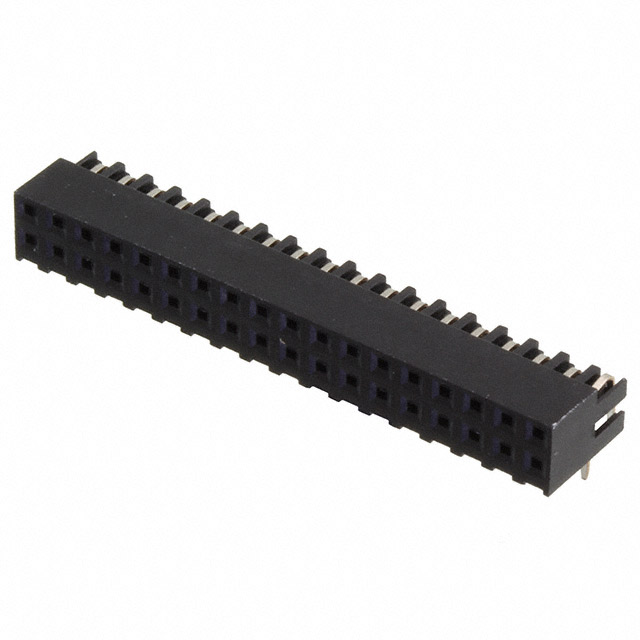

CONN RCPT 36P 0.079 GOLD PCB R/A
| Part | Insulation Material | Applications | Contact Shape | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Material | Contact Finish - Mating | Connector Type | Material Flammability Rating | Voltage Rating | Fastening Type | Number of Positions Loaded | Mounting Type | Contact Length - Post | Contact Length - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Row Spacing - Mating | Row Spacing - Mating | Insulation Height | Insulation Height | Number of Rows [custom] | Pitch - Mating | Pitch - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Color | Number of Positions | Contact Type | Contact Finish - Post | Style | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Nylon Polyamide (PA) | General Purpose Telecommunications | Square | 39.4 çin | 1 çm | Phosphor Bronze | Gold | Receptacle | UL94 V-0 | 200 VAC | Push-Pull | All | Right Angle Through Hole | 2.5 mm | 0.098 in | 8 µin | 0.203 µm | 2 mm | 0.079 in | 4.65 mm | 0.183 in | 2 | 0.079 " | 2 mm | -55 C | 85 °C | Black | 36 | Female Socket | Tin | Board to Board Cable | Solder |
