2406KL Series

Catalog

FAN AXIAL 60X15MM 12VDC WIRE

Part	Air Flow	Air Flow	Lifetime @ Temp.	Material - Blade	Voltage Range [Max]	Voltage Range [Min]	Material - Frame	Size / Dimension [z]	Size / Dimension [x]	Noise	Termination	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Width [y]	Features	Bearing Type	Approval Agency	Weight	Weight	Power (Watts)	Static Pressure	Static Pressure	RPM	Fan Type	Current Rating (Amps)

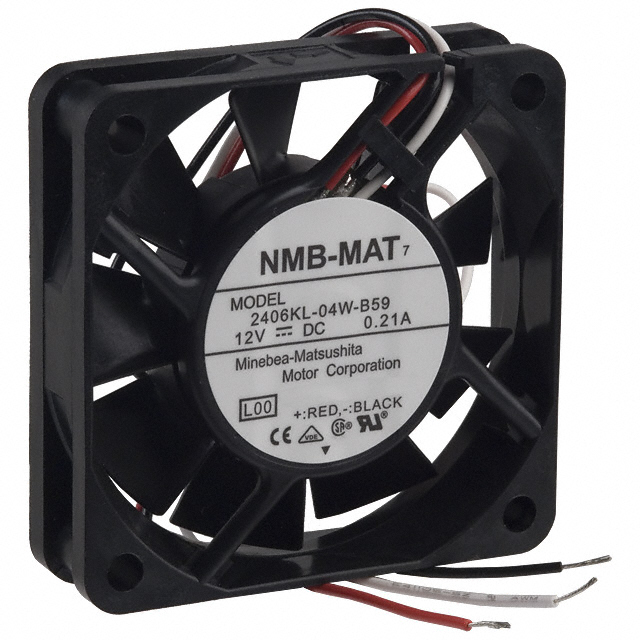

NMB TECHNOLOGIES 2406KL-04W-B59-L00	0.512 mł/min	18.3 CFM	70000 Hrs	Plastic	13.8 VDC	6 VDC	Plastic	60 mm	60 mm	34 dB(A)	3 Wire Leads	12 VDC	-10 °C	60 °C	15 mm	Locked Rotor Sensor	Ball	CE CSA UL VDE	44.91 g	0.099 lb	1.92 W	51.2 Pa	0.205 in H2O	4600 RPM	Tubeaxial
NMB TECHNOLOGIES 2406KL-04W-B49-L50	0.445 mł/min	15.9 CFM	70000 Hrs	Plastic	13.8 VDC	6 VDC	Plastic	60 mm	60 mm	31 dB(A)	3 Wire Leads	12 VDC	-10 °C	60 °C	15 mm	Speed Sensor (Tach)	Ball	CE CSA UL VDE	44.91 g	0.099 lb	1.56 W	39.6 Pa	0.159 in H2O	4100 RPM	Tubeaxial
NMB TECHNOLOGIES 2406KL-04W-B19-L00	0.188 mł/min	6.7 CFM	70000 Hrs	Plastic	13.8 VDC	7 V	Plastic	60 mm	60 mm	19 dB(A)	3 Wire Leads	12 VDC	-10 °C	60 °C	15 mm	Locked Rotor Sensor	Ball	CE CSA UL VDE	44.91 g	0.099 lb	0.48 W	8.5 Pa	0.034 in H2O	1800 RPM	Tubeaxial	40 mA
NMB TECHNOLOGIES 2406KL-04W-B49-L00	0.445 mł/min	15.9 CFM	70000 Hrs	Plastic	13.8 VDC	6 VDC	Plastic	60 mm	60 mm	31 dB(A)	3 Wire Leads	12 VDC	-10 °C	60 °C	15 mm	Locked Rotor Sensor	Ball	CE CSA UL VDE	44.91 g	0.099 lb	1.56 W	39.6 Pa	0.159 in H2O	4100 RPM	Tubeaxial
NMB TECHNOLOGIES 2406KL-05W-B39-L50	0.395 m³/min	14.1 CFM	70000 Hrs	Plastic	27.6 VDC	12	Plastic	60 mm	60 mm	28 dB	3 Wire Leads	24 VDC	-10 °C	60 °C	15 mm	Speed Sensor (Tach)	Ball	CE CSA UL VDE	44.91 g	0.099 lb	1.44 W	31.1 Pa	0.125 in H2O	3600 RPM	Tubeaxial	60 mA
NMB TECHNOLOGIES 2406KL-05W-B39-L00	0.395 m³/min	14.1 CFM	70000 Hrs	Plastic	27.6 VDC	12	Plastic	60 mm	60 mm	28 dB	3 Wire Leads	24 VDC	-10 °C	60 °C	15 mm	Locked Rotor Sensor	Ball	CE CSA UL VDE	44.91 g	0.099 lb	1.44 W	31.1 Pa	0.125 in H2O	3600 RPM	Tubeaxial	60 mA

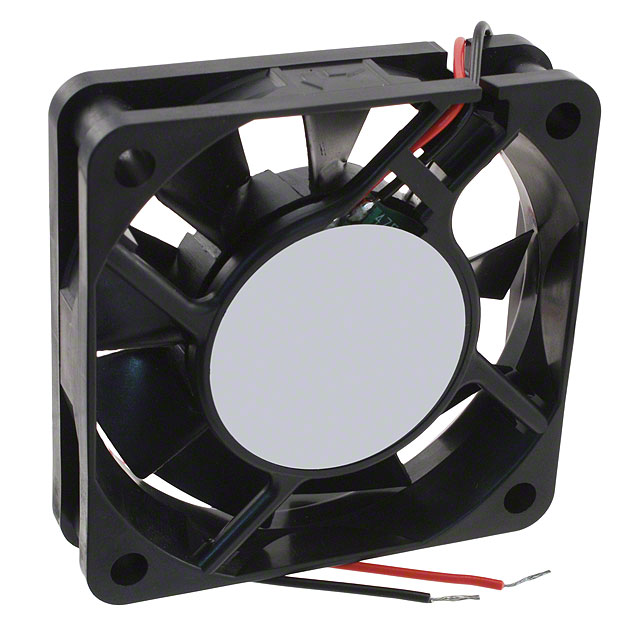

NMB TECHNOLOGIES 2406KL-05W-B50-L00	0.512 mł/min	18.3 CFM	70000 Hrs	Plastic	27.6 VDC	10 VDC	Plastic	60 mm	60 mm	34 dB(A)	2 Wire Leads	24 VDC	-10 °C	60 °C	15 mm		Ball	CE CSA UL VDE	44.91 g	0.099 lb	2.4 W	51.2 Pa	0.205 in H2O	4600 RPM	Tubeaxial	100 mA
NMB TECHNOLOGIES 2406KL-05W-B49-L50	0.445 mł/min	15.9 CFM	70000 Hrs	Plastic	27.6 VDC	10 VDC	Plastic	60 mm	60 mm	31 dB(A)	3 Wire Leads	24 VDC	-10 °C	60 °C	15 mm	Speed Sensor (Tach)	Ball	CE CSA UL VDE	44.91 g	0.099 lb	1.68 W	39.6 Pa	0.159 in H2O	4100 RPM	Tubeaxial	70 mA
NMB TECHNOLOGIES 2406KL-04W-B20-L00	0.325 mł/min	11.6 CFM	70000 Hrs	Plastic	13.8 VDC	6 VDC	Plastic	60 mm	60 mm	25 dB(A)	2 Wire Leads	12 VDC	-10 °C	60 °C	15 mm		Ball	CE CSA UL VDE	44.91 g	0.099 lb	840 mW	23.4 Pa	0.094 in H2O	3100 RPM	Tubeaxial	70 mA
NMB TECHNOLOGIES 2406KL-04W-B29-L00	0.325 mł/min	11.6 CFM	70000 Hrs	Plastic	13.8 VDC	6 VDC	Plastic	60 mm	60 mm	25 dB(A)	3 Wire Leads	12 VDC	-10 °C	60 °C	15 mm	Locked Rotor Sensor	Ball	CE CSA UL VDE	44.91 g	0.099 lb	840 mW	23.4 Pa	0.094 in H2O	3100 RPM	Tubeaxial	70 mA
