AM100Q Series

Manufacturer: aimtec

Catalog

DC DC CONVERTER 48V 100W

Part	Standard Number	Voltage - Isolation	Voltage - Input (Max) [Max]	Type	Current - Output (Max) [Max]	Efficiency	Features	Number of Outputs	Voltage - Input (Min) [Min]	Supplier Device Package	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Package / Case	Power (Watts)	Size / Dimension [y]	Size / Dimension [z]
aimtec AM100QB-11048SA30JZ-B	50155	3000 V	160 V	Isolated Module	2.083 A	88 %	Adjustable Output Remote On/Off Remote Sense	1	43 V	Quarter Brick	Through Hole	-40 C	105 ░C	Railway	48 V	1.54 in	39.2 mm	12.7 mm	60.8 mm	0.5 in	2.39 "	Quarter Brick	100 W
aimtec AM100QB-11024SA30JZ-B	50155	3000 V	160 V	Isolated Module	4.167 A	91 %	Adjustable Output Remote On/Off Remote Sense	1	43 V	Quarter Brick	Through Hole	-40 C	105 ░C	Railway	24 V	1.54 in	39.2 mm	12.7 mm	60.8 mm	0.5 in	2.39 "	Quarter Brick	100 W

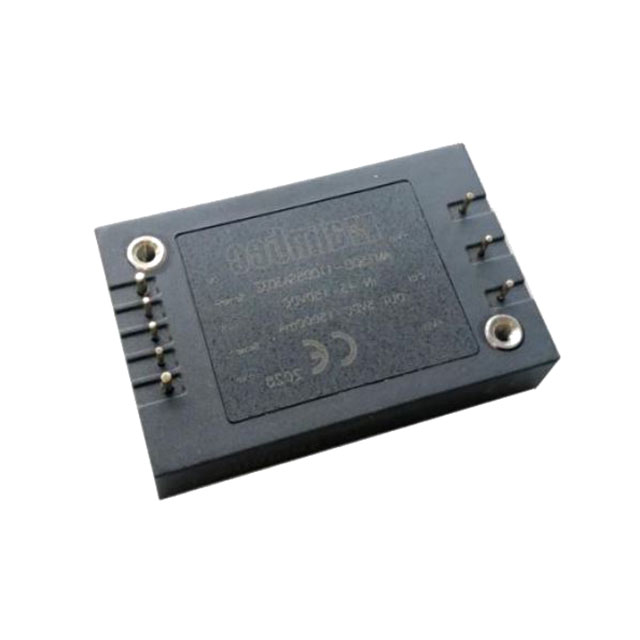

aimtec AM100QB-11005SA30JZ-B	50155	3000 V	160 V	Isolated Module	20 A	88 %	Adjustable Output Remote On/Off Remote Sense	1	43 V	Quarter Brick	Through Hole	-40 C	105 ░C	Railway	5 V	1.54 in	39.2 mm	12.7 mm	60.8 mm	0.5 in	2.39 "	Quarter Brick	100 W
aimtec AM100QB-11048SA30JZ-K-B		3000 V	160 V	Isolated Module	2.083 A	88 %	Adjustable Output Heatsink Remote On/Off Remote Sense	1	43 V	Quarter Brick	Through Hole	-40 C	105 ░C	Industrial Railway	48 V	1.54 in			60.8 mm	1.21 "	2.39 "	Quarter Brick	100 W	39.2 mm	27.8 mm
aimtec AM100QB-11003SA30JZ-B	50155	3000 V	160 V	Isolated Module	22.727 A	86 %	Adjustable Output Remote On/Off Remote Sense	1	43 V	Quarter Brick	Through Hole	-40 C	105 ░C	Railway	3.3 V	1.54 in	39.2 mm	12.7 mm	60.8 mm	0.5 in	2.39 "	Quarter Brick	75 W
aimtec AM100QB-11015SA30JZ-B	50155	3000 V	160 V	Isolated Module	6.667 A	89 %	Adjustable Output Remote On/Off Remote Sense	1	43 V	Quarter Brick	Through Hole	-40 C	105 ░C	Railway	15 V	1.54 in	39.2 mm	12.7 mm	60.8 mm	0.5 in	2.39 "	Quarter Brick	100 W
aimtec AM100QB-2405SH22-NZ-M		2250 VDC	36 V	Isolated Module	20 A	89 %	Remote On/Off	1	9 V	Quarter Brick	Through Hole	-40 C	85 °C	ITE (Commercial)	5 V	1.58 "			61.8 mm	0.5 in	2.43 in	Quarter Brick	100 W	40.2 mm	12.7 mm
