AD5760 Series

Ultra Stable 16-Bit ±0.5 LSB INL, Voltage Output DAC

Catalog

Ultra Stable 16-Bit ±0.5 LSB INL, Voltage Output DAC

Part	Architecture	INL/DNL (LSB)	Mounting Type	Settling Time	Reference Type	Supplier Device Package	Data Interface	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]	Number of Bits	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Voltage - Supply, Digital [Max]	Voltage - Supply, Digital [Min]	Number of DAC's	Utilized IC / Part	Contents	DAC Type
Analog Devices AD5760BCPZ	R-2R	±1 (Max) ±2 (Max)	Surface Mount	3.5 µs	External	24-LFCSP-VQ (4x5)	DSP SPI	-2.5 V 7.5 V	16.5 V	16	24-VFQFN Exposed Pad CSP	125 °C	-40 °C	Voltage - Unbuffered	5.5 V	2.7 V
Analog Devices AD5760ACPZ-REEL7	R-2R	±1 (Max) ±2 (Max)	Surface Mount	3.5 µs	External	24-LFCSP-VQ (4x5)	DSP SPI	-2.5 V 7.5 V	16.5 V	16	24-VFQFN Exposed Pad CSP	125 °C	-40 °C	Voltage - Unbuffered	5.5 V	2.7 V
Analog Devices AD5760ACPZ	R-2R	±1 (Max) ±2 (Max)	Surface Mount	3.5 µs	External	24-LFCSP-VQ (4x5)	DSP SPI	-2.5 V 7.5 V	16.5 V	16	24-VFQFN Exposed Pad CSP	125 °C	-40 °C	Voltage - Unbuffered	5.5 V	2.7 V
Analog Devices AD5760BCPZ-REEL7	R-2R	±1 (Max) ±2 (Max)	Surface Mount	3.5 µs	External	24-LFCSP-VQ (4x5)	DSP SPI	-2.5 V 7.5 V	16.5 V	16	24-VFQFN Exposed Pad CSP	125 °C	-40 °C	Voltage - Unbuffered	5.5 V	2.7 V

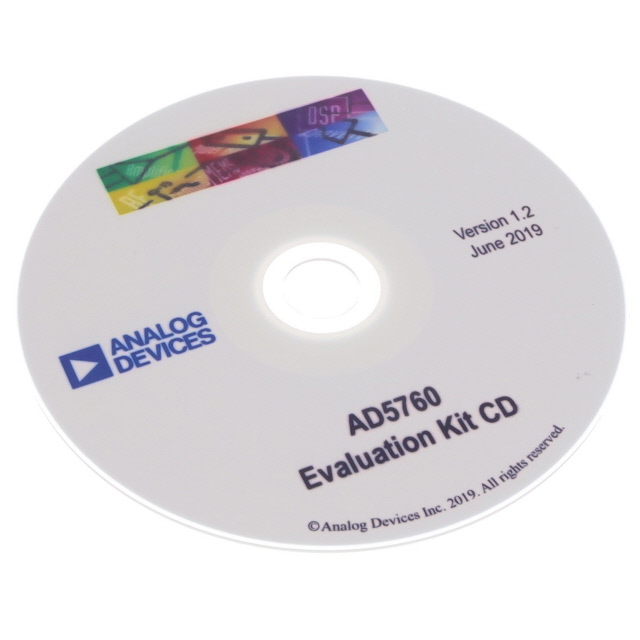

Analog Devices EVAL-AD5760SDZ				2.5 µs			DSP MICROWIRE™ QSPI™ Serial SPI™			16							1	AD5760	Board(s)	Voltage

Catalog

Ultra Stable 16-Bit ±0.5 LSB INL, Voltage Output DAC

Key Features

• True 16-bit voltage output DAC, ±0.5 LSB INL

• 8 nV/√Hzoutput noise spectral density

• 0.00625 LSB long-term linearity error stability

• ±0.018 ppm/°C gain error temperature coefficient

• 2.5 µs output voltage settling time

• 3.5 nV-sec midscale glitch impulse

• Integrated precision reference buffers

• Operating temperature range:−40°C to +125°C

• 4mm x 5mm LFCSP package

• Wide power supply range of up to ±16.5 V

• 35 MHz Schmitt triggered digital interface

• 1.8 V compatible digital interface

Description

The AD5760 is a true 16-bit, unbuffered voltage out DAC that operates from a bipolar supply up to 33V. The AD5760 accepts a positive reference input in the range of 5V to VDD– 2.5V and a negative reference input in the range of VSS+ 2.5v to 0V. The AD5760 offers relative accuracy of +/-0.5 LSB max and operation is guaranteed monotonic with a ±0.5 LSB DNL max range specification.The part uses a versatile 3-wire serial interface that operates at clock rates of up to 35 MHz and is compatible with standard SPI, QSPI™, MICROWIRE™, and DSP interface standards. The part incorporates a power-on reset circuit that ensures the DAC output powers up to 0V in a known output impedance state and remains in this state until a valid write to the device takes place. The part provides an output clamp feature that places the output in a defined load state.PRODUCT HIGHLIGHTSTrue 16-Bit Accuracy.Wide Power Supply Range of Up to ±16.5 V.−40°C to +125°C Operating Temperature Range.Low 8 nV/√HzNoise.Low 0.018 ppm/°C gain error temperature coefficient.APPLICATIONSMedical instrumentationTest and measurementIndustrial controlScientific and aerospace instrumentationData acquisition systemsDigital gain and offset adjustmentPower supply control
