THD 10 Series

Catalog

DC DC CONVERTER 24V 10W

Part	Features	Package / Case	Voltage - Isolation	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	Voltage - Input (Max) [Max]	Number of Outputs	Applications	Voltage - Input (Min) [Min]	Mounting Type	Efficiency	Current - Output (Max) [Max]	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Type	Current - Output (Max) [Max]	Voltage - Output 2	Current - Output (Max)

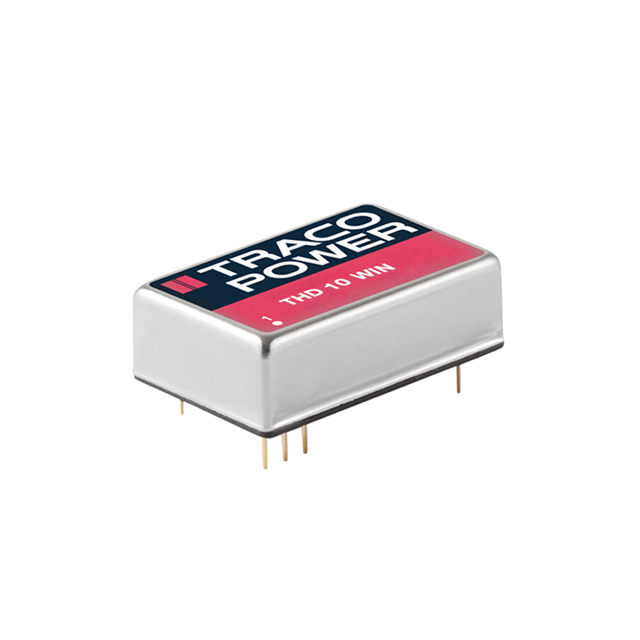

Traco Power THD 10-4815WIN	OCP Remote On/Off SCP	24-DIP Module 9 Leads	1.5 kV	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	10 W	75 V	1	ITE (Commercial)	18 V	Through Hole	87 %	416 mA	24 V	-40 °C	85 °C	Isolated Module
Traco Power THD 10-4811WIN	OCP Remote On/Off SCP	24-DIP Module 9 Leads	1.5 kV	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	10 W	75 V	1	ITE (Commercial)	18 V	Through Hole	85 %	2 A	5.1 V	-40 °C	85 °C	Isolated Module

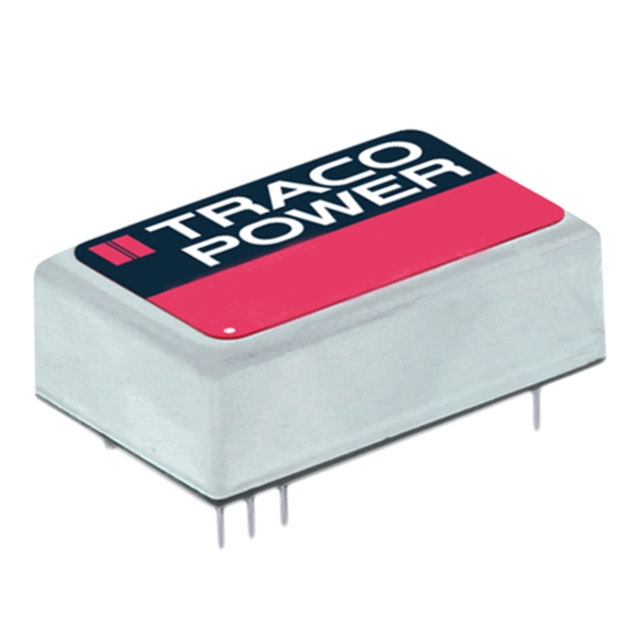

Traco Power THD 10-2413N	OCP Remote On/Off SCP	24-DIP Module 9 Leads	1.5 kV	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	10 W	36 V	1	ITE (Commercial)	18 V	Through Hole	89 %	666 mA	15 V	-40 °C	85 °C	Isolated Module
Traco Power THD 10-2422WIN	OCP Remote On/Off SCP	24-DIP Module 9 Leads	1.5 kV	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	10 W	36 V	2	ITE (Commercial)	9 V	Through Hole	87 %	416 mA	12 V	-40 °C	85 °C	Isolated Module	416 mA	-12 V
Traco Power THD 10-1222N	OCP Remote On/Off SCP	24-DIP Module 9 Leads	1.5 kV	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	10 W	18 V	2	ITE (Commercial)	9 V	Through Hole	88 %	416 mA	12 V	-40 °C	85 °C	Isolated Module	416 mA	-12 V
Traco Power THD 10-1223N	OCP Remote On/Off SCP	24-DIP Module 9 Leads	1.5 kV	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	10 W	18 V	2	ITE (Commercial)	9 V	Through Hole	89 %		15 V	-40 °C	85 °C	Isolated Module		-15 V	333 mA
