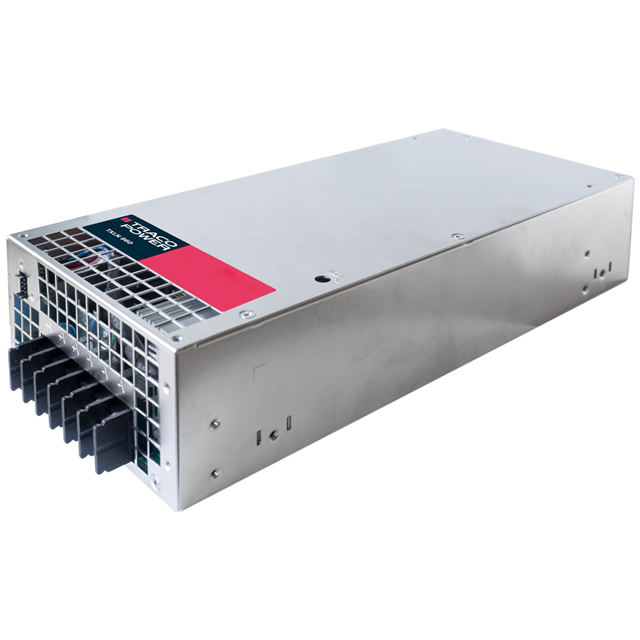

TXLN 960 Series
Manufacturer: Traco Power
Beta
⌘K
SWITCHING POWER SUPPLIES 960W 48V 20A
| Part | Minimum Load Required | Standard Number | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Voltage - Output 1 | Voltage - Input [Max] | Voltage - Input [Min] | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Power (Watts) | Current - Output 1 | Voltage - Isolation | Type | Efficiency | Number of Outputs | Features | Mounting Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | 62368-1 | 4.92 in | 2.48 " | 125 mm | 63 mm | 275 mm | 10.83 " | 48 V | 264 VAC 375 VDC | 90 VAC 127 VDC | ITE (Commercial) | 70 °C | -20 °C | 960 W | 20 A | 3000 V | Enclosed | 89 % | 1 | Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input | Chassis Mount | CB CE cURus | |
Traco Power | 62368-1 | 4.92 in | 2.48 " | 125 mm | 63 mm | 275 mm | 10.83 " | 24 V | 264 VAC 375 VDC | 90 VAC 127 VDC | ITE (Commercial) | 70 °C | -20 °C | 960 W | 40 A | 3000 V | Enclosed | 88 % | 1 | Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input | Chassis Mount | CB CE cURus | |
Traco Power | 62368-1 | 4.92 in | 2.48 " | 125 mm | 63 mm | 275 mm | 10.83 " | 12 V | 264 VAC 375 VDC | 90 VAC 127 VDC | ITE (Commercial) | 70 °C | -20 °C | 960 W | 3000 V | Enclosed | 87 % | 1 | Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input | Chassis Mount | CB CE cURus |
