C3520 Series
Manufacturer: Prysmian Group
Beta
⌘K

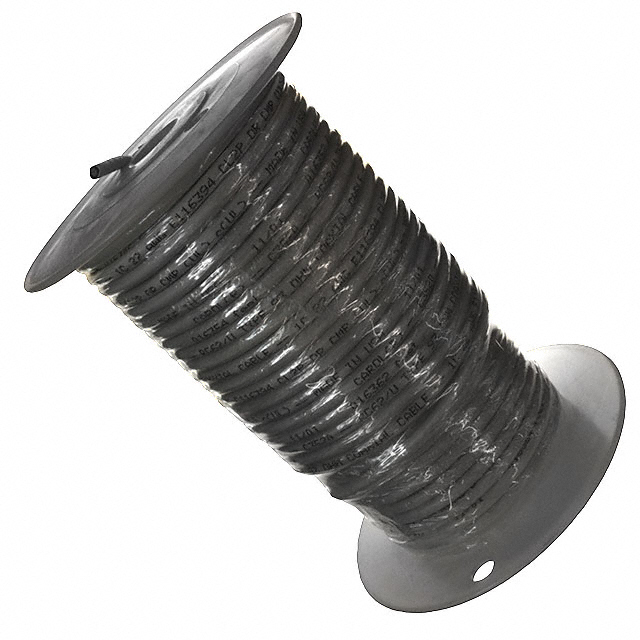

CABLE COAX PLEN RG62 22AWG 1000'
| Part | Dielectric Material | Shield Material | Conductor Material | VoP, Velocity of Propagation | Shield Coverage | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Impedance | Jacket (Insulation) Material | Conductor Strand | Length | Length | Wire Gauge | Usage | Cable Type | Cable Group | Jacket Color | Length [x] | Length [x] | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | Cellular (Foam) Fluoro-Polymer (Cellular FP) | Copper Bare | Copper Coated Steel | 84 | 95 % | 3.56 mm | 0.14 in | 93 Ohms | Poly-Vinyl Chloride (PVC) | Solid | 100 ' | 30.48 m | 0.32 mm² 22 AWG | Network RF Signal | Coaxial - Plenum | RG-62 | Natural | 304.8 m | 1000 ft | Braid | 5.11 mm | 0.201 in |
