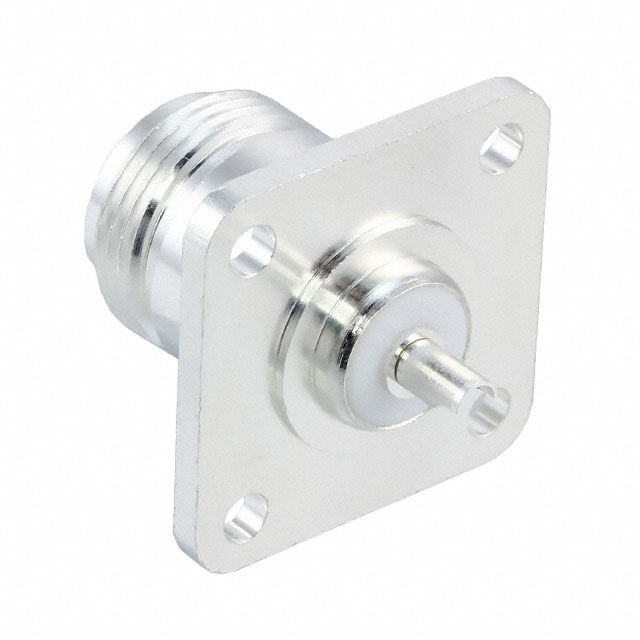

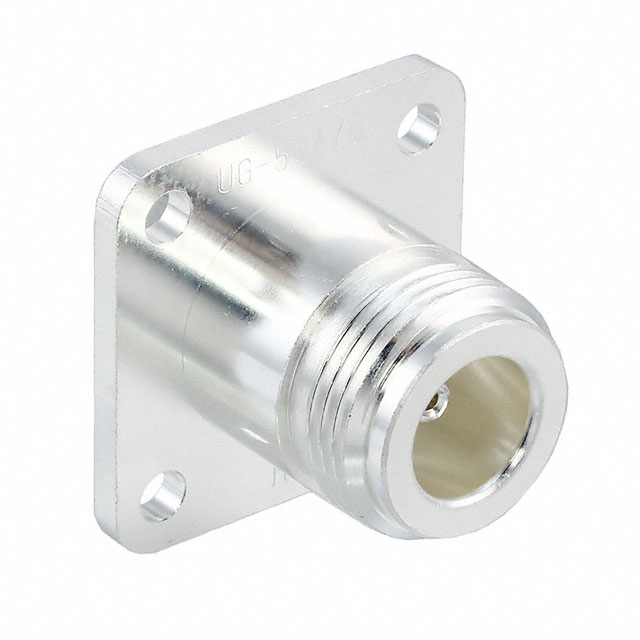

UG-58A/U Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN N JACK STR 50OHM SOLDER
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Mating Cycles | Body Finish | Center Contact Plating | Dielectric Material | Frequency - Max [Max] | Mounting Type | Contact Termination | Housing Color | Center Contact Material | Connector Type | Impedance | Fastening Type | Mounting Feature | Number of Ports | Connector Style | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | -55 C | 85 °C | Brass | 500 | Nickel | Gold | Polytetrafluoroethylene (PTFE) | 2 GHz | Panel Mount | Solder Cup | Silver | Beryllium Copper | Female Socket Jack | 50 Ohms | Threaded | Flange | 1 | N Type | Solder |
 Hirose Electric Co Ltd |
