AMSRI Series

Manufacturer: aimtec

Catalog

DC DC CONVERTER 9V 9W

Part	Package / Case	Applications	Voltage - Input (Max) [Max]	Approval Agency	Power (Watts)	Type	Number of Outputs	Current - Output (Max) [Max]	Voltage - Output 1	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Efficiency	Voltage - Input (Min) [Min]
aimtec AMSRI1-7809L-NZ	3-SIP Module	ITE (Commercial)	36 V	cURus UL	9 W	Non-Isolated PoL Module	1	1 A	9 V	Through Hole	85 °C	-40 C	11.5 mm	0.35 in	0.45 in	0.69 in	9 mm	17.5 mm	90 %	13 V

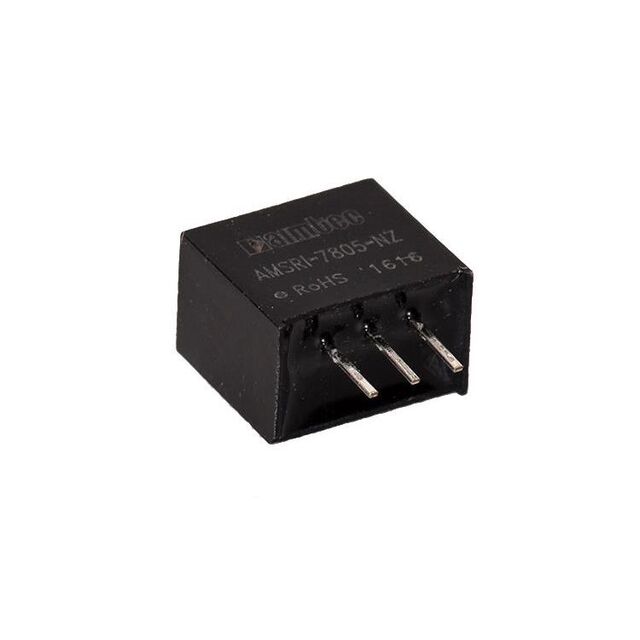

aimtec AMSRI-7805-NZ	3-SIP Module	ITE (Commercial)	36 V			Non-Isolated PoL Module	1	500 mA	5 V	Through Hole	85 °C	-40 °C	7.6 mm	0.38 in	0.3 "	0.45 "	9.7 mm	11.6 mm		6.5 V
aimtec AMSRI-783.3-NZ	3-SIP Module	ITE (Commercial)	36 V			Non-Isolated PoL Module	1	500 mA	3.3 V	Through Hole	85 °C	-40 °C	7.6 mm	0.38 in	0.3 "	0.45 "	9.7 mm	11.6 mm	78 %	4.75 V

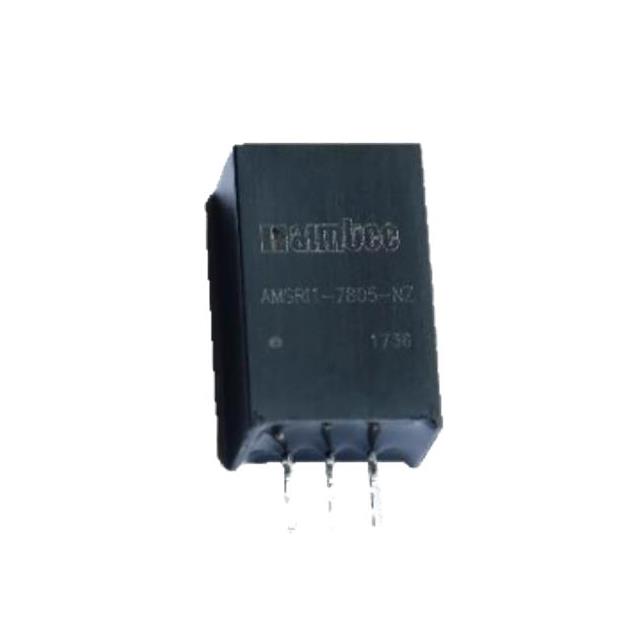

aimtec AMSRI1-783.3-NZ	3-SIP Module	ITE (Commercial)	36 V			Non-Isolated PoL Module	1	1 A	3.3 V	Through Hole	85 °C	-40 °C	9 mm	0.69 in	0.35 in	0.45 "	17.5 mm	11.5 mm	81 %	6 V
aimtec AMSRI1-7805-NZ	3-SIP Module	ITE (Commercial)	36 V			Non-Isolated PoL Module	1	1 A	5 V	Through Hole	85 °C	-40 °C	9 mm	0.69 in	0.35 in	0.45 "	17.5 mm	11.5 mm	86 %	8 V
