CL6 Series

Linear Fixed 100mA Constant Current LED Driver

Catalog

Linear Fixed 100mA Constant Current LED Driver

Part	Number of Outputs	Voltage - Supply (Max) [Max]	Current - Output / Channel	Voltage - Supply (Min) [Min]	Dimming	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Package / Case	Voltage - Output [Max]	Voltage - Output [Min]	Applications	Mounting Type	Type

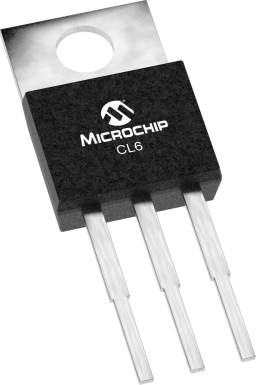

Microchip Technology CL6N5-G	1	90 V	100 mA	6.5 V	PWM	-40 C	119 °C	TO-220-3	TO-220-3	90 V	4 V	Lighting Signage	Through Hole	Linear

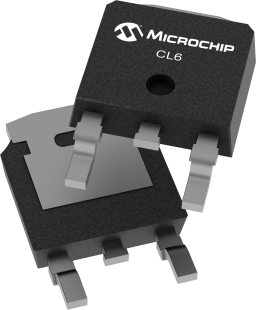

Microchip Technology CL6K4-G	1	90 V	100 mA	6.5 V	PWM	-40 C	119 °C	TO-252 (DPAK)	DPAK (2 Leads + Tab) SC-63 TO-252-3	90 V	4 V	Lighting Signage	Surface Mount	Linear

Catalog

Linear Fixed 100mA Constant Current LED Driver

Key Features

• * 100mA ±5% constant current drive

• * Built-in reverse polarity protection

• * Dimmable via PWM supply

• * Overtemperature protection

• * Tab ground allows direct heatsinking to chassis

• * 90V max rating for transient immunity

Description

The CL6 is a fixed, linear current regulator designed for driving high brightness LEDs at 100mA from nominal 12V, 24V, or 48V supplies. With a maximum rating of 90V, it is able to withstand transients without the need for additional transient protection circuitry. The CL6 is offered in both TO-252 (D-PAK) and TO-220 packages. The tab on the TO-220 is ground, allowing heatsinking directly to a chassis without the need for electrically insulating spacers. Overtemperature protection shuts off the LED current when the die temperature rises above 135°C (nominal). Full LED current resumes when the die temperature falls below 105°C (nominal).
