SGT120 Series

Catalog

650 V, 75 MOHM TYP., 15 A, E-MODE POWERGAN TRANSISTOR

Part	Vgs(th) (Max) @ Id	Gate Charge (Qg) (Max) @ Vgs [Max]	Mounting Type	Supplier Device Package	Drain to Source Voltage (Vdss)	Technology	Vgs (Max) [Min]	Vgs (Max) [Max]	Drive Voltage (Max Rds On, Min Rds On)	FET Type	Operating Temperature [Max]	Operating Temperature [Min]	Input Capacitance (Ciss) (Max) @ Vds [Max]	Power Dissipation (Max)	Package / Case	Current - Continuous Drain (Id) @ 25°C	Rds On (Max) @ Id, Vgs

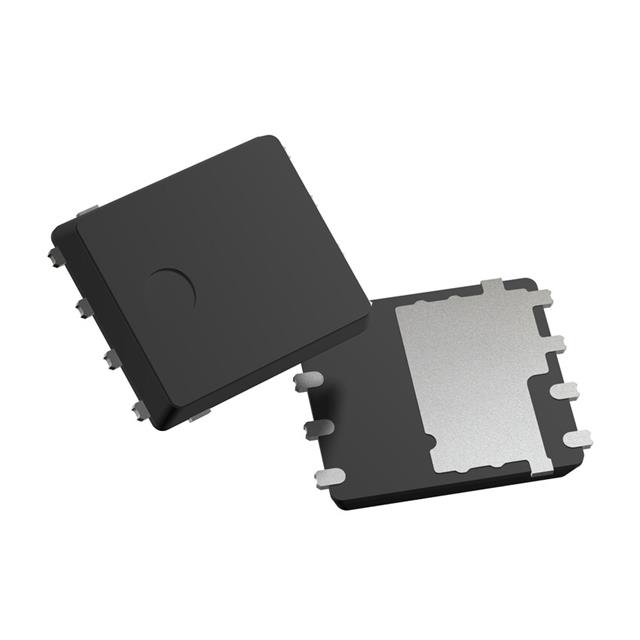

STMicroelectronics SGT120R65AL	2.6 V	3 nC	Surface Mount	PowerFlat™ (5x6) HV	650 V	GaNFET (Gallium Nitride)	-10 V	6 V	6 V	N-Channel	150 °C	-55 °C	125 pF	192 W	8-PowerVDFN	15 A	120 mOhm
