DF10 Series

Catalog

CONN RCPT 26POS 0.079 GOLD PCB

Part	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Insulation Material	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Insulation Height [z]	Insulation Height [z]	Voltage Rating	Number of Positions	Fastening Type	Connector Type	Insulation Color	Current Rating (Amps)	Contact Type	Termination	Material Flammability Rating	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Post [custom]	Contact Length - Post	Contact Finish - Post	Mounting Type	Number of Positions [custom]	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Style	Applications	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]
Hirose Electric Co Ltd DF10-26S-2DSA(62)	Square	39.4 çin	1 çm	Phosphor Bronze	Nylon Polyamide (PA)	Gold	3.9 µin	0.099 µm	0.079 "	2 mm	All	4 mm	0.157 in	250 VAC	26	Push-Pull	Receptacle	Black	2 A	Female Socket	Kinked Pin Solder	UL94 V-0	1	85 °C	-30 ░C	0.11 in	2.79 mm	Tin	Through Hole

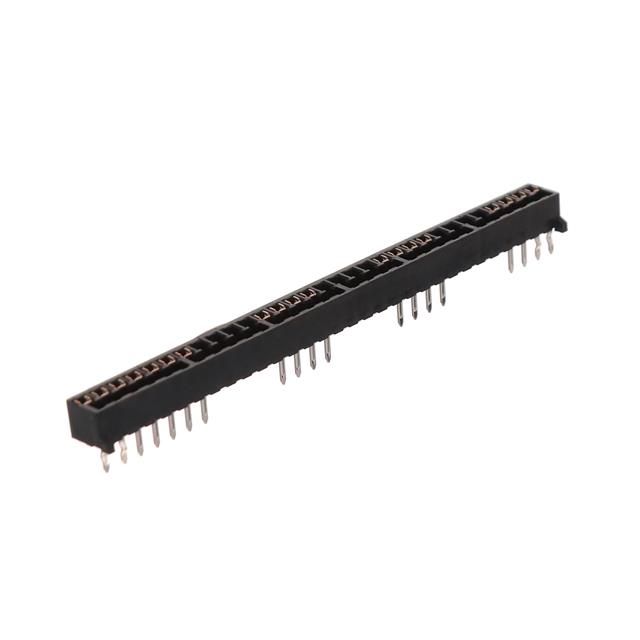

Hirose Electric Co Ltd DF10-31S-2DSA(72)	Square	39.4 çin	1 çm	Phosphor Bronze	Nylon Polyamide (PA)	Gold			0.079 "	2 mm	All	4 mm	0.157 in	250 V		Push-Pull	Receptacle	Black	2 A	Female Socket	Solder	UL94 V-0	1	85 °C	-30 ░C	0.11 in	2.79 mm	Tin	Through Hole	31	39.4 µin	1 µm	Board to Board Cable

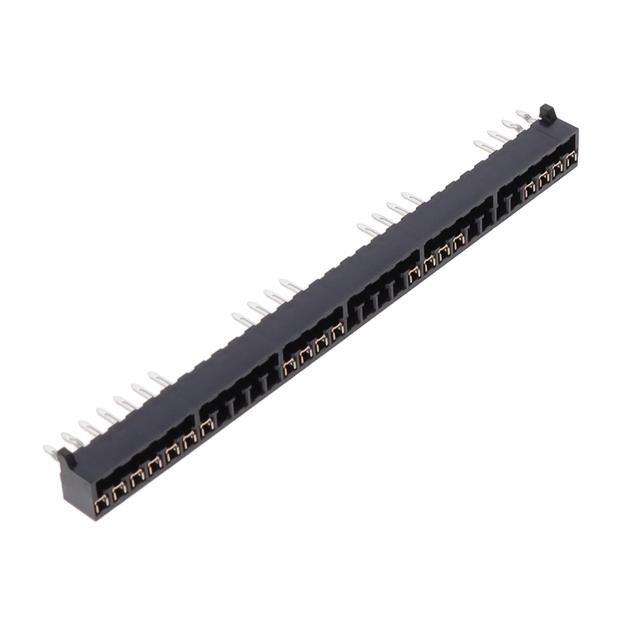

Hirose Electric Co Ltd DF10-31S-2DSA(78)	Square	39.4 çin	1 çm	Phosphor Bronze	Nylon Polyamide (PA)	Gold			0.079 "	2 mm	All	4 mm	0.157 in	250 V		Push-Pull	Receptacle	Black	2 A	Female Socket	Solder	UL94 V-0	1	85 °C	-30 ░C	0.11 in	2.79 mm	Tin	Through Hole	31	39.4 µin	1 µm	Board to Board Cable

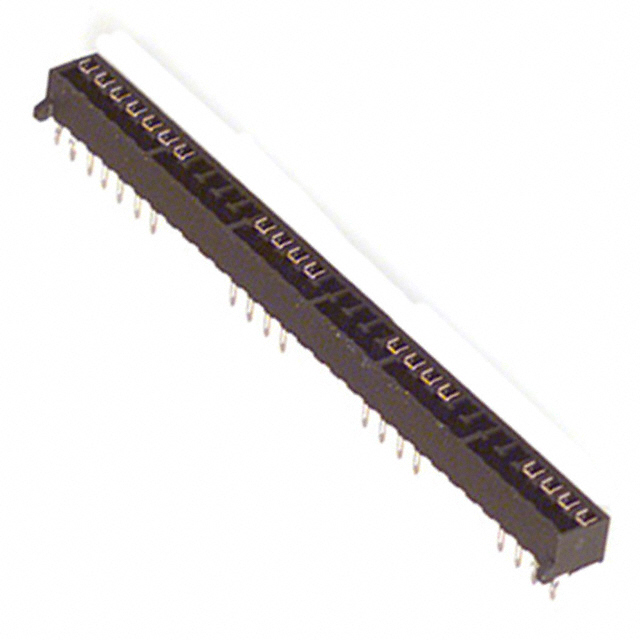

Hirose Electric Co Ltd DF10-31S-2DSA(62)	Square	39.4 çin	1 çm	Phosphor Bronze	Nylon Polyamide (PA)	Gold	3.9 µin	0.099 µm	0.079 "	2 mm	All	4 mm	0.157 in	250 VAC		Push-Pull	Receptacle	Black	2 A	Female Socket	Kinked Pin Solder	UL94 V-0	1	85 °C	-30 ░C	0.11 in	2.79 mm	Tin	Through Hole	31
Hirose Electric Co Ltd DF10-31S-2DSA(68)	Square	39.4 çin	1 çm	Phosphor Bronze	Nylon Polyamide (PA)	Gold	3.9 µin	0.099 µm	0.079 "	2 mm	All	4 mm	0.157 in	250 VAC		Push-Pull	Receptacle	Black	2 A	Female Socket	Kinked Pin Solder	UL94 V-0	1	85 °C	-30 ░C	0.11 in	2.79 mm	Tin	Through Hole	31
Hirose Electric Co Ltd DF10-26S-2DSA(72)	Square			Copper	Liquid Crystal Polymer (LCP)	Gold			0.079 "	2 mm	All	4 mm	0.157 in	250 V	26	Push-Pull	Receptacle	Black	2 A	Female Socket	Kinked Pin Solder	UL94 V-0	1	125 °C	-55 C			Tin	Through Hole				Board to Board Cable	General Purpose	3.94 µin	0.1 µm
