HMC510 Series
Manufacturer: Analog Devices
Beta
⌘K
OSCILLATOR VCO 4225MHZ TO 4775MHZ/ 8450MHZ TO 9550MHZ 5V 32-PIN QFN EP SMD T/R
| Part | 2nd Harmonic, Typ (dBc) | Height [z] | Height [z] | Power (dBm) | Frequency Range [Max] | Frequency Range [Min] | Icc Max [Max] | Phase Noise Typ (dBc/Hz) | Operating Temperature [Max] | Operating Temperature [Min] | Tuning Voltage (VDC) [Min] | Tuning Voltage (VDC) [Max] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Package / Case | Pushing (MHz/V) | Frequency [Max] | Frequency [Min] | For Use With/Related Products | Type | Supplied Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices | 15 dBc | 0.039 in | 1 mm | -6 dBm 11 dBm 12.5 dBm | 4.775 GHz 9.55 GHz | 4.225 GHz 8.45 GHz | 360 mA | -116 dBc/Hz | 85 °C | -40 °C | 2 V | 13 V | 0.197 in | 5 mm | 0.197 " | 5 mm | 32-VFQFN Exposed Pad | 20 MHz/V | |||||

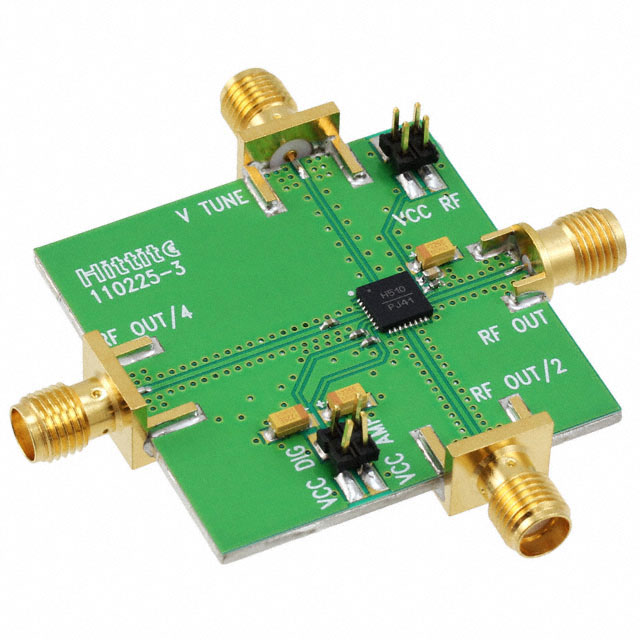

 Analog Devices | 9.55 GHz | 8.45 GHz | HMC510LP5 | Voltage Controlled Oscillator (VCO) | Board(s) |
