APTGFQ25 Series

Catalog

IGBT MODULE 1200V 40A 227W SP2

Part	Input Capacitance (Cies) @ Vce	Power - Max [Max]	Configuration	Vce(on) (Max) @ Vge, Ic	IGBT Type	Current - Collector (Ic) (Max) [Max]	Mounting Type	Input	Voltage - Collector Emitter Breakdown (Max) [Max]	NTC Thermistor	Supplier Device Package	Package / Case	Current - Collector Cutoff (Max) [Max]

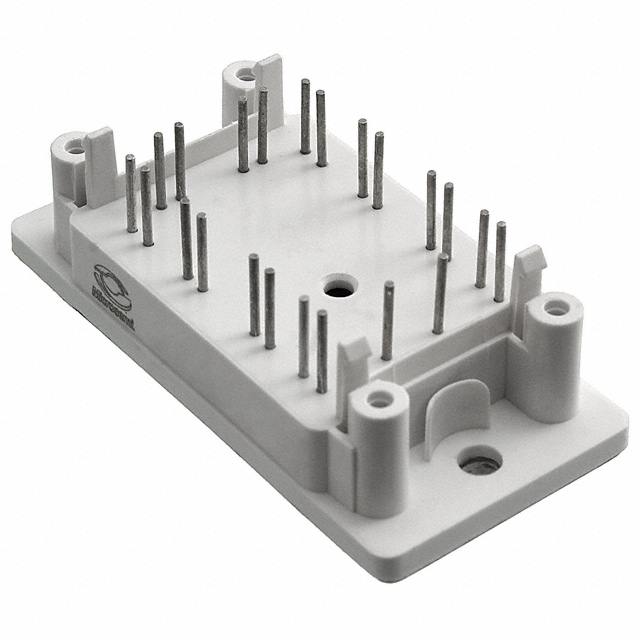

Microsemi Corporation APTGFQ25H120T2G	2.02 nF	227 W	Full Bridge	2.1 V	NPT and Fieldstop	40 A	Through Hole	Standard	1200 V		SP2	SP2	250 µA
