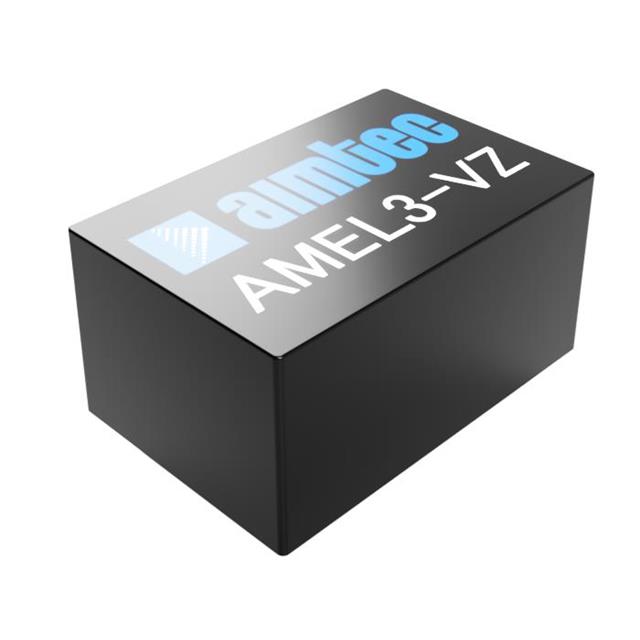

AMEL3 Series

Manufacturer: aimtec

Catalog

AC/DC CONVERTER 12V 3W

Part	Load Regulation	Line Regulation	Operating Temperature [Max]	Operating Temperature [Min]	Type	Package / Case	Current - Output (Max) [Max]	Power (Watts)	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Mounting Type	Number of Outputs	Features	Voltage - Output 1	Efficiency	Voltage - Input [Min]	Voltage - Input [Max]	Applications	Weight [custom]	Weight [custom]	Current - Output 1	Voltage - Isolation
aimtec AMEL3-12SVZ	±1%	0.5 %	70 °C	-40 C	Enclosed	16-DIP Module 5 Leads	250 mA	3 W	1.46 in	0.71 in	37 mm	0.97 "	24.5 mm	18 mm	Through Hole	1	Universal Input	12 V	77 %	85 VAC 100 V	264 VAC 370 VDC	ITE (Commercial)
aimtec AMEL3-5SVZ	±1%	0.5 %			Enclosed	26-DIP Module 5 Leads	600 mA	3 W	1.46 in	0.71 in	37 mm	0.96 in	24.5 mm	18 mm	Through Hole	1	Universal Input	5 V	74 %	85 VAC 100 V	264 VAC 370 VDC	ITE (Commercial)	25 g	0.055 lb
aimtec AMEL3-12SVZ-W			70 °C	-40 C	Enclosed			3 W	1.46 in	0.71 in	37 mm	0.97 "	24.9 mm	18 mm	Chassis Mount	1	Universal Input	12 V	77 %	85 VAC 100 V	264 VAC 370 VDC	ITE (Commercial)			250 mA	4000 V
aimtec AMEL3-3.3SVZ	±1%	0.5 %			Enclosed	26-DIP Module 5 Leads	700 mA	2.3 W	1.46 in	0.71 in	37 mm	0.96 in	24.5 mm	18 mm	Through Hole	1	Universal Input	3.3 V	66 %	85 VAC 100 V	264 VAC 370 VDC	ITE (Commercial)	25 g	0.055 lb
