UT Series
Thermoelectric Peltier Modules UT11,12,F2,3030,TA RT,W6, 30x34x2.4mm
Manufacturer: Tark Thermal Solutions
Catalog
Thermoelectric Peltier Modules UT11,12,F2,3030,TA RT,W6, 30x34x2.4mm
Thermoelectric Peltier Modules UT11,12,F2,3030,TA RT,W6, 30x34x2.4mm
Thermoelectric Peltier Modules UT11,12,F2,3030,TA RT,W6, 30x34x2.4mm
Thermoelectric Peltier Modules UT11,12,F2,3030,TA RT,W6, 30x34x2.4mm
| Part | Type | Size / Dimension [x] | Size / Dimension [y] | Number of Stages | Resistance | Height [z] | Qmax @ Th | Voltage - Max [Max] | Features | Delta Tmax @ Th | Current - Max [Max] | Operating Temperature | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Tark Thermal Solutions | TEC (Thermoelectric Cooler) | ||||||||||||

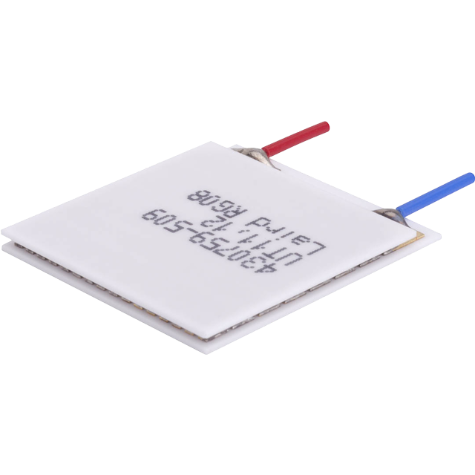

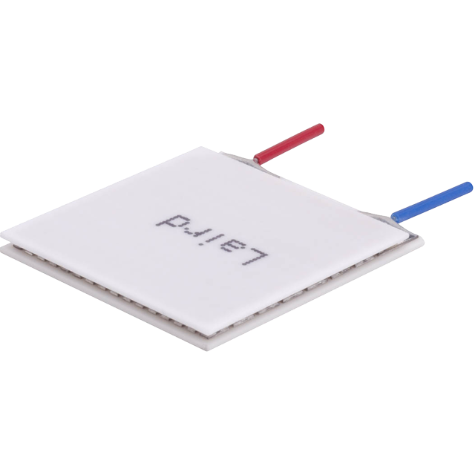

Tark Thermal Solutions | TEC (Thermoelectric Cooler) | 34 mm | 30 mm | 1 | 1.67 Ohms | 2.56 mm | 69 W | 14.5 V | Lead Wires Sealed - Epoxy | 67 °C | 8 A | 80 °C | |
Tark Thermal Solutions | TEC (Thermoelectric Cooler) | 34 mm | 30 mm | 1 | 1.67 Ohms | 2.56 mm | 69 W | 14.5 V | Lead Wires Non-Sealed | 67 °C | 8 A | 80 °C | |
Tark Thermal Solutions | TEC (Thermoelectric Cooler) | 34 mm | 30 mm | 1 | 1.2 Ohms | 14.5 V | Lead Wires Sealed - Silicone RTV | 67 °C | 11.1 A | 80 °C | 2.41 mm | ||

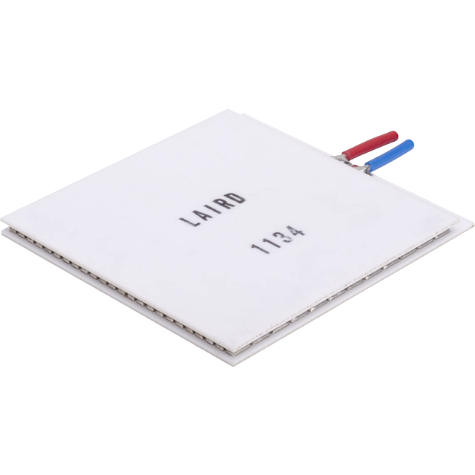

Tark Thermal Solutions | TEC (Thermoelectric Cooler) | 56 mm | 52 mm | 1 | 1.97 Ohms | 3.3 mm | 340.6 W | 36 V | Lead Wires Sealed - Silicone RTV | 68 °C | 15.4 A | 80 °C | |
Tark Thermal Solutions | TEC (Thermoelectric Cooler) | 52 mm | 52 mm | 1 | 1.97 Ohms | 3.3 mm | 340.6 W | 36 V | Lead Wires Sealed - Silicone RTV | 68 °C | 15.4 A | 80 °C | |
Tark Thermal Solutions | TEC (Thermoelectric Cooler) | 26.92 mm | 24.56 mm | 1 | 1.68 Ohms | 1.96 mm | 69 W | 14.4 V | Lead Wires Sealed - Silicone RTV | 69 °C | 7.9 A | 80 °C |
