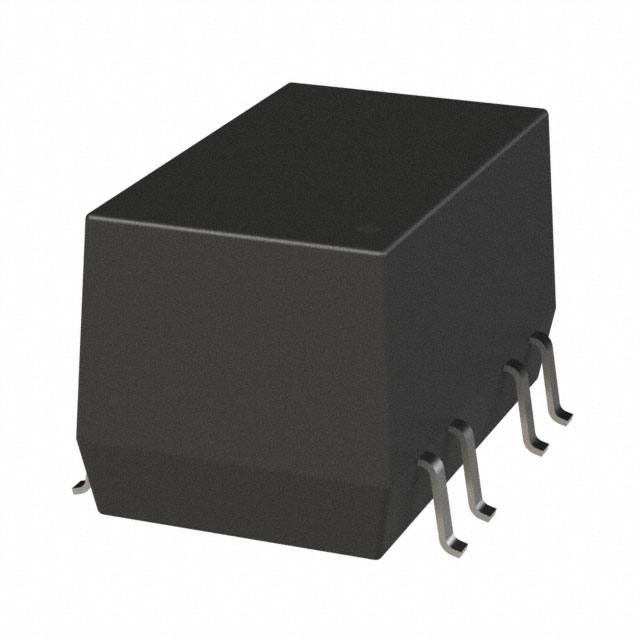

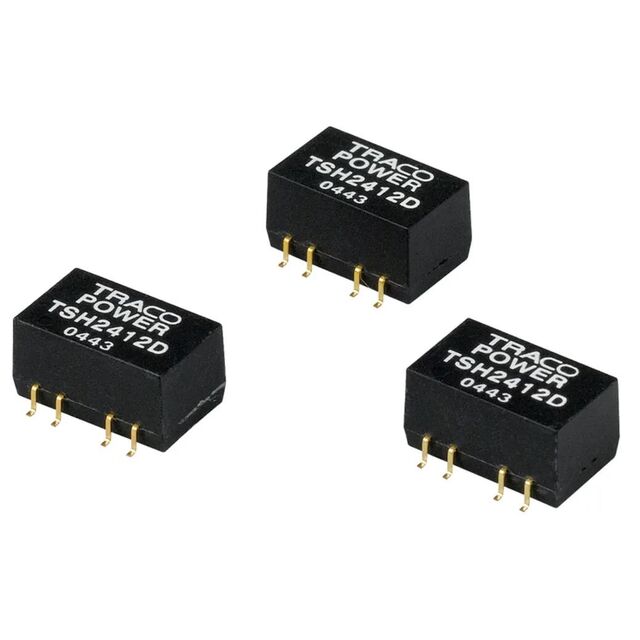

TSH 0505 Series
Manufacturer: Traco Power
Beta
⌘K
DC DC CONVERTER 5V 2W
| Part | Voltage - Input (Max) [Max] | Voltage - Isolation | Package / Case | Power (Watts) | Features | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Min) [Min] | Efficiency | Type | Mounting Type | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Number of Outputs | Current - Output (Max) [Max] | Voltage - Output 1 | Applications | Voltage - Output 2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | 5.5 V | 1000 V | 14-SMD Module 5 Leads | 2 W | SCP | 85 °C | -40 C | 4.5 V | 77 % | Isolated Module | Surface Mount | 0.5 " | 0.36 in | 9.2 mm | 0.37 in | 12.7 mm | 9.3 mm | 1 | 400 mA | 5 V | ITE (Commercial) | |
 Traco Power | 5.5 V | 1000 V | 18-SMD Module 6 Leads | 2 W | SCP | 85 °C | -40 C | 4.5 V | 77 % | Isolated Module | Surface Mount | 0.6 " | 0.36 in | 9.2 mm | 0.37 in | 15.3 mm | 9.3 mm | 2 | 5 V | ITE (Commercial) | -5 V |
