C1644 Series

Catalog

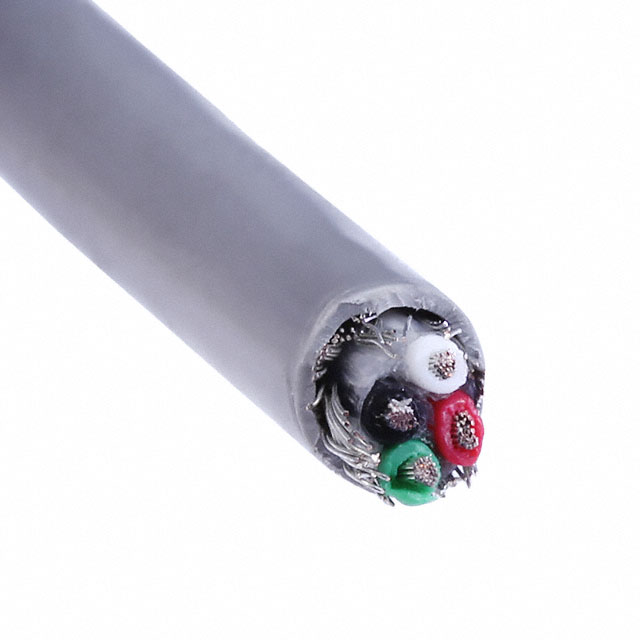

CABLE 4COND 20AWG GRAY SHLD

Part	Length	Length	Wire Gauge	Usage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Strand [custom]	Conductor Strand [custom]	Shield Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Number of Conductors	Conductor Insulation	Voltage	Shield Material	Conductor Material	Jacket Color	Jacket (Insulation) Material	Shield Coverage	Length [x]	Length [x]
Prysmian Group C1644A.18.10	15.24 m 152.4 m	50 ft 500 ft	20 AWG	Communication Control	0.029 in	0.737 mm	26	34 AWG	Braid	6.48 mm	0.255 in	Multi-Conductor	4	Polyethylene (PE)	300 VDC	Copper Tinned	Copper Tinned	Gray	Poly-Vinyl Chloride (PVC)
Prysmian Group C1644A.41.10	304.8 m	1000 ft	20 AWG	Communication Control	0.029 in	0.737 mm	26	34 AWG	Braid	6.48 mm	0.255 in	Multi-Conductor	4	Polyethylene (PE)	300 VDC	Copper Tinned	Copper Tinned	Gray	Poly-Vinyl Chloride (PVC)	80 %
Prysmian Group C1644A.18.10	15.24 m 152.4 m	50 ft 500 ft	20 AWG	Communication Control	0.029 in	0.737 mm	26	34 AWG	Braid	6.48 mm	0.255 in	Multi-Conductor	4	Polyethylene (PE)	300 VDC		Copper Tinned	Gray	Poly-Vinyl Chloride (PVC)		100 ft	30.5 m
