TXL 060 Series
Manufacturer: Traco Power
Beta
⌘K

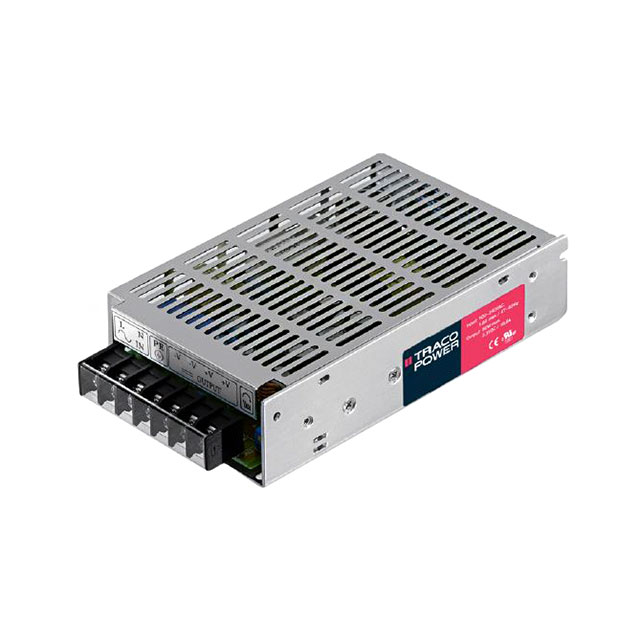

AC/DC POWER SUPPLY SINGLE-OUT 12V 5A 60W 6-PIN
| Part | Efficiency | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Voltage - Input [Min] | Voltage - Input [Max] | Approval Agency | Mounting Type | Applications | Type | Number of Outputs | Current - Output 1 | Voltage - Isolation | Features | Voltage - Output 1 | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | 84 % | 3.23 in | 35.1 mm | 3.9 " | 99.1 mm | 82 mm | 1.38 in | 85 VAC 120 VDC | 264 VAC 375 VDC | CE cURus | Chassis Mount | ITE (Commercial) | Enclosed | 1 | 5 A | 3000 V | Adjustable Output Universal Input | 12 V | 60 W | 70 °C | -20 °C |
Traco Power | 84 % | 3.23 in | 35.1 mm | 3.9 " | 99.1 mm | 82 mm | 1.38 in | 85 VAC 120 VDC | 264 VAC 375 VDC | CE cURus | Chassis Mount | ITE (Commercial) | Enclosed | 1 | 2.5 A | 3000 V | Adjustable Output Universal Input | 24 V | 60 W | 70 °C | -20 °C |
