A3-32PA Series

Catalog

CONN HEADER SMD 32POS 2MM

Part	Contact Finish Thickness - Post	Mated Stacking Heights [z]	Fastening Type	Voltage Rating	Mounting Type	Contact Type	Shrouding	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Row Spacing - Mating	Row Spacing - Mating	Connector Type	Insulation Height	Insulation Height	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Contact Material	Contact Finish - Post	Termination	Number of Rows [custom]	Number of Positions Loaded	Insulation Color	Insulation Material	Contact Finish - Mating

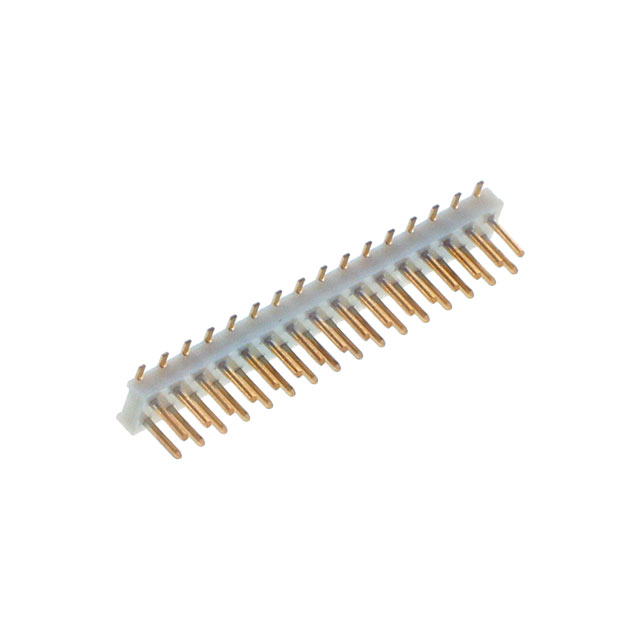

Hirose Electric Co Ltd A3-32PA-2SV(71)	Flash	6 mm 8.8 mm	Push-Pull	200 V	Surface Mount	Male Pin	Unshrouded	0.079 "	2 mm	-55 C	85 °C	Square	8 µin	0.203 µm	Board to Board Cable	2 mm	0.079 in	Header	1.8 mm	0.071 in	UL94 V-0	3.5 mm	0.138 in	Brass	Gold	Solder	2	All	Brown	Polyphenylene Sulfide (PPS)	Gold
Hirose Electric Co Ltd A3-32PA-2SV		6 mm 8.8 mm	Push-Pull	200 V	Surface Mount	Male Pin	Unshrouded	0.079 "	2 mm	-55 C	85 °C	Square			Board to Board Cable	2 mm	0.079 in	Header	1.8 mm	0.071 in	UL94 V-0	3.5 mm	0.138 in	Brass		Solder	2	All	Brown	Polyphenylene Sulfide (PPS)	Gold
