C0720 Series

Catalog

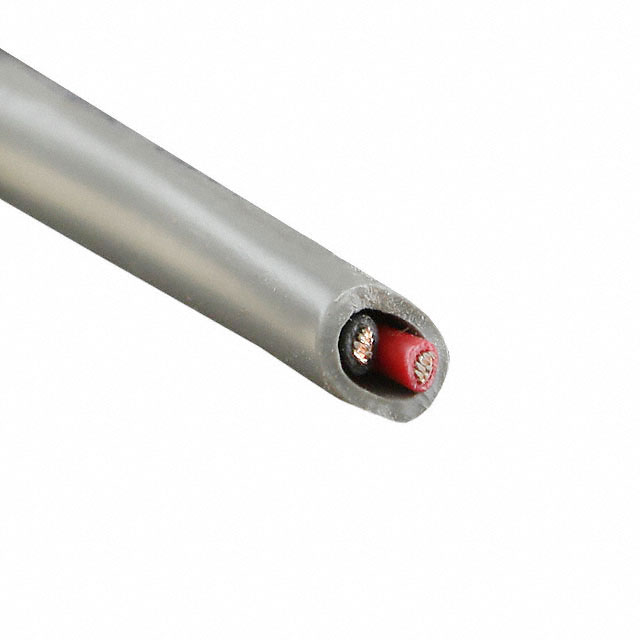

CABLE 2CON 22AWG GRAY SHLD

Part	Jacket Color	Usage	Conductor Insulation	Operating Temperature [Max]	Operating Temperature [Min]	Length	Length	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Features	Jacket (Insulation) Material	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Ratings	Shield Type	Wire Gauge	Voltage	Number of Conductors	Length [x]	Length [x]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Coverage	Shield Material
Prysmian Group C0720A.41.10	Gray	Computer	Poly-Vinyl Chloride (PVC)	80 °C	-20 ░C	15.24 m 152.4 m 304.8 m	50 ft 500 ft 1000 ft	Multi-Conductor	30 AWG	7	Drain Wire	Poly-Vinyl Chloride (PVC)	Copper Annealed Tinned	0.813 mm	0.032 in	ASTM B-33	Foil	22 AWG	300 VDC	2	100 ft	30.5 m	0.169 in	4.29 mm
Prysmian Group C0720A.18.10	Gray	Computer	Poly-Vinyl Chloride (PVC)	80 °C	-20 ░C	152.4 m	500 ft	Multi-Conductor	30 AWG	7	Drain Wire	Poly-Vinyl Chloride (PVC)	Copper Annealed Tinned	0.813 mm	0.032 in	ASTM B-33	Foil	22 AWG	300 VDC	2			0.169 in	4.29 mm	100 %	Flexfoil®
Prysmian Group C0720A.41.10	Gray	Computer	Poly-Vinyl Chloride (PVC)	80 °C	-20 ░C	152.4 m 304.8 m	500 ft 1000 ft	Multi-Conductor	30 AWG	7	Drain Wire	Poly-Vinyl Chloride (PVC)	Copper Annealed Tinned	0.813 mm	0.032 in	ASTM B-33	Foil	22 AWG	300 VDC	2			0.169 in	4.29 mm	100 %	Flexfoil®
