AD9211 Series

10-Bit, 200 MSPS/250 MSPS/300 MSPS, 1.8 V Analog-to-Digital Converter

Catalog

10-Bit, 200 MSPS/250 MSPS/300 MSPS, 1.8 V Analog-to-Digital Converter

Part	Mounting Type	Sampling Rate (Per Second)	Configuration	Number of Bits [custom]	Architecture	Supplier Device Package	Data Interface	Input Type	Package / Case	Voltage - Supply, Analog [Max]	Voltage - Supply, Analog [Min]	Number of A/D Converters	Operating Temperature [Max]	Operating Temperature [Min]	Ratio - S/H:ADC	Voltage - Supply, Digital [Min]	Voltage - Supply, Digital [Max]	Number of Inputs	Features	Reference Type	Supplied Contents	Input Range [Min]	Input Range [Max]	Utilized IC / Part
Analog Devices AD9211BCPZ-250	Surface Mount	250 M	S/H-ADC	10	Pipelined	56-LFCSP-VQ (8x8)	LVDS - Parallel	Differential Single Ended	56-VFQFN Exposed Pad CSP	1.9 V	1.7 V	1	85 °C	-40 °C	1:1	1.7 V	1.9 V	1	Simultaneous Sampling	Internal
Analog Devices AD9211BCPZ-200	Surface Mount	200 M	S/H-ADC	10	Pipelined	56-LFCSP-VQ (8x8)	LVDS - Parallel	Differential Single Ended	56-VFQFN Exposed Pad CSP	1.9 V	1.7 V	1	85 °C	-40 °C	1:1	1.7 V	1.9 V	1	Simultaneous Sampling	Internal

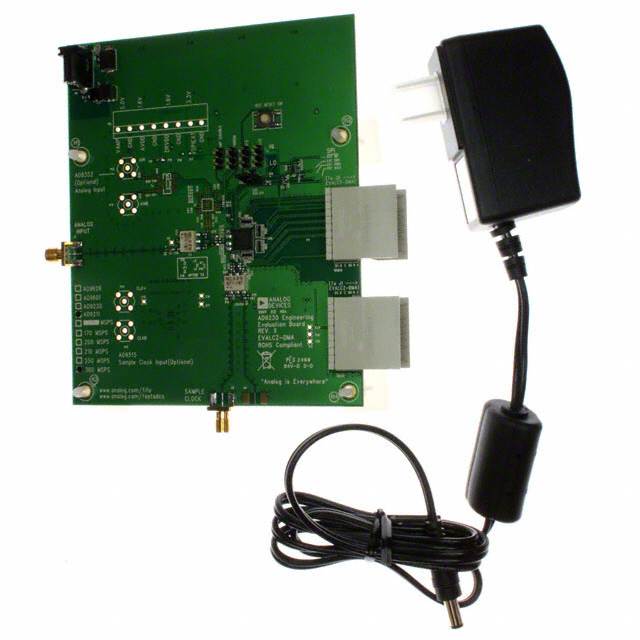

Analog Devices AD9211-300EBZ		300 M		10			Serial					1									Board(s) Power Supply	0.98 V	1.5 V	AD9211

Catalog

10-Bit, 200 MSPS/250 MSPS/300 MSPS, 1.8 V Analog-to-Digital Converter

Key Features

• SNR = 60.1 dBFS @ fINup to 70 MHz @300 MSPS

• ENOB of 9.7 @ fINup to 70 MHz @ 300 MSPS (−1.0 dBFS)

• SFDR = −80 dBc @ fINup to 70 MHz @ 300 MSPS (−1.0 dBFS)

• Excellent linearityDNL = ±0.1 LSB typicalINL = ±0.2 LSB typical

• LVDS at 300 MSPS (ANSI-644 levels)

• 700 MHz full power analog bandwidth

• On-chip reference, no external decoupling required

• Integrated input buffer and track-and-hold

• Low power dissipation437 mW @ 300 MSPS—LVDS SDR mode410 mW @ 300 MSPS—LVDS DDR mode

• Programmable input voltage range1.0 V to 1.5 V, 1.25 V nominal

• 1.8 V analog and digital supply operation

• Selectable output data format (offset binary, twos complement, Gray code)

Description

The AD9211 is a 10-bit monolithic sampling analog-to-digital converter optimized for high performance, low power, and ease of use. The product operates at up to a 300 MSPS conversion rate and is optimized for outstanding dynamic performance in wideband carrier and broadband systems. All necessary functions, including a track-and-hold (T/H) and voltage reference, are included on the chip to provide a complete signal conversion solution.The ADC requires a 1.8 V analog voltage supply and a differential clock for full performance operation. The digital outputs are LVDS (ANSI-644) compatible and support either twos complement, offset binary format, or Gray code. A data clock output is available for proper output data timing.Fabricated on an advanced CMOS process, the AD9211 is available in a 56-lead LFCSP, specified over the industrial temperature range (−40°C to +85°C).PRODUCT HIGHLIGHTSHigh Performance—Maintains 60.1 dBFS SNR @ 300 MSPS with a 70 MHz input.Low Power—Consumes only 410 mW @ 300 MSPS.Ease of Use—LVDS output data and output clock signal allow interface to current FPGA technology. The on-chip reference and sample-and-hold provide flexibility in system design. Use of a single 1.8 V supply simplifies system power supply design.Serial Port Control—Standard serial port interface supports various product functions, such as data formatting, disabling the clock duty cycle stabilizer, power-down, gain adjust, and output test pattern generation.Pin-Compatible Family—12-bit pin-compatible family offered as AD9230.APPLICATIONSWireless and wired broadband communicationsCable reverse pathCommunications test equipmentRadar and satellite subsystemsPower amplifier linearization
