MIC2130 Series
Manufacturer: Microchip Technology
Beta
⌘K
HIGH VOLTAGE 150KHZ SYNCHRONOUS BUCK CONTROL 16 TSSOP 4.4MM TUBE ROHS COMPLIANT: YES
| Part | Package / Case [custom] | Package / Case | Package / Case [custom] | Frequency - Switching | Topology | Output Phases | Supplier Device Package | Number of Outputs | Output Configuration | Duty Cycle (Max) | Synchronous Rectifier | Output Type | Function | Operating Temperature [Min] | Operating Temperature [Max] | Clock Sync | Control Features | Mounting Type | Voltage - Supply (Vcc/Vdd) [Min] | Voltage - Supply (Vcc/Vdd) [Max] | Duty Cycle (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Microchip Technology | 0.173 " | 16-TSSOP Exposed Pad | 4.4 mm | 400 kHz | Buck | 1 | 16-ETSSOP | 1 | Positive | 80 % | Transistor Driver | Step-Down | -40 °C | 125 ¯C | Current Limit Enable Power Good Soft Start | Surface Mount | 8 V | 40 V | |||
Microchip Technology | 0.173 " | 16-TSSOP Exposed Pad | 4.4 mm | Buck | 1 | 16-ETSSOP | 1 | Positive | Transistor Driver | Step-Down | -40 °C | 125 ¯C | Current Limit Enable Power Good Soft Start | Surface Mount | 8 V | 40 V | 92 % | ||||

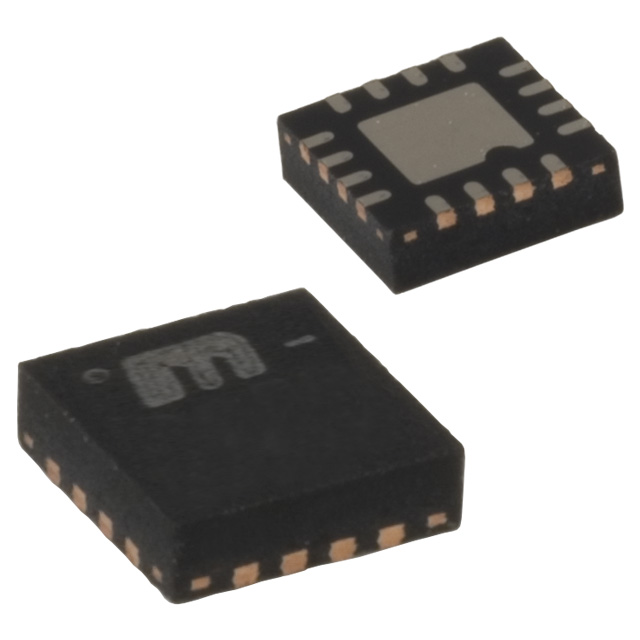

 Microchip Technology | 16-MLF® 16-VQFN Exposed Pad | Buck | 1 | 16-MLF® (4x4) | 1 | Positive | Transistor Driver | Step-Down | -40 °C | 125 ¯C | Current Limit Enable Power Good Soft Start | Surface Mount | 8 V | 40 V | 92 % | ||||||
Microchip Technology | 16-MLF® 16-VQFN Exposed Pad | 400 kHz | Buck | 1 | 16-MLF® (4x4) | 1 | Positive | 80 % | Transistor Driver | Step-Down | -40 °C | 125 ¯C | Current Limit Enable Power Good Soft Start | Surface Mount | 8 V | 40 V |
