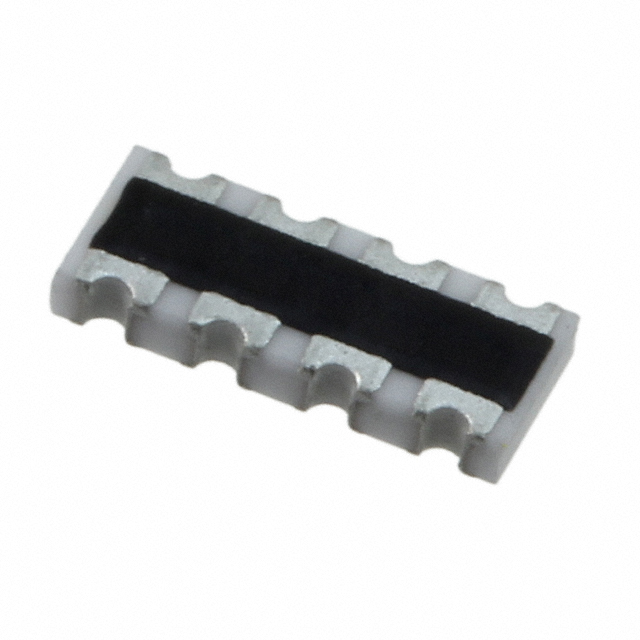

EXB-S8 Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K
RES ARRAY
| Part | Number of Resistors | Circuit Type | Package / Case | Mounting Type | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Operating Temperature [Min] | Operating Temperature [Max] | Supplier Device Package | Number of Pins | Tolerance | Temperature Coefficient | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Tolerance | Resistance (Ohms) | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | 4 | Isolated | 2009 Concave Long Side Terminals | Surface Mount | 0.035 " | 0.9 mm | -55 °C | 125 °C | 2009 | 8 | 5 % | 200 ppm/°C | 0.2 in | 0.087 in | 5.08 mm | 2.2 mm | |||
Panasonic Industrial Automation Sales | 4 | Isolated | 2009 Concave Long Side Terminals | Surface Mount | 0.035 " | 0.9 mm | -55 °C | 125 °C | 2009 | 8 | 0.2 in | 0.087 in | 5.08 mm | 2.2 mm | Jumper | 0 Ohms | |||
Panasonic Industrial Automation Sales | 4 | Isolated | 2009 Concave Long Side Terminals | Surface Mount | 0.035 " | 0.9 mm | -55 °C | 125 °C | 2009 | 8 | 5 % | 200 ppm/°C | 0.2 in | 0.087 in | 5.08 mm | 2.2 mm | 150 Ohms | ||
Panasonic Industrial Automation Sales | 4 | Isolated | 2009 Concave Long Side Terminals | Surface Mount | 0.035 " | 0.9 mm | -55 °C | 125 °C | 2009 | 8 | 5 % | 200 ppm/°C | 0.2 in | 0.087 in | 5.08 mm | 2.2 mm | 22 Ohms | ||
Panasonic Industrial Automation Sales | 4 | Isolated | 2009 Concave Long Side Terminals | Surface Mount | 0.035 " | 0.9 mm | -55 °C | 125 °C | 2009 | 8 | 5 % | 200 ppm/°C | 0.2 in | 0.087 in | 5.08 mm | 2.2 mm | 62k | ||
Panasonic Industrial Automation Sales | 4 | Isolated | 2009 Concave Long Side Terminals | Surface Mount | 0.035 " | 0.9 mm | -55 °C | 125 °C | 2009 | 8 | 5 % | 200 ppm/°C | 0.2 in | 0.087 in | 5.08 mm | 2.2 mm | 91 Ohms | ||
Panasonic Industrial Automation Sales | 4 | Isolated | 2009 Concave Long Side Terminals | Surface Mount | 0.035 " | 0.9 mm | -55 °C | 125 °C | 2009 | 8 | 5 % | 200 ppm/°C | 0.2 in | 0.087 in | 5.08 mm | 2.2 mm | |||
Panasonic Industrial Automation Sales | 4 | Isolated | 2009 Concave Long Side Terminals | Surface Mount | 0.035 " | 0.9 mm | -55 °C | 125 °C | 2009 | 8 | 5 % | 200 ppm/°C | 0.2 in | 0.087 in | 5.08 mm | 2.2 mm | 1.1 kOhms | ||
Panasonic Industrial Automation Sales | 4 | Isolated | 2009 Concave Long Side Terminals | Surface Mount | 0.035 " | 0.9 mm | -55 °C | 125 °C | 2009 | 8 | 5 % | 200 ppm/°C | 0.2 in | 0.087 in | 5.08 mm | 2.2 mm | 130 Ohms | ||
Panasonic Industrial Automation Sales | 4 | Isolated | 2009 Concave Long Side Terminals | Surface Mount | 0.035 " | 0.9 mm | -55 °C | 125 °C | 2009 | 8 | 5 % | 200 ppm/°C | 0.2 in | 0.087 in | 5.08 mm | 2.2 mm |
