RP1E090 Series

Catalog

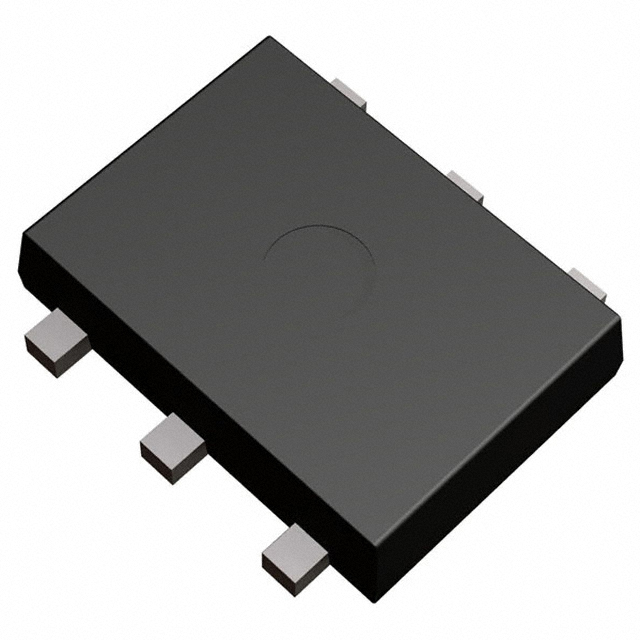

MOSFET N-CH 30V 9A MPT6

Part	Package / Case	Mounting Type	Gate Charge (Qg) (Max) @ Vgs [Max]	Current - Continuous Drain (Id) @ 25°C	Operating Temperature	Drain to Source Voltage (Vdss)	Drive Voltage (Max Rds On, Min Rds On) [Max]	Drive Voltage (Max Rds On, Min Rds On) [Min]	Vgs (Max)	Vgs(th) (Max) @ Id	FET Type	Rds On (Max) @ Id, Vgs [Max]	Power Dissipation (Max)	Technology	Input Capacitance (Ciss) (Max) @ Vds	Supplier Device Package	Gate Charge (Qg) (Max) @ Vgs	Rds On (Max) @ Id, Vgs	Input Capacitance (Ciss) (Max) @ Vds [Max]
Rohm Semiconductor RP1E090XNTCR	6-SMD Flat Leads	Surface Mount	6.8 nC	9 A	150 °C	30 V	4 V	10 V	20 V	2.5 V	N-Channel	17 mOhm	2 W	MOSFET (Metal Oxide)	440 pF	MPT6
Rohm Semiconductor RP1E090RPTR	6-SMD Flat Leads	Surface Mount		9 A	150 °C	30 V	4 V	10 V	20 V	2.5 V	P-Channel		2 W	MOSFET (Metal Oxide)		MPT6	30 nC	16.9 mOhm	3000 pF
