Applications processor
Key Features
• Low-Power, High-Performance CMOS Technology0.13-µm Technology1.6-V Core VoltageTI925T (MPU) ARM9TDMI™ CoreSupport 32-Bit and 16-Bit (Thumb® Mode) Instruction Sets16K-Byte Instruction Cache8K-Byte Data CacheData and Program Memory Management Units (MMUs)Two 64-Entry Translation Look-Aside Buffers (TLBs) for MMUs17-Word Write BufferTMS320C55x™ (C55x™) DSP CoreOne/Two Instructions Executed per CycleDual Multipliers (Two Multiply-Accumulates per Cycle)Two Arithmetic/Logic UnitsOne Internal Program BusFive Internal Data/Operand Buses (3 Read Buses and 2 Write Buses)32K x 16-Bit On-Chip Dual-Access RAM (DARAM) (64K Bytes)48K x 16-Bit On-Chip Single-Access RAM (SARAM) (96K Bytes)16K x 16-Bit On-Chip ROM (32K Bytes)Instruction Cache (24K Bytes)Video Hardware Accelerators for DCT, IDCT, Pixel Interpolation, and Motion Estimation for Video Compression192K Bytes of Shared Internal SRAMMemory Traffic Controller (TC)16-Bit EMIFS External Memory Interface to Access up to 128M Bytes of Flash, ROM, or ASRAM16-Bit EMIFF External Memory Interface to Access up to 64M Bytes of SDRAM9-Channel System DMA ControllerDSP Memory Management UnitEndianism Conversion LogicDigital Phase-Locked Loop (DPLL) for MPU/DSP/TC Clocking ControlDSP PeripheralsThree 32-Bit Timers and Watchdog TimerLevel1/Level2 Interrupt HandlersSix-Channel DMA ControllerTwo Multichannel Buffered Serial PortsTwo Multichannel Serial InterfacesTI925T PeripheralsThree 32-Bit Timers and Watchdog Timer32-kHz TimerLevel1/Level2 Interrupt HandlersUSB (Full/Low Speed) Host Interface With up to 3 PortsUSB (Full Speed) Function InterfaceOne Integrated USB Transceiver for Either Host or FunctionMultichannel Buffered Serial PortInter-Integrated Circuit (I2C) Master and Slave InterfaceMicrowire™ Serial InterfaceMultimedia Card (MMC) and Secure Digital (SD) InterfaceHDQ/1-Wire® InterfaceCamera Interface for CMOS SensorsETM9 Trace Module for TI925T DebugKeyboard Matrix Interface (6 x 5 or 8 x 8)Up to Ten MPU General-Purpose I/OsPulse-Width Tone (PWT) InterfacePulse-Width Light (PWL) InterfaceTwo LED Pulse Generators (LPGs)Real-Time Clock (RTC)LCD Controller With Dedicated System DMA ChannelShared PeripheralsThree Universal Asynchronous Receiver/Transmitters (UARTs) (One Supporting SIR Mode for IrDA)Four Interprocessor MailboxesUp to 14 Shared General-Purpose I/OsIndividual Power-Saving Modes for MPU/DSP/TCOn-Chip Scan-Based Emulation LogicIEEE Std 1149.1(JTAG) Boundary Scan LogicTwo 289-Ball MicroStar BGA™ (Ball Grid Array) Package Options (GZG and GDY Suffixes)TMS320C55x, C55x, and MicroStar BGA are trademarks of Texas Instruments.ARM9TDMI is a trademark of ARM Limited.Thumb is a registered trademark of ARM Limited.Microwire is a trademark of National Semiconductor Corporation.1-Wire is a registered trademark of Dallas Semiconductor Corporation.IEEE Standard 1149.1-1990 Standard Test-Access Port and Boundary Scan Architecture.OMAP and DSP/BIOS are trademarks of Texas Instruments.Bluetooth is a trademark owned by Bluetooth SIG, Inc.Windows is a registered trademark of Microsoft Corporation.Other trademarks are the property of their respective owners.Low-Power, High-Performance CMOS Technology0.13-µm Technology1.6-V Core VoltageTI925T (MPU) ARM9TDMI™ CoreSupport 32-Bit and 16-Bit (Thumb® Mode) Instruction Sets16K-Byte Instruction Cache8K-Byte Data CacheData and Program Memory Management Units (MMUs)Two 64-Entry Translation Look-Aside Buffers (TLBs) for MMUs17-Word Write BufferTMS320C55x™ (C55x™) DSP CoreOne/Two Instructions Executed per CycleDual Multipliers (Two Multiply-Accumulates per Cycle)Two Arithmetic/Logic UnitsOne Internal Program BusFive Internal Data/Operand Buses (3 Read Buses and 2 Write Buses)32K x 16-Bit On-Chip Dual-Access RAM (DARAM) (64K Bytes)48K x 16-Bit On-Chip Single-Access RAM (SARAM) (96K Bytes)16K x 16-Bit On-Chip ROM (32K Bytes)Instruction Cache (24K Bytes)Video Hardware Accelerators for DCT, IDCT, Pixel Interpolation, and Motion Estimation for Video Compression192K Bytes of Shared Internal SRAMMemory Traffic Controller (TC)16-Bit EMIFS External Memory Interface to Access up to 128M Bytes of Flash, ROM, or ASRAM16-Bit EMIFF External Memory Interface to Access up to 64M Bytes of SDRAM9-Channel System DMA ControllerDSP Memory Management UnitEndianism Conversion LogicDigital Phase-Locked Loop (DPLL) for MPU/DSP/TC Clocking ControlDSP PeripheralsThree 32-Bit Timers and Watchdog TimerLevel1/Level2 Interrupt HandlersSix-Channel DMA ControllerTwo Multichannel Buffered Serial PortsTwo Multichannel Serial InterfacesTI925T PeripheralsThree 32-Bit Timers and Watchdog Timer32-kHz TimerLevel1/Level2 Interrupt HandlersUSB (Full/Low Speed) Host Interface With up to 3 PortsUSB (Full Speed) Function InterfaceOne Integrated USB Transceiver for Either Host or FunctionMultichannel Buffered Serial PortInter-Integrated Circuit (I2C) Master and Slave InterfaceMicrowire™ Serial InterfaceMultimedia Card (MMC) and Secure Digital (SD) InterfaceHDQ/1-Wire® InterfaceCamera Interface for CMOS SensorsETM9 Trace Module for TI925T DebugKeyboard Matrix Interface (6 x 5 or 8 x 8)Up to Ten MPU General-Purpose I/OsPulse-Width Tone (PWT) InterfacePulse-Width Light (PWL) InterfaceTwo LED Pulse Generators (LPGs)Real-Time Clock (RTC)LCD Controller With Dedicated System DMA ChannelShared PeripheralsThree Universal Asynchronous Receiver/Transmitters (UARTs) (One Supporting SIR Mode for IrDA)Four Interprocessor MailboxesUp to 14 Shared General-Purpose I/OsIndividual Power-Saving Modes for MPU/DSP/TCOn-Chip Scan-Based Emulation LogicIEEE Std 1149.1(JTAG) Boundary Scan LogicTwo 289-Ball MicroStar BGA™ (Ball Grid Array) Package Options (GZG and GDY Suffixes)TMS320C55x, C55x, and MicroStar BGA are trademarks of Texas Instruments.ARM9TDMI is a trademark of ARM Limited.Thumb is a registered trademark of ARM Limited.Microwire is a trademark of National Semiconductor Corporation.1-Wire is a registered trademark of Dallas Semiconductor Corporation.IEEE Standard 1149.1-1990 Standard Test-Access Port and Boundary Scan Architecture.OMAP and DSP/BIOS are trademarks of Texas Instruments.Bluetooth is a trademark owned by Bluetooth SIG, Inc.Windows is a registered trademark of Microsoft Corporation.Other trademarks are the property of their respective owners.
Description
AI
The OMAP5910 is a highly integrated hardware and software platform, designed to meet the application processing needs of next-generation embedded devices.
The OMAP™ platform enables OEMs and ODMs to quickly bring to market devices featuring rich user interfaces, high processing performance, and long battery life through the maximum flexibility of a fully integrated mixed processor solution.
The dual-core architecture provides benefits of both DSP and RISC technologies, incorporating a TMS320C55x DSP core and a high-performance TI925T ARM core.

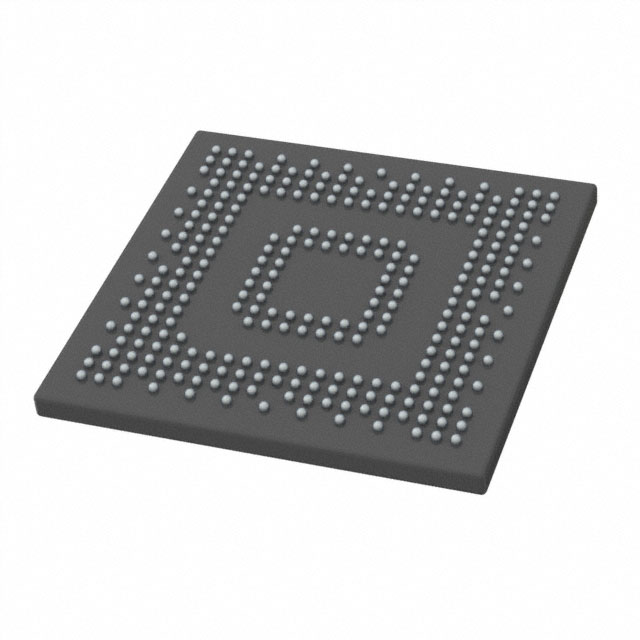

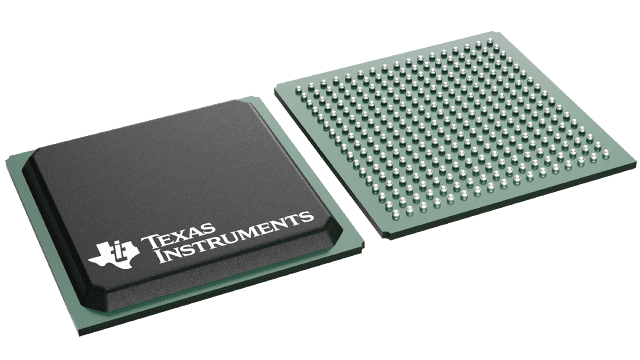

The OMAP5910 device is designed to run leading open and embedded RISC-based operating systems, as well as the Texas Instruments (TI) DSP/BIOS™ software kernel foundation, and is available in a 289-ball MicroStar BGA package.
The OMAP5910 is targeted at the following applications:
The OMAP5910 is a highly integrated hardware and software platform, designed to meet the application processing needs of next-generation embedded devices.
The OMAP™ platform enables OEMs and ODMs to quickly bring to market devices featuring rich user interfaces, high processing performance, and long battery life through the maximum flexibility of a fully integrated mixed processor solution.
The dual-core architecture provides benefits of both DSP and RISC technologies, incorporating a TMS320C55x DSP core and a high-performance TI925T ARM core.
The OMAP5910 device is designed to run leading open and embedded RISC-based operating systems, as well as the Texas Instruments (TI) DSP/BIOS™ software kernel foundation, and is available in a 289-ball MicroStar BGA package.
The OMAP5910 is targeted at the following applications:
