C7602A Series
Manufacturer: Prysmian Group
Beta
⌘K
HOOK-UP STRND 22AWG BROWN 1000'
| Part | Ratings | Voltage | Wire Gauge | Operating Temperature [Min] | Operating Temperature [Max] | Qualification | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Length | Length | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | ASTM B-33 | 1 kV | 22 AWG | -12 °C | 90 °C | MIL-W-76B | 30 AWG | 7 | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | 0.41 mm | 0.016 in | Hook-Up | Copper Annealed Tinned | 0.062 in | 1.57 mm | Brown |

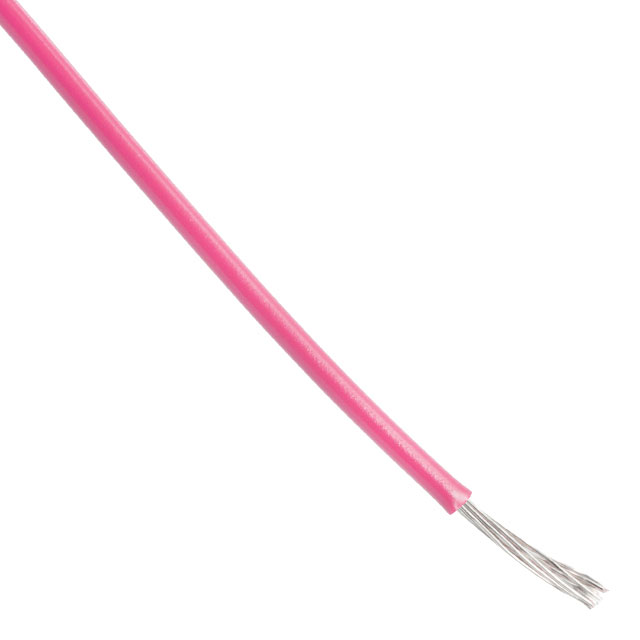

 Prysmian Group | ASTM B-33 | 1 kV | 22 AWG | -12 °C | 90 °C | MIL-W-76B | 30 AWG | 7 | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | 0.41 mm | 0.016 in | Hook-Up | Copper Annealed Tinned | 0.062 in | 1.57 mm | Pink |
 Prysmian Group | ASTM B-33 | 1 kV | 22 AWG | -12 °C | 90 °C | MIL-W-76B | 30 AWG | 7 | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | 0.41 mm | 0.016 in | Hook-Up | Copper Annealed Tinned | 0.062 in | 1.57 mm | Orange |
 Prysmian Group | ASTM B-33 | 1 kV | 22 AWG | -12 °C | 90 °C | MIL-W-76B | 30 AWG | 7 | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | 0.41 mm | 0.016 in | Hook-Up | Copper Annealed Tinned | 0.062 in | 1.57 mm | Violet |
