FX23 Series

Catalog

CONN RCPT

Part	Connector Type	Pitch [x]	Pitch [x]	Mounting Type	Height Above Board	Height Above Board	Features	Number of Rows	Number of Positions	Contact Finish	Number of Positions [custom]	Number of Positions [custom]	Contact Finish Thickness	Contact Finish Thickness	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]
Hirose Electric USA, Inc. FX23-100S-0.5SVB	Center Strip Contacts Receptacle	0.5 mm	0.02 in	Surface Mount	6.8 mm	0.268 in	Board Guide	2	100	Gold

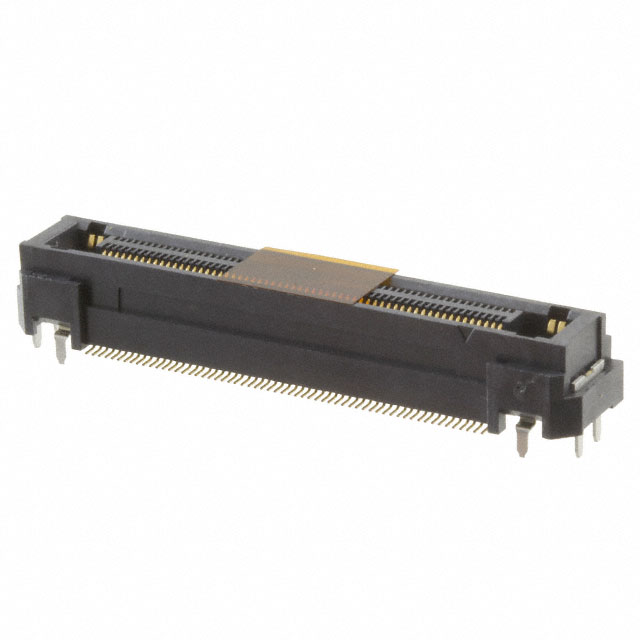

Hirose Electric USA, Inc. FX23-120S-0.5SV	Center Strip Contacts Receptacle	0.5 mm	0.02 in	Surface Mount	6.8 mm	0.268 in	Board Guide	2	124	Gold	4	120	4 Áin	0.1 Ám	15 mm 20 mm

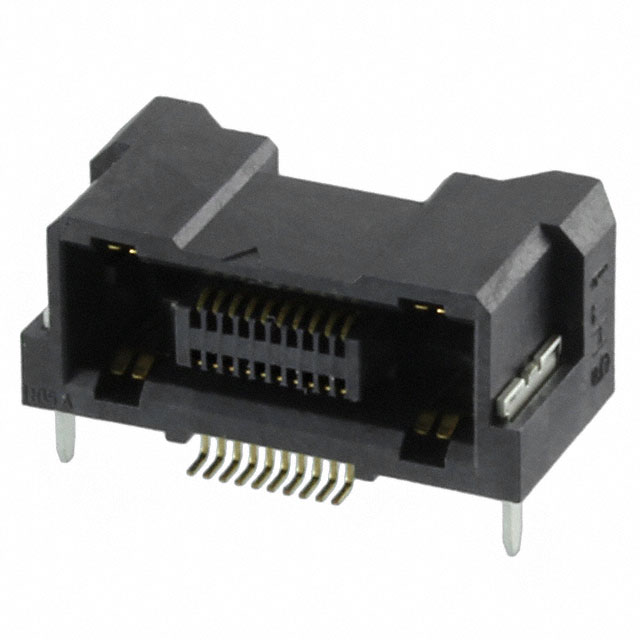

Hirose Electric USA, Inc. FX23-20S-0.5SH	Center Strip Contacts Receptacle	0.5 mm	0.02 in	Surface Mount Right Angle			Board Guide	2	24	Gold	4		4 Áin	0.1 Ám		0.287 in	7.3 mm

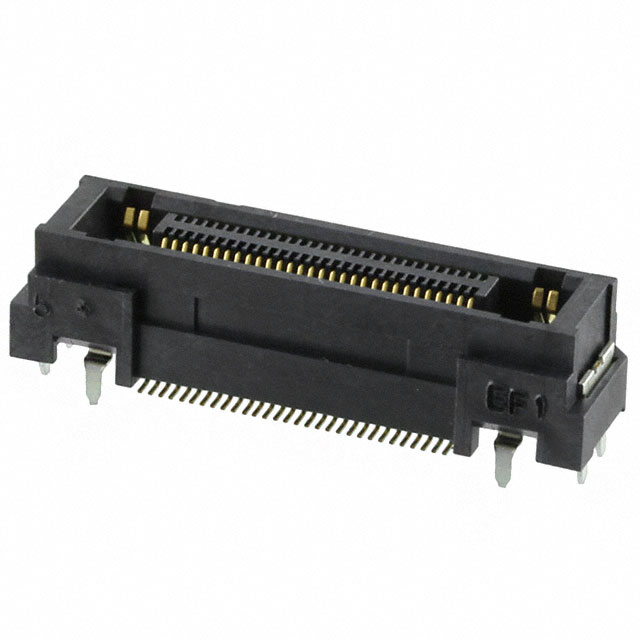

Hirose Electric USA, Inc. FX23-60S-0.5SV(20)	Center Strip Contacts Receptacle	0.5 mm	0.02 in	Surface Mount	6.8 mm	0.268 in	Board Guide	2	60	Gold					15 mm 20 mm

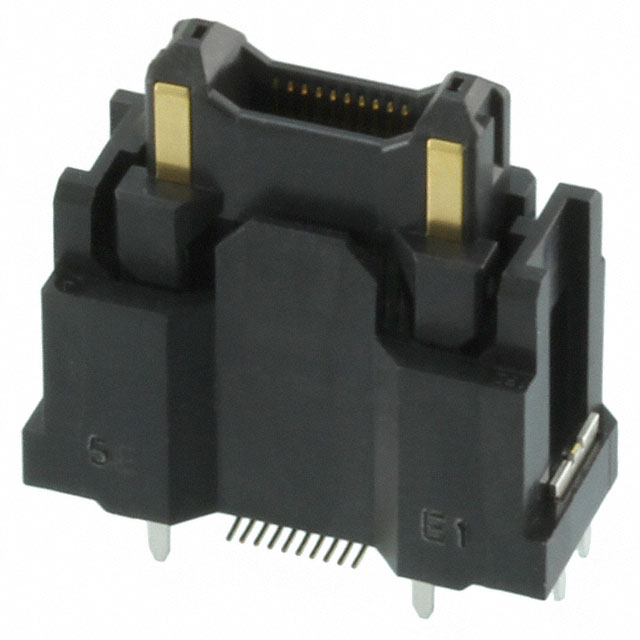

Hirose Electric USA, Inc. FX23-20P-0.5SV20	Header Outer Shroud Contacts	0.5 mm	0.02 in	Surface Mount			Board Guide	2	24	Gold	4		4 Áin	0.1 Ám	20 mm 30 mm	0.703 in	17.85 mm
Hirose Electric USA, Inc. FX23-120S-0.5SVB	Center Strip Contacts Receptacle	0.5 mm	0.02 in	Surface Mount	6.8 mm	0.268 in	Board Guide	2	124	Gold	4	120	3.94 µin	0.1 Ám	15 mm 20 mm

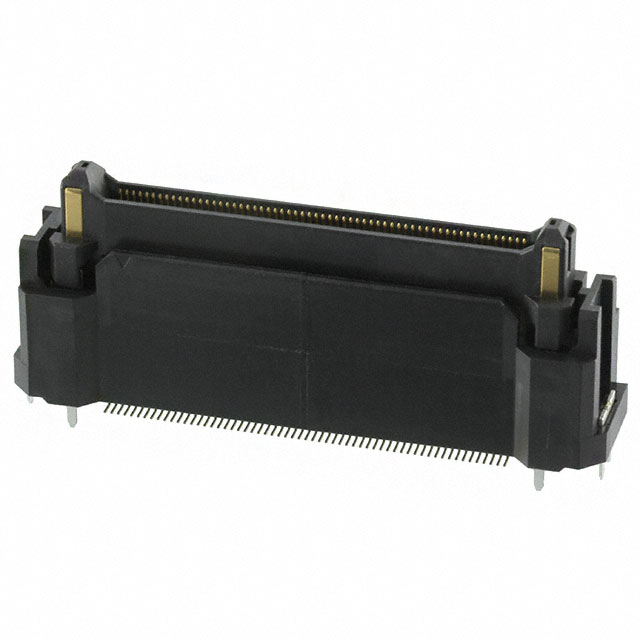

Hirose Electric USA, Inc. FX23-120P-0.5SV20	Header Outer Shroud Contacts	0.5 mm	0.02 in	Surface Mount			Board Guide	2	124	Gold	4	120	4 Áin	0.1 Ám	20 mm 30 mm	0.703 in	17.85 mm
Hirose Electric USA, Inc. FX23-20S-0.5SV10B	Center Strip Contacts Receptacle	0.5 mm	0.02 in	Surface Mount			Board Guide	2	20	Gold					25 mm 30 mm	0.661 "	16.8 mm
Hirose Electric USA, Inc. FX23-20P-0.5SV15B	Header Outer Shroud Contacts	0.5 mm	0.02 in	Surface Mount	12.85 mm	0.506 "	Board Guide	2	24	Gold	4		3.94 µin	0.1 Ám	15 mm 25 mm
Hirose Electric USA, Inc. FX23-80P-0.5SV15B	Header Outer Shroud Contacts	0.5 mm	0.02 in	Surface Mount	12.85 mm	0.506 "	Board Guide	2	4 80 84	Gold			3.94 µin	0.1 Ám	15 mm 25 mm
