DF13A Series

Catalog

CONN HEADER SMD R/A 6POS 1.25MM

Part	Insulation Height	Insulation Height	Contact Type	Number of Rows	Contact Finish - Mating	Voltage Rating	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Shrouding	Fastening Type	Number of Positions	Material Flammability Rating	Contact Shape	Style	Mounting Type	Connector Type	Insulation Color	Insulation Material	Termination	Features	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mated Stacking Heights	Row Spacing - Mating	Row Spacing - Mating	Contact Length - Mating	Contact Length - Mating	Number of Rows [custom]

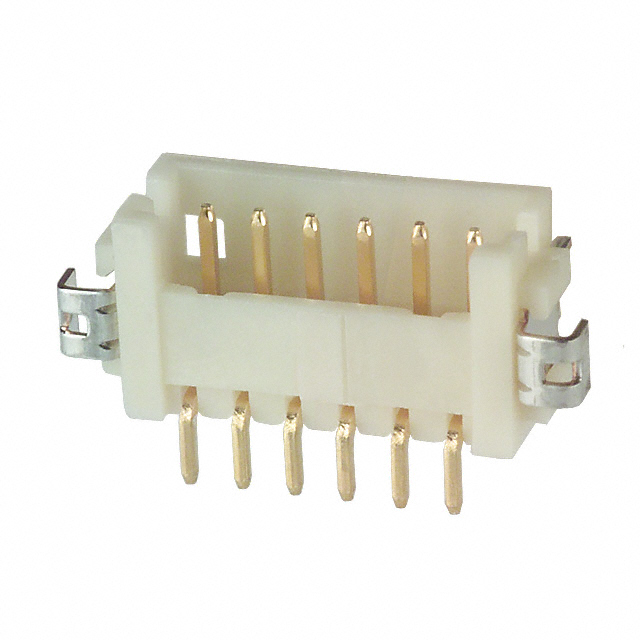

Hirose Electric Co Ltd DF13A-6P-1.25H(51)	0.142 in	3.6 mm	Male Pin	1	Gold	150 VDC	All	0.049 in	1.25 mm	8 µin	0.203 µm	85 °C	-35 °C	Brass	Shrouded - 4 Wall	Detent Lock	6	UL94 V-0	Square	Board to Cable/Wire	Right Angle Surface Mount	Header	Beige	Nylon Polyamide (PA)	Solder	Solder Retention

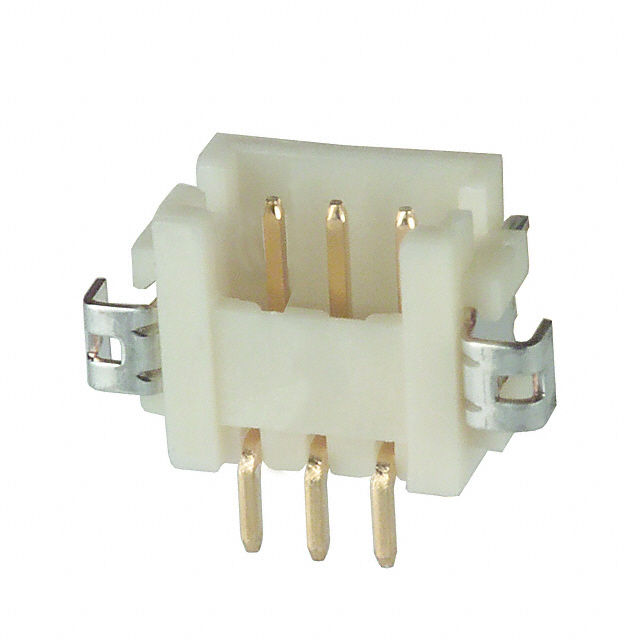

Hirose Electric Co Ltd DF13A-3P-1.25H(50)	0.142 in	3.6 mm	Male Pin	1	Gold	150 VDC	All	0.049 in	1.25 mm	8 µin	0.203 µm	85 °C	-35 °C	Brass	Shrouded - 4 Wall	Detent Lock		UL94 V-0	Square	Board to Cable/Wire	Right Angle Surface Mount	Header	Beige	Nylon Polyamide (PA)	Solder	Solder Retention

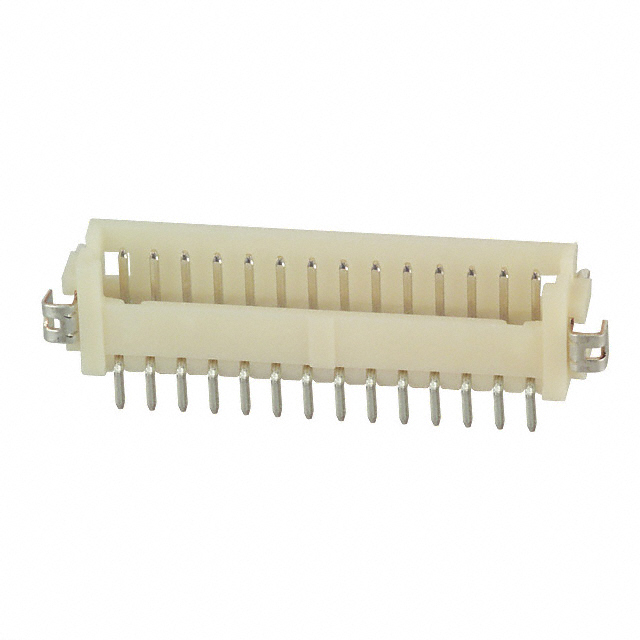

Hirose Electric Co Ltd DF13A-14P-1.25H(21)	0.142 in	3.6 mm	Male Pin	1		150 VDC	All	0.049 in	1.25 mm			85 °C	-35 °C	Brass	Shrouded - 4 Wall	Detent Lock	14	UL94 V-0	Square	Board to Cable/Wire	Right Angle Surface Mount	Header	Beige	Nylon Polyamide (PA)	Solder	Solder Retention	Tin

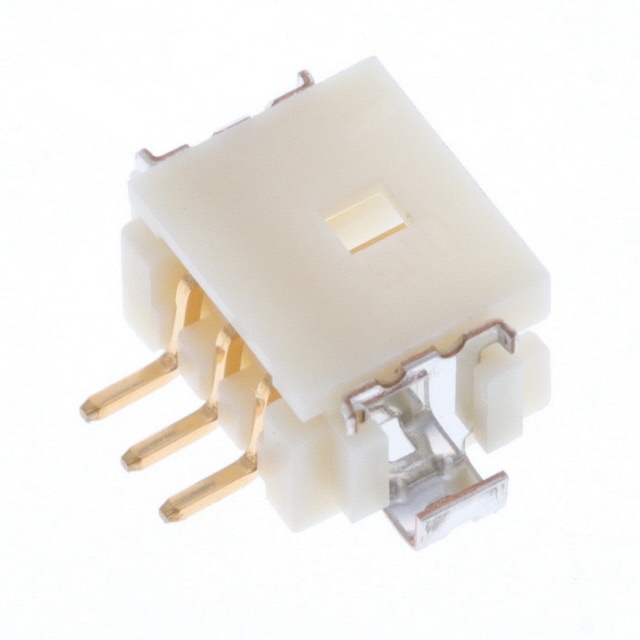

Hirose Electric Co Ltd DF13A-3P-1.25H(76)	0.142 in	3.6 mm	Male Pin	1	Gold	150 VDC	All	0.049 in	1.25 mm	8 µin	0.203 µm	85 °C	-35 °C	Brass	Shrouded - 4 Wall	Detent Lock		UL94 V-0	Square	Board to Cable/Wire	Right Angle Surface Mount	Header	Beige	Nylon Polyamide (PA)	Solder	Solder Retention	Gold	0.203 µm	8 µin
Hirose Electric Co Ltd DF13A-40DP-1.25V(82)	0.189 in	4.8 mm	Male Pin		Gold	150 VDC	All	0.049 in	1.25 mm	30 Áin	0.76 Ám	85 °C	-35 °C	Brass	Shrouded - 4 Wall	Detent Lock	40	UL94 V-0	Square	Board to Cable/Wire	Surface Mount	Header	Beige	Nylon Polyamide (PA)	Solder	Solder Retention	Tin-Copper	1 çm	39.4 çin	5.8 mm	1.25 mm	0.049 in	2.4 mm	0.094 in	2
Hirose Electric Co Ltd DF13A-8P-1.25H(90)

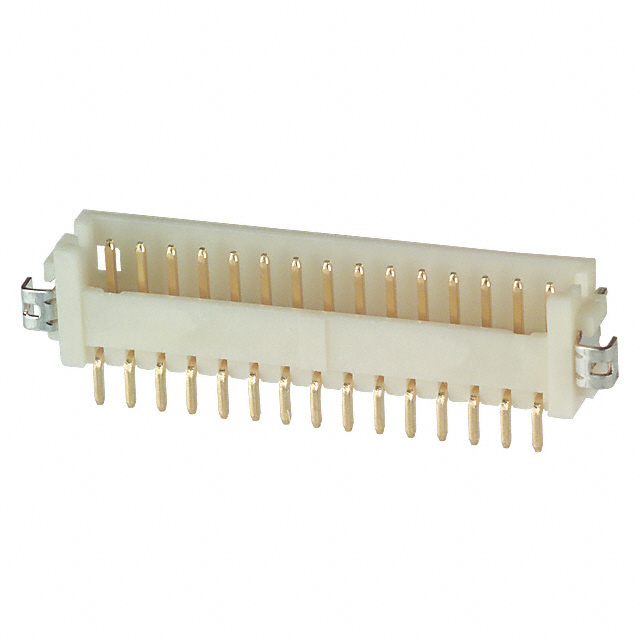

Hirose Electric Co Ltd DF13A-15P-1.25H(50)	0.142 in	3.6 mm	Male Pin	1	Gold	150 VDC	All	0.049 in	1.25 mm	8 µin	0.203 µm	85 °C	-35 °C	Brass	Shrouded - 4 Wall	Detent Lock	15	UL94 V-0	Square	Board to Cable/Wire	Right Angle Surface Mount	Header	Beige	Nylon Polyamide (PA)	Solder	Solder Retention
Hirose Electric Co Ltd DF13A-7P-1.25H(50)	0.142 in	3.6 mm	Male Pin	1	Gold	150 VDC	All	0.049 in	1.25 mm	8 µin	0.203 µm	85 °C	-35 °C	Brass	Shrouded - 4 Wall	Detent Lock	7	UL94 V-0	Square	Board to Cable/Wire	Right Angle Surface Mount	Header	Beige	Nylon Polyamide (PA)	Solder	Solder Retention
Hirose Electric Co Ltd DF13A-12P-1.25H(51)	0.142 in	3.6 mm	Male Pin	1	Gold	150 VDC	All	0.049 in	1.25 mm	8 µin	0.203 µm	85 °C	-35 °C	Brass	Shrouded - 4 Wall	Detent Lock	12	UL94 V-0	Square	Board to Cable/Wire	Right Angle Surface Mount	Header	Beige	Nylon Polyamide (PA)	Solder	Solder Retention
Hirose Electric Co Ltd DF13A-11P-1.25H(51)	0.142 in	3.6 mm	Male Pin	1	Gold	150 VDC	All	0.049 in	1.25 mm	8 µin	0.203 µm	85 °C	-35 °C	Brass	Shrouded - 4 Wall	Detent Lock	11	UL94 V-0	Square	Board to Cable/Wire	Right Angle Surface Mount	Header	Beige	Nylon Polyamide (PA)	Solder	Solder Retention
