100EPT20 Series

Catalog

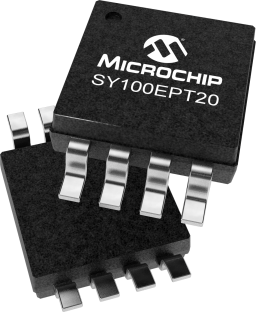

DIFFERENTIAL PECL TRANSLATOR, 1 INPUT, 600 PS, 2.97 V TO 5.5 V, 8 PINS, MSOP

Part	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Output Type	Package Name	Input Signal	Channel Type	Number of Circuits	Channels per Circuit	Output Signal	Translator Type	Package Width	Package Length
Microchip Technology SY100EPT20VKG	Surface Mount	85 °C	-40 °C	Differential	8-MSOP 8-TSSOP 8-MSOP	LVCMOS LVTTL	Unidirectional	1	1	LVPECL	Mixed Signal	3 mm	0.118 in
Microchip Technology SY100EPT20VZG-TR	Surface Mount	85 °C	-40 °C	Differential	8-SOIC	LVCMOS LVTTL	Unidirectional	1	1	LVPECL	Mixed Signal	3.9 mm	0.154 in
Microchip Technology SY100EPT20VZI	Surface Mount	85 °C	-40 °C	Differential	8-SOIC	LVCMOS LVTTL	Unidirectional	1	1	LVPECL	Mixed Signal	3.9 mm	0.154 in
Microchip Technology SY100EPT20VZI-TR	Surface Mount	85 °C	-40 °C	Differential	8-SOIC	LVCMOS LVTTL	Unidirectional	1	1	LVPECL	Mixed Signal	3.9 mm	0.154 in
Microchip Technology SY100EPT20VZG	Surface Mount	85 °C	-40 °C	Differential	8-SOIC	LVCMOS LVTTL	Unidirectional	1	1	LVPECL	Mixed Signal	3.9 mm	0.154 in
Microchip Technology SY100EPT20VKI	Surface Mount	85 °C	-40 °C	Differential	8-MSOP 8-TSSOP 8-MSOP	LVCMOS LVTTL	Unidirectional	1	1	LVPECL	Mixed Signal	3 mm	0.118 in
Microchip Technology SY100EPT20VKC	Surface Mount	85 °C	0 °C	Differential	8-MSOP 8-TSSOP 8-MSOP	LVCMOS LVTTL	Unidirectional	1	1	LVPECL	Mixed Signal	3 mm	0.118 in
Microchip Technology SY100EPT20VKG-TR	Surface Mount	85 °C	-40 °C	Differential	8-MSOP 8-TSSOP 8-MSOP	LVCMOS LVTTL	Unidirectional	1	1	LVPECL	Mixed Signal	3 mm	0.118 in

Catalog

Description

The SY100EPT20 is a TTL/CMOS to differential PECL translator. Capable of running from a 3.3 or 5V supply, the part can be used in either LVTTL/LVCMOS/ LVPECL or TTL/CMOS/PECL systems. The device only requires a single positive supply of 3.3V or 5V - no negative supply is required. The tiny 8-pin MSOP package and the low skew, dual gate design of the EPT20V makes it ideal for those applications where space, performance, and low power are at a premium.
