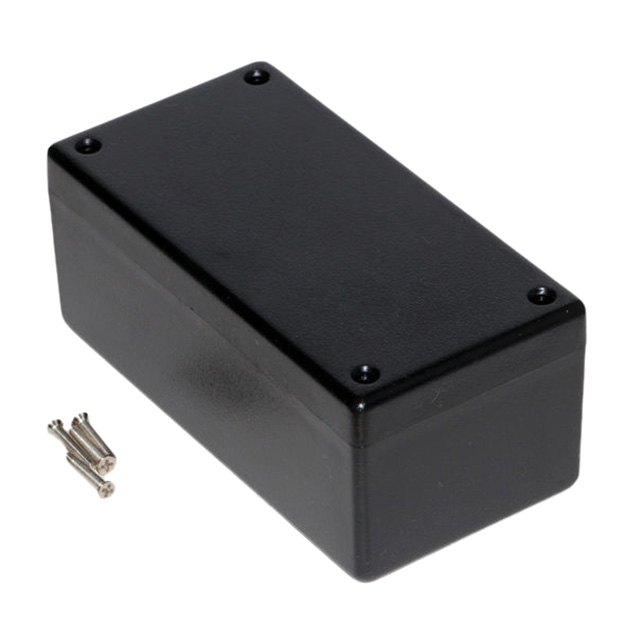

1594 Series

Catalog

BOX PLASTIC BLK 2.21"L X 2.21"W

Part	Area (L x W)	Area (L x W)	Weight	Weight	Material Flammability Rating	Container Type	Height [z]	Height [z]	Thickness	Thickness	Area (L x W)	Features	Design	Color	Ratings	Size / Dimension [y]	Size / Dimension	Size / Dimension [x]	Material	Size / Dimension [x]	Size / Dimension [y]	Weight [custom]	Weight [custom]	Area (L x W)	Weight [custom]	Weight [custom]	Accessory Type	Accessory Type	Accessory Type [x]	For Use With/Related Products

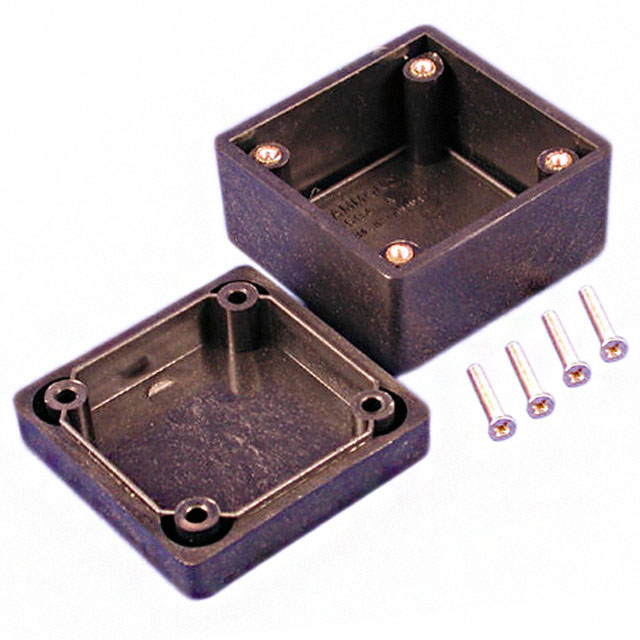

Hammond Manufacturing 1594RFIABK	4.86 in˛ 31.4 cm²	31.4 cm˛	226.8 g	0.5 lb	UL94 V-0	Box	40.08 mm	1.578 in	0.13 in	3.3 mm	4.86 in²	EMI Shielded Flame Retardant	Cover Included	Black	IP54	2.205 in	56 mm	2.205 in	ABS
Hammond Manufacturing 1594BWBK	45.4 cm²				UL94 V-0	Box	40.08 mm	1.578 in	0.13 in	3.3 mm	7.03 in²	Flame Retardant Watertight	Cover Included	Black	IP66	2.205 in		3.189 in	ABS	81 mm	56 mm

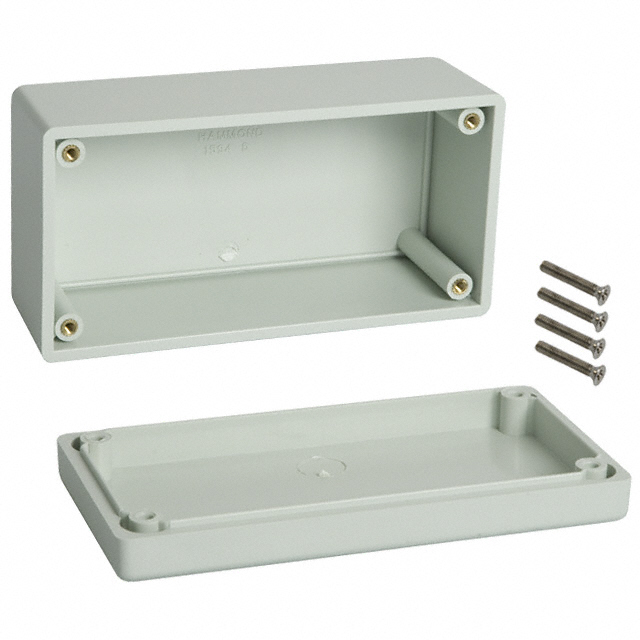

Hammond Manufacturing 1594DGY	87 cm˛				UL94 V-0	Box	55.09 mm	2.169 in	0.13 in	3.3 mm	13.5 in˛	Flame Retardant	Cover Included	Gray	IP54	2.61 in		5.177 in	ABS	131.5 mm	66.29 mm	0.306 lb	138.8 g

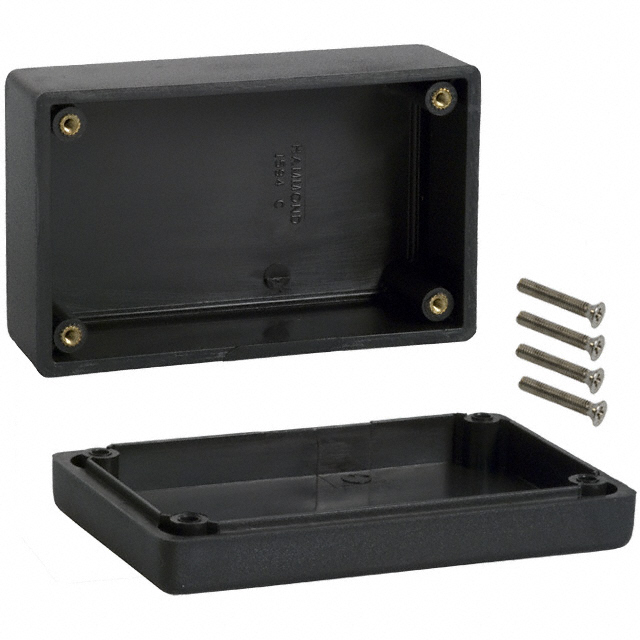

Hammond Manufacturing 1594CWBK	70 cm²				UL94 V-0	Box	45.39 mm	1.787 in	0.13 in	3.3 mm	10.9 in²	Flame Retardant Watertight	Cover Included	Black	IP66	2.598 in		4.193 in	ABS	106.5 mm	65.99 mm

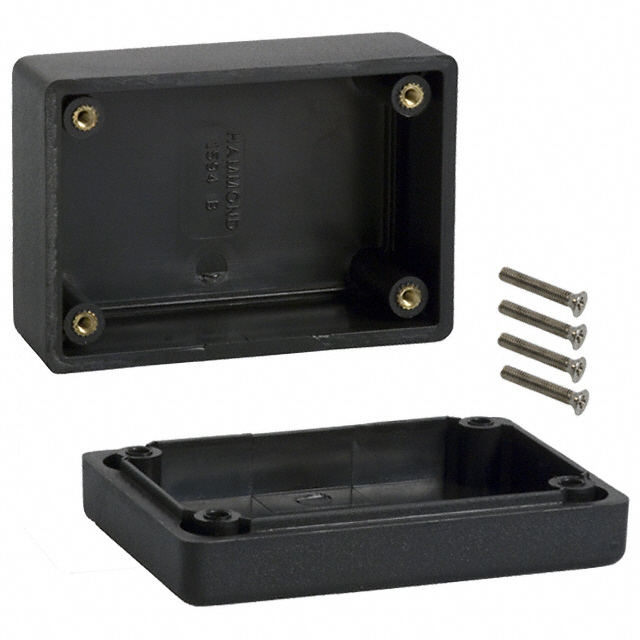

Hammond Manufacturing 1594BBK	45.4 cm²		76.66 g	0.169 lb	UL94 V-0	Box	40.08 mm	1.578 in	0.13 in	3.3 mm	7.03 in²	Flame Retardant	Cover Included	Black	IP54	2.205 in		3.189 in	ABS	81 mm	56 mm

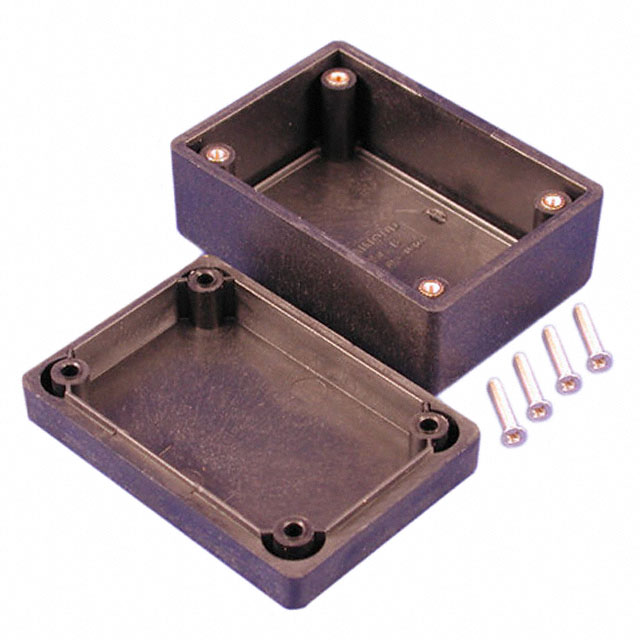

Hammond Manufacturing 1594RFIBBK	45.4 cm²		226.8 g	0.5 lb	UL94 V-0	Box	40.08 mm	1.578 in	0.13 in	3.3 mm	7.03 in²	EMI Shielded Flame Retardant	Cover Included	Black	IP54	2.205 in		3.189 in	ABS	81 mm	56 mm			7.03 in˛

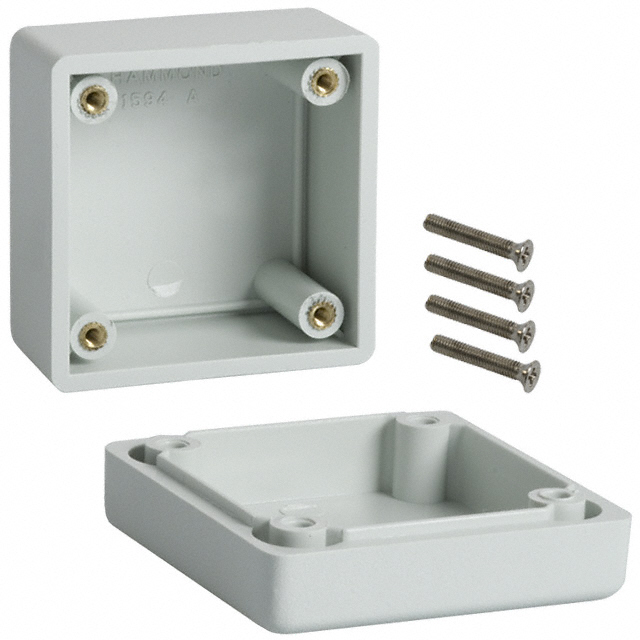

Hammond Manufacturing 1594AGY	31.4 cm²		56.7 g	0.125 lb	UL94 V-0	Box	40.08 mm	1.578 in	0.13 in	3.3 mm	4.86 in²	Flame Retardant	Cover Included	Gray	IP54	2.205 in	56 mm	2.205 in	ABS
Hammond Manufacturing 1594DSBK	87 cm˛					Box	55.09 mm	2.169 in	0.13 in	3.3 mm	13.5 in˛		Cover Included	Black	IP54	2.61 in		5.177 in	ABS	131.5 mm	66.29 mm				113.4 g	0.25 lbs

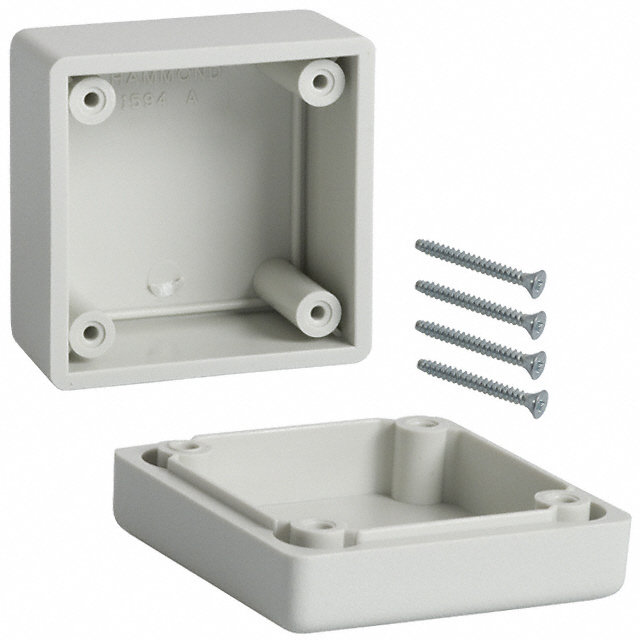

Hammond Manufacturing 1594ASGY	31.4 cm²					Box	40.08 mm	1.578 in	0.13 in	3.3 mm	4.86 in²		Cover Included	Gray	IP54	2.205 in	56 mm	2.205 in	ABS						49.44 g	0.109 lb

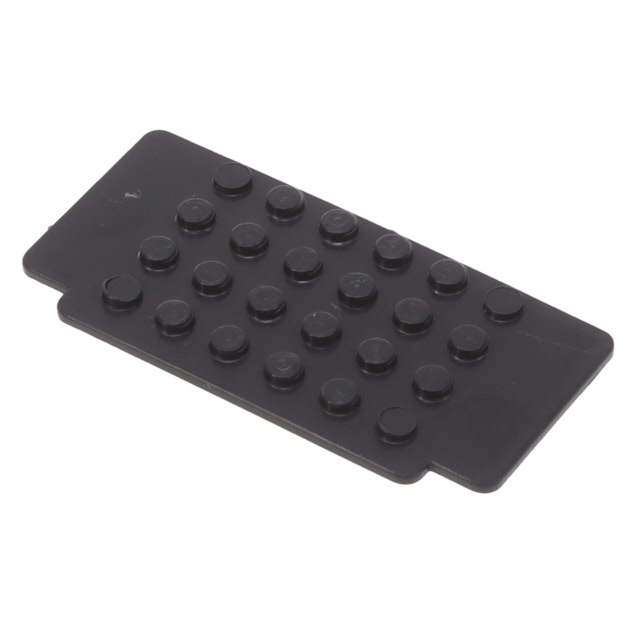

Hammond Manufacturing 1594AZ25																											Polystyrene Screw Mount	55.88 mm	2.2 in	1594ASGY
