DSC8001 Series

Catalog

UNPROG MEMS OSCILLATOR, -40C-105C, 25PPM 4 VDFN 5X7X0.9MM TUBE ROHS COMPLIANT: YES

Part	Current - Supply (Disable) (Max) [Max]	Type	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage - Supply [Max]	Voltage - Supply [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Available Frequency Range [Min]	Available Frequency Range [Max]	Frequency Stability	Programmable Type	Base Resonator	Ratings	Current - Supply (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Function	Mounting Type	Output	Frequency Stability (Total)

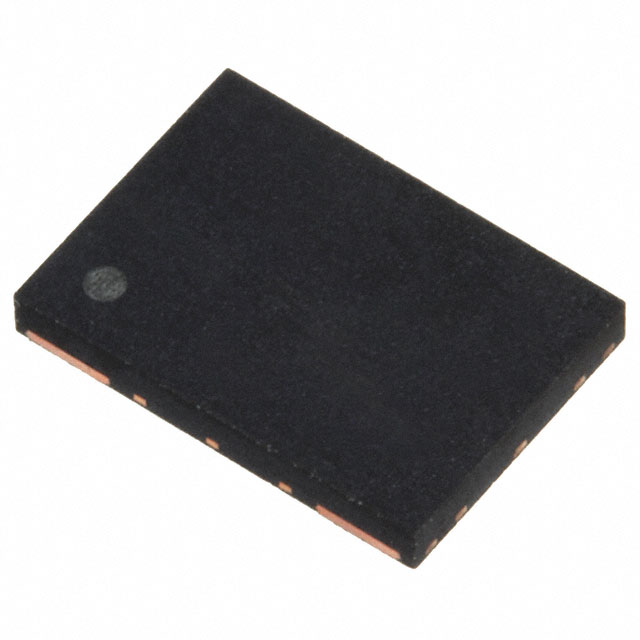

Microchip Technology DSC8001AL2	15 µA	XO (Standard)	4-SMD No Lead Exposed Pad	0.035 "	0.9 mm	3.3 V	1.8 V	7 mm	5 mm	0.276 "	0.197 "	1 MHz	150 MHz	25 ppm	Blank (User Must Program)	MEMS	AEC-Q100	12.2 mA	-40 °C	105 ░C	Standby	Surface Mount	CMOS
Microchip Technology DSC8001DI5T	15 µA	XO (Standard)	4-SMD No Lead	0.035 "	0.9 mm	3.3 V	1.8 V	2.5 mm	2 mm	0.098 "	0.079 in	1 MHz	150 MHz	10 ppm	Blank (User Must Program)	MEMS	AEC-Q100	12.2 mA	-40 °C	85 °C	Standby	Surface Mount	CMOS

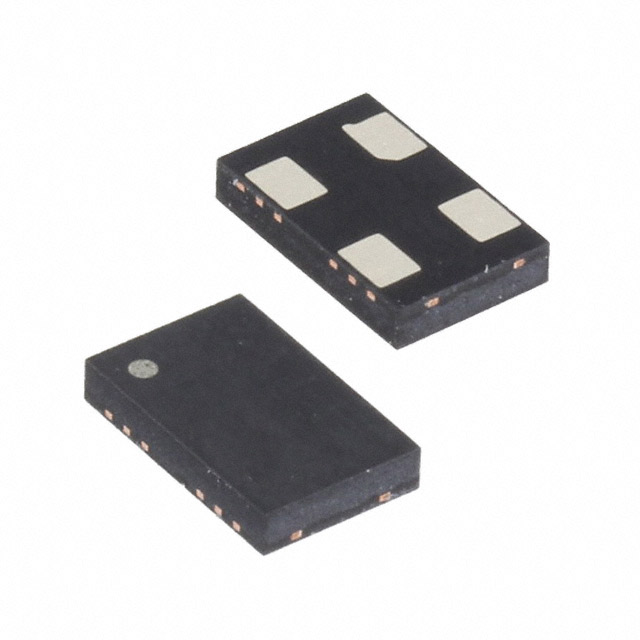

Microchip Technology DSC8001BL5	15 µA	XO (Standard)	4-SMD No Lead	0.035 "	0.9 mm	3.3 V	1.8 V	5 mm	3.2 mm	0.197 in	0.126 "	1 MHz	150 MHz		Blank (User Must Program)	MEMS	AEC-Q100	12.2 mA	-40 °C	105 ░C	Standby	Surface Mount	CMOS	10 ppm
Microchip Technology DSC8001CL5T	15 µA	XO (Standard)	4-SMD No Lead	0.035 "	0.9 mm	3.3 V	1.8 V	3.2 mm	2.5 mm	0.126 in	0.098 in	1 MHz	150 MHz	10 ppm	Blank (User Must Program)	MEMS	AEC-Q100	12.2 mA	-40 °C	105 ░C	Standby	Surface Mount	CMOS
Microchip Technology DSC8001AI1	15 µA	XO (Standard)	4-SMD No Lead	0.035 "	0.9 mm	3.3 V	1.8 V	7 mm	5 mm	0.276 "	0.197 "	1 MHz	150 MHz		Blank (User Must Program)	MEMS	AEC-Q100	12.2 mA	-40 °C	85 °C	Standby	Surface Mount	CMOS	50 ppm
Microchip Technology DSC8001BI5	15 µA	XO (Standard)	4-SMD No Lead	0.035 "	0.9 mm	3.3 V	1.8 V	5 mm	3.2 mm	0.197 in	0.126 "	1 MHz	150 MHz		Blank (User Must Program)	MEMS	AEC-Q100	12.2 mA	-40 °C	85 °C	Standby	Surface Mount	CMOS	10 ppm
Microchip Technology DSC8001CL2T	15 µA	XO (Standard)	4-SMD No Lead	0.035 "	0.9 mm	3.3 V	1.8 V	3.2 mm	2.5 mm	0.126 in	0.098 in	1 MHz	150 MHz	25 ppm	Blank (User Must Program)	MEMS	AEC-Q100	12.2 mA	-40 °C	105 ░C	Standby	Surface Mount	CMOS
Microchip Technology DSC8001CI1	15 µA	XO (Standard)	4-SMD No Lead	0.035 "	0.9 mm	3.3 V	1.8 V	3.2 mm	2.5 mm	0.126 in	0.098 in	1 MHz	150 MHz		Blank (User Must Program)	MEMS	AEC-Q100	12.2 mA	-40 °C	85 °C	Standby	Surface Mount	CMOS	50 ppm
Microchip Technology DSC8001DI5	15 µA	XO (Standard)	4-SMD No Lead	0.035 "	0.9 mm	3.3 V	1.8 V	2.5 mm	2 mm	0.098 "	0.079 in	1 MHz	150 MHz		Blank (User Must Program)	MEMS	AEC-Q100	12.2 mA	-40 °C	85 °C	Standby	Surface Mount	CMOS	10 ppm
Microchip Technology DSC8001AI5	15 µA	XO (Standard)	4-SMD No Lead	0.035 "	0.9 mm	3.3 V	1.8 V	7 mm	5 mm	0.276 "	0.197 "	1 MHz	150 MHz		Blank (User Must Program)	MEMS	AEC-Q100	12.2 mA	-40 °C	85 °C	Standby	Surface Mount	CMOS	10 ppm
