PIC18LC242 Series

Catalog

8 BIT MCU, PIC18 FAMILY PIC18CX SERIES MICROCONTROLLERS, PIC18, 40 MHZ, 16 KB, 28 PINS, SOIC

Part	Connectivity	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	RAM Size	Core Size	Supplier Device Package	Mounting Type	Oscillator Type	Speed	Data Converters [custom]	Data Converters [custom]	Peripherals	Core Processor	Package / Case	Package / Case [x]	Package / Case [y]	Operating Temperature [Max]	Operating Temperature [Min]	Program Memory Type	Program Memory Size	Number of I/O	Package / Case	Package / Case	Package / Case
Microchip Technology PIC18LC242-I/SO	I2C SPI UART/USART	2.5 V	5.5 V	512	8-Bit	28-SOIC	Surface Mount	External	40 MHz	5	10 b	Brown-out Detect/Reset LVD POR PWM WDT	PIC	28-SOIC	0.295 in	7.5 mm	85 °C	-40 °C	OTP	16 KB	22
Microchip Technology PIC18C242-I/SO	I2C SPI UART/USART	4.2 V	5.5 V	512	8-Bit	28-SOIC	Surface Mount	External	40 MHz	5	10 b	Brown-out Detect/Reset LVD POR PWM WDT	PIC	28-SOIC	0.295 in	7.5 mm	85 °C	-40 °C	OTP	16 KB	22
Microchip Technology PIC18C242-I/SP	I2C SPI UART/USART	4.2 V	5.5 V	512	8-Bit	28-SPDIP	Through Hole	External	40 MHz	5	10 b	Brown-out Detect/Reset LVD POR PWM WDT	PIC	28-DIP			85 °C	-40 °C	OTP	16 KB	22	0.3 in	7.62 mm
Microchip Technology PIC18C242T-E/SO	I2C SPI UART/USART	4.2 V	5.5 V	512	8-Bit	28-SOIC	Surface Mount	External	40 MHz	5	10 b	Brown-out Detect/Reset LVD POR PWM WDT	PIC	28-SOIC	0.295 in	7.5 mm	125 °C	-40 °C	OTP	16 KB	22
Microchip Technology PIC18C242T-I/SO	I2C SPI UART/USART	4.2 V	5.5 V	512	8-Bit	28-SOIC	Surface Mount	External	40 MHz	5	10 b	Brown-out Detect/Reset LVD POR PWM WDT	PIC	28-SOIC	0.295 in	7.5 mm	85 °C	-40 °C	OTP	16 KB	22

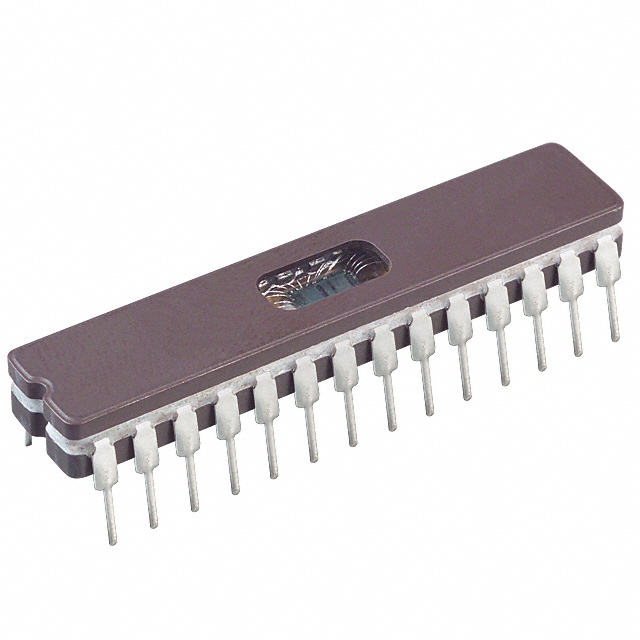

Microchip Technology PIC18C242/JW	I2C SPI UART/USART	4.2 V	5.5 V	512	8-Bit	28-CERDIP	Through Hole	External	40 MHz	5	10 b	Brown-out Detect/Reset LVD POR PWM WDT	PIC	28-CDIP			70 °C	0 °C	EPROM UV	16 KB	22	7.62 mm		0.3 in

Catalog

Key Features

- Programmable Brown-Out, Programmable low voltage detect, Phase-Locked Loop (PLL), 8x8 Multiplier, 2 Capture/Compare

Description

A newer device is available. Please consider PIC18F242.This powerful 10 MIPS (100 nanosecond instruction execution) yet easy-to-program (only 77 single word instructions) CMOS OTP-based 8-bit microcontroller packs Microchip's powerful PIC® architecture into an 28-pin package and is upwards compatible with the PIC16C5X, PIC12CXXX, PIC16CXX and PIC17CXX devices and thus providing a seamless migration path of software code to higher levels of hardware integration. PIC18C242 features a 'C' compiler friendly development environment, 2 capture/compare/PWM functions, 5 channels of 10-bit Analog-to-Digital (A/D) converter, the synchronous serial port can be configured as either 3-wire Serial Peripheral Interface (SPI™) or the 2-wire Inter-Integrated Circuit (I²C™) bus and Addressable Universal Asynchronous Receiver Transmitter (AUSART). All of these features make it ideal for manufacturing equipment, instrumentation and monitoring, data acquisition, power conditioning, environmental monitoring, telecom and consumer audio/video applications.
