09225VE Series
Manufacturer: NMB TECHNOLOGIES
Beta
⌘K

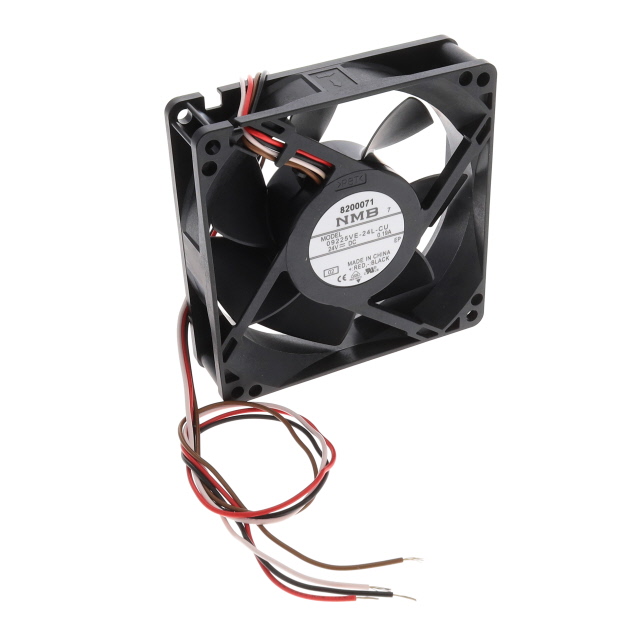

FAN AXIAL 92X25MM 24VDC WIRE
| Part | Material - Frame | Material - Blade | Voltage Range [Max] | Voltage Range [Min] | Lifetime @ Temp. | Current Rating (Amps) | Power (Watts) | RPM | Width [y] | Noise | Size / Dimension [y] | Size / Dimension [x] | Voltage - Rated | Approval Agency | Operating Temperature [Max] | Operating Temperature [Min] | Fan Type | Static Pressure | Static Pressure | Features | Air Flow | Air Flow | Bearing Type | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NMB TECHNOLOGIES | Plastic | Plastic | 27.6 VDC | 14 | 100000 Hrs | 140 mA | 3.36 W | 3700 RPM | 25 mm | 38.5 dB | 92 mm | 92 mm | 24 VDC | CE cULus VDE | 70 °C | -10 °C | Tubeaxial | 0.28 in H2O | 69.7 Pa | Auto Restart PWM Control Speed Sensor (Tach) | 1.78 mł/min | 63.5 CFM | Ball | 4 Wire Leads |
