BSC010 Series
Manufacturer: INFINEON
Beta
⌘K

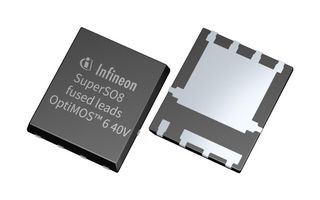

OPTIMOS™ 6 N-CHANNEL POWER MOSFET 40 V ; SUPERSO8 5X6 PACKAGE; 1 MOHM;
| Part | Vgs(th) (Max) @ Id | Rds On (Max) @ Id, Vgs | Gate Charge (Qg) (Max) @ Vgs | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Current - Continuous Drain (Id) @ 25°C | Power Dissipation (Max) | Supplier Device Package | Drive Voltage (Max Rds On, Min Rds On) | FET Type | Drain to Source Voltage (Vdss) | Mounting Type | Input Capacitance (Ciss) (Max) @ Vds [Max] | Technology | Vgs (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 2.3 V | 1 mOhm | 67 nC | 8-PowerTDFN | 175 °C | -55 °C | 40 A 100 A | 3 W 150 W | PG-TDSON-8-6 | 4.5 V 10 V | N-Channel | 40 V | Surface Mount | 4600 pF | MOSFET (Metal Oxide) | 20 V |
 INFINEON | 2 V | 1 mOhm | 64 nC | 8-PowerTDFN | 150 °C | -55 °C | 39 A 100 A | 2.5 W 96 W | PG-TDSON-8-7 | 4.5 V 10 V | N-Channel | 25 V | Surface Mount | 4700 pF | MOSFET (Metal Oxide) | 20 V |
INFINEON | 2 V | 1.05 mOhm | 59 nC | 8-PowerTDFN | 38 A 100 A | 2.5 W 96 W | PG-TDSON-8-7 | 4.5 V 10 V | N-Channel | 25 V | Surface Mount | 4200 pF | MOSFET (Metal Oxide) | 20 V |
