MC34064 Series

Voltage Supervisor, Undervoltage Sensing Circuit

Catalog

Voltage Supervisor, Undervoltage Sensing Circuit

Part	Output	Operating Temperature [Max]	Package / Case	Package / Case [custom]	Package / Case	Voltage - Threshold	Supplier Device Package	Reset	Type	Number of Voltages Monitored	Mounting Type	Supplier Device Package	Package / Case [y]	Package / Case [x]
ON Semiconductor MC34064DM-5R2G	Open Drain or Open Collector	70 °C	8-MSOP 8-TSSOP	0.118 in	3 mm	4.6 V	8-MSOP	Active Low	Simple Reset/Power-On Reset	1	Surface Mount
ON Semiconductor MC34064P-5RM	Open Drain or Open Collector	70 °C	Formed Leads TO-226-3 TO-92-3 Long Body			4.6 V	TO-92	Active Low	Simple Reset/Power-On Reset	1	Through Hole	TO-226

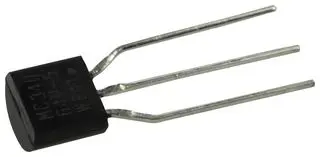

ON Semiconductor MC34064P-5RAG	Open Drain or Open Collector	70 °C	Formed Leads TO-226-3 TO-92-3 Long Body			4.6 V	TO-92	Active Low	Simple Reset/Power-On Reset	1	Through Hole	TO-226
ON Semiconductor MC34064SN-5T1	Open Drain or Open Collector	70 °C	SOT-23-5 Thin TSOT-23-5			4.6 V	5-TSOP	Active Low	Simple Reset/Power-On Reset	1	Surface Mount
ON Semiconductor MC34064D-5R2G	Open Drain or Open Collector	70 °C	8-SOIC			4.6 V	8-SOIC	Active Low	Simple Reset/Power-On Reset	1	Surface Mount		3.9 mm	0.154 in
ON Semiconductor MC34064P-5RMG	Open Drain or Open Collector	70 °C	Formed Leads TO-226-3 TO-92-3 Long Body			4.6 V	TO-92	Active Low	Simple Reset/Power-On Reset	1	Through Hole	TO-226
ON Semiconductor MC34064P-005	Open Drain or Open Collector	70 °C	TO-226-3 TO-92-3 Long Body			4.6 V	TO-92	Active Low	Simple Reset/Power-On Reset	1	Through Hole	TO-226

Catalog

Voltage Supervisor, Undervoltage Sensing Circuit

Key Features

• Trimmed-In-Package Temperature Compensated Reference

• Comparator Threshold of 4.6 V at 25° C

• Precise Comparator Thresholds Guaranteed Over Temperature

• Comparator Hysteresis Prevents Erratic Reset

• Reset Output Capable of Sinking in Excess of 10 mA

• Internal Clamp Diode for Discharging Delay Capacitor

• Guaranteed Reset Operation with 1.0 V Input

• Low Standby Current

• Economical TO-226AA, SO-8, Micro-8 and SOT-23/TSOP-5 Surface Mount Packages

• Pb-Free Packages are Available

Description

The MC33064/MC34064 is an undervoltage sensing circuit specifically designed for use as a reset controller in microprocessor-based systems. It offers the designer an economical solution for low voltagedetection with a single external resistor. The MC33064/MC34064 features a trimmed-in-package bandgap reference, and a comparator with precise thresholds and built-in hysteresis to prevent erratic reset operation. The open collector reset output is capable of sinking in excess of 10 mA, and operation is guaranteed down to 1.0 V input with low standby current. The MC devices are packaged in 3-pinTO-226AA, 8-pin SO-8,Micro-8 and 5pin SOT-23/TSOP-5 surface mount packages. The NCV device is packaged in SO-8 and TO-226AA.Applications include direct monitoring of the 5.0 V MPU/logic power supply used in appliance, automotive, consumer and industrial equipment.
