90147 Series

C-Grid III PC Board Connector, Single Row, Vertical, 6 Circuits, Gold (Au) Plating

Manufacturer: Molex

Catalog

C-Grid III PC Board Connector, Single Row, Vertical, 6 Circuits, Gold (Au) Plating

Part	Insulation Material	Contact Material	Applications	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Connector Type	Contact Type	Voltage Rating	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Termination	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Number of Rows	Current Rating (Amps)	Number of Positions
Molex 901471214

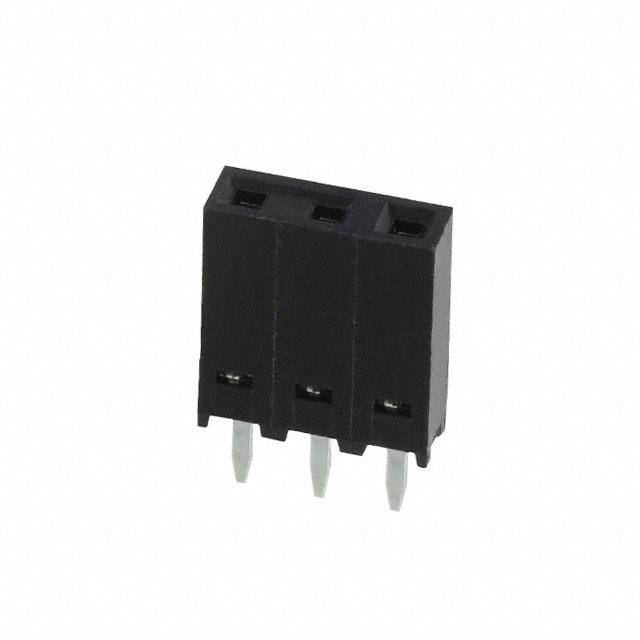

Molex 0901471103	Polyester Glass Filled	Phosphor Bronze	Automotive General Purpose Lighting Medical Telecommunications	Square	40 Áin	1.02 Ám	Black	Receptacle	Female Socket	350 VDC	All	-55 C	105 ░C	Tin	Push-Pull	1.02 µm	40 µin	Through Hole	Solder	0.335 "	8.51 mm	0.1 "	2.54 mm	0.114 in	2.9 mm	1	3 A
Molex 901471132

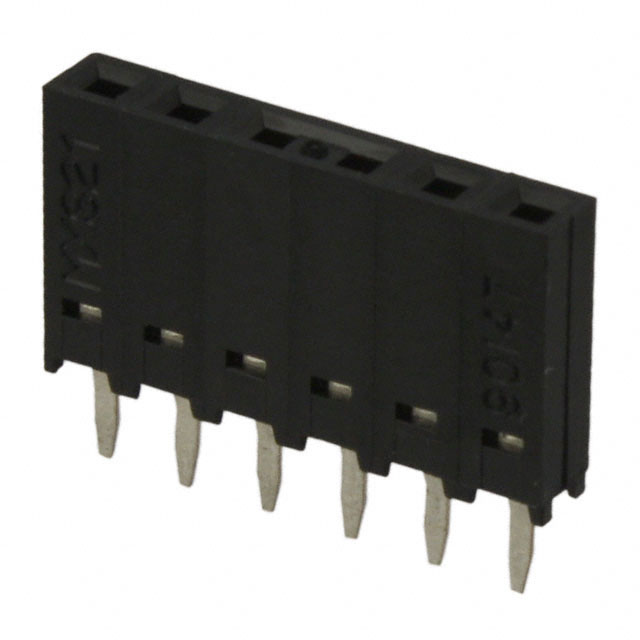

Molex 0901471106	Polyester Glass Filled	Phosphor Bronze	Automotive General Purpose Lighting Medical Telecommunications	Square	40 Áin	1.02 Ám	Black	Receptacle	Female Socket	350 VDC	All	-55 C	105 ░C	Tin	Push-Pull	1.02 µm	40 µin	Through Hole	Solder	0.335 "	8.51 mm	0.1 "	2.54 mm	0.114 in	2.9 mm	1	3 A	6
Molex 901471204

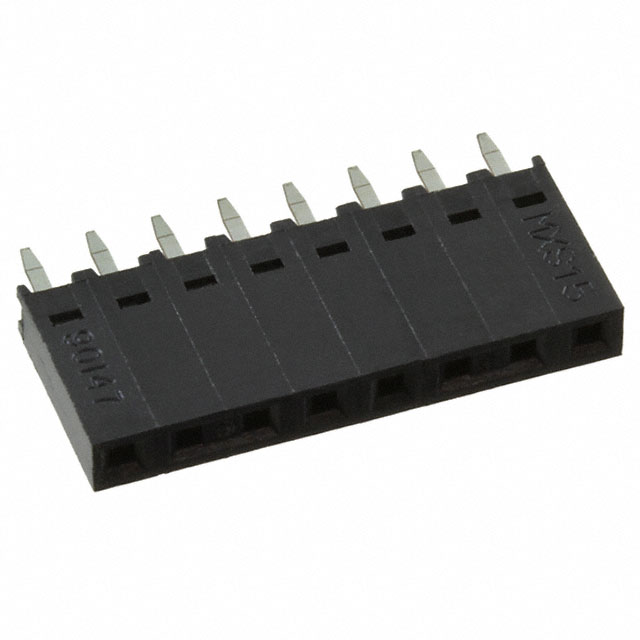

Molex 0901471108	Polyester Glass Filled	Phosphor Bronze	Automotive General Purpose Lighting Medical Telecommunications	Square	40 Áin	1.02 Ám	Black	Receptacle	Female Socket	350 VDC	All	-55 C	105 ░C	Tin	Push-Pull	1.02 µm	40 µin	Through Hole	Solder	0.335 "	8.51 mm	0.1 "	2.54 mm	0.114 in	2.9 mm	1	3 A	8

C-Grid III PC Board Connector, Single Row, Vertical, 6 Circuits, Gold (Au) Plating
